VOLTACON LED 2D with Built in sensor and dimming function
VOLTACON LED 2D with Built in sensor and dimming functionVOLTACON LED 2D with Built in sensor and dimming function

LED 2D Lamp 12w with microwave sensor on/off and dimmable

Ref: LED-2D012-4P-MA

£26.00

Price inc VAT

12w 2D LED, equivalent to 28W, on/off and dimming corridor function

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £25.22 Save 3%
12 Items £24.44 Save 6%
24 Items £23.92 Save 8%
Description
Specification
Downloads
Description

Features with microwave motion sensor & day light photocell

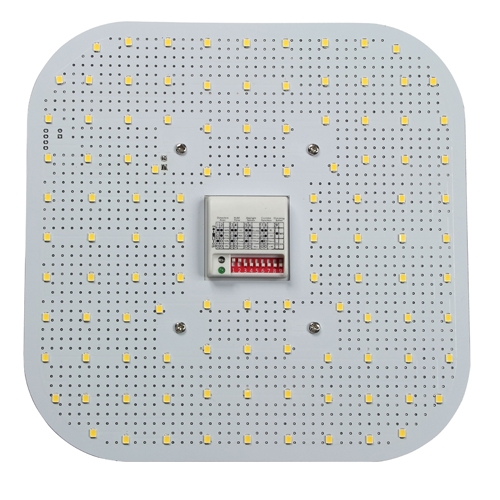

The new 2D lamp features Printed Circuit Board with thermal vias (multiple conductive holes on board) which carry away the heat from LED chips.

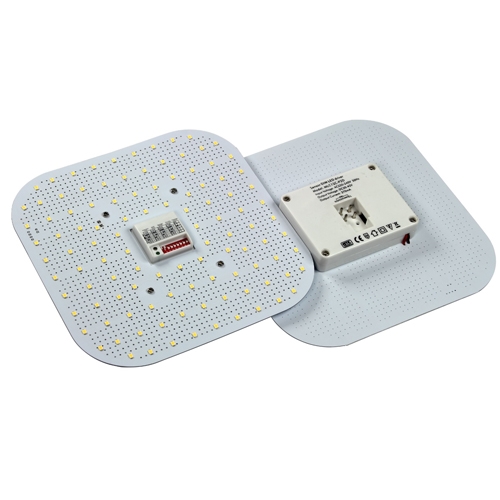

 The 2D microwave sensor (built-in the housing of the lamp) offers three functions: on/ff, 2 step dimming and 3-step dimming.

Unique Advantages

  • On/off function
  • Dimming corridor function
  • Photocell-Daylight Sensor
  • Directly connected to the mains
  • Built in emergency socket

Product Features

  • High sensitivity sensor that receives human movement and switches the light on and off automatically.
  • Save energy up to 90% comparing with traditional fluorescent 2D fittings.
  • 50,000 hour expected lifespan
  • Lumen maintenance 80% after 50,000h
  • Adjustable settings (daylight sensor, distance, turn on time)
  • Integrated day light sensor.

Download the data sheet here

For Indoor and Outdoor 2D Fittings please follow the link


Sensor Settings

Corridor Function (Stand-by Period)

  • 0s, 30s , 10min or permanently on

Diming Level (Stand-by Period)

  • 35% dimming
  • 50% dimming

 /live/pages/settings.gif

Available 2D LED luminaires  from Ledison Lighting , please click here: VOLTAFIT LED Fitting

Specification

Specifications

Fitting:

2D/4pin

Luminous flux:

1050lm

Wattage (rated):

12 Watt

Color Rendering index:

>80

Voltage:

100-265Volt

Typical efficiency:

85lm/W

Line frequency:

50/60Hz

Beam Angle:

120deg.

Average lifetime:

50,000 hours

Current (Amps)

80mA

Color Temperature:



Dimensions

17cm x 3.0 x 17cm

Warm white:

2700-3200K

Power Factor

0.95

Natural white:

4000-5000K

Dimmable

Yes with SensDIM

Cool white:

5500-6400K

Warranty:

5 years

Operating Temp:

-20 OC to 45 OC

Certification:

TUV, ROHS Compliant, CE, UL

Downloads

Technical Manual

2D LED lamp built in sensor

2D LED lamp built in sensor

2D LED with Microwave Sensor-1pages-2.5MB

Download

*
