LED Gear Tray 18Watt - Standard ON/OFF
Ref: 2D01TK-16F1£24.99
Price inc VAT
| Bulk Savings £££ | ||
|---|---|---|
| # Items | Our Price | Savings |
| 6 Items | £24.24 | Save 3% |
| 12 Items | £23.49 | Save 6% |
| 24 Items | £22.99 | Save 8% |

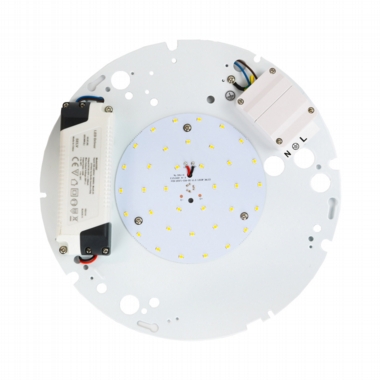

LED Gear Tray with integrated power supply - 16Watt
This is another retrofit product that is designed and developed exclusively by VOLTACON. The gear trays offer incredible flexibility to lighting designer and electricians. The LED trays can be installed in any round ceiling or wall light that was previously fitted with fluorescent 2D lamp.

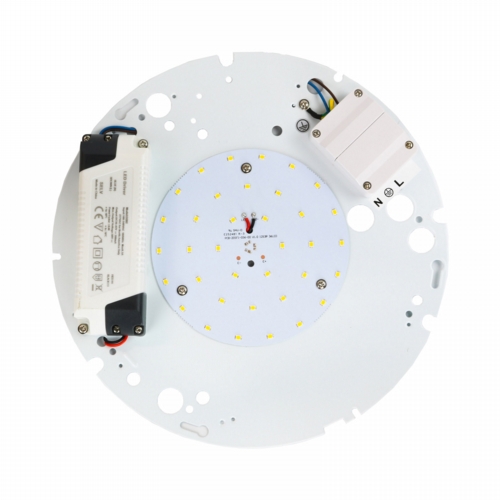

A small but poweful LED driver is mounted on the metalic tray, there is a fully insulated juction box for safe connection to the mains voltage, the current version has a three way power block for switched live, neutral and earth.
Electrical Specifications
|
Fitting: |
2D/4pin |
Luminous flux: |
1600lm |
|
Wattage (rated): |
18 Watt |
Color Rendering index: |
>80 |
|
Voltage: |
100-265Volt |
Typical efficiency: |
100lm/W |
|
Line frequency: |
50/60Hz |
Beam Angle: |
120deg. |
|
Average lifetime: |
50,000 hours |
Current (Amps) |
250mA |
|
Color Temperature: |
|
Dimensions |
262mm diameter |
|
Warm white: |
2700K - 1400lumen |
Power Factor |
0.95 |
|
Natural white: |
4000K - 1500lumen |
Dimmable |
NO |
|
Cool white: |
6000K - 1600lumen |
Warranty: |
5 years |
|
Operating Temp: |
-20 OC to 45 OC |
Certification: |
TUV, ROHS Compliant, CE, UL |
Dimensions and Layout
Technical Manual
