Replaces38WCFL

LED 2D 16W 4pin made by Voltacon Lighting

LED 2D Lamp 16watt replaces 36W CFL

Ref: LED-2D016-4P-X

£19.50

Price inc VAT

Bulk Savings £££
# Items	Our Price	Savings
6 Items	£18.92	Save 3%
12 Items	£18.33	Save 6%
24 Items	£17.94	Save 8%

Description

Specification

Downloads

Description

LED 2D tray lamp 16watt with 4pin base

Voltacon LED 2D is an environmentally friendly replacement for your old fluorescent 2D (DD) 4 PIN lamps, saving you 70% in energy usage.

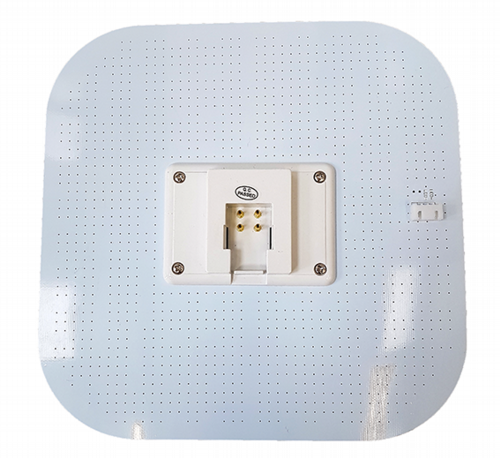

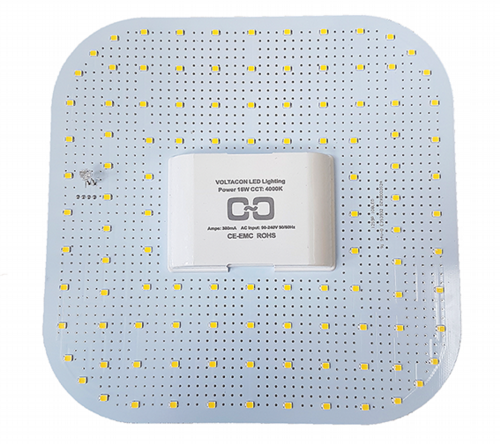

Manufactured with a perforated printed circuit board (PCB) the LED 2D lamp has an improved heat dissipation that prolongs the life of the lamp for 50,000 hours.

The 4pin base on the Voltacon LED 2D can be connected directly to the main electricity supply and is suitable for a global market due to supporting a wide voltage range (100 - 240 VAC).

Adjustable colour temperatures ( warm white, natural, and cool white)
Emergency conversion pack to meet building regulations safety standard
Integrated microwave sensor

Product Features

Save energy up to 85% comparing with traditional fluorescent 2D fittings.
Long Life of 50000h, 10 times longer than fluorescent 2D lamps.
GR8/10-Q with 4 pin
Built-in LED and socket for use with Emergency pack
Lumen maintenance 80% after 50,000h
Instant start up

LED Chips: SMD2835 (LM80, Lumen Maintenance factor)

Specification

Fitting:	2D/4pin	Luminous flux:	1510lm (CW)
Wattage (rated):	16 Watt	Color Rendering index:	>80
Voltage:	100-265Volt	Typical efficiency:	85lm/W
Line frequency:	50/60Hz	Beam Angle:	120deg.
Average lifetime:	50,000 hours	Current (Amps)	80mA
Color Temperature:		Dimensions	19.3cm x 3.2 x 19.3cm
Warm white:	2700-3200K	Power Factor	0.95
Natural white:	4000-5000K	Dimmable	NO
Cool white:	5500-7000K	Warranty:	5 years
Operating Temp:	-20 ^OC to 45 ^OC	Certification:	TUV, ROHS Compliant, CE, UL
