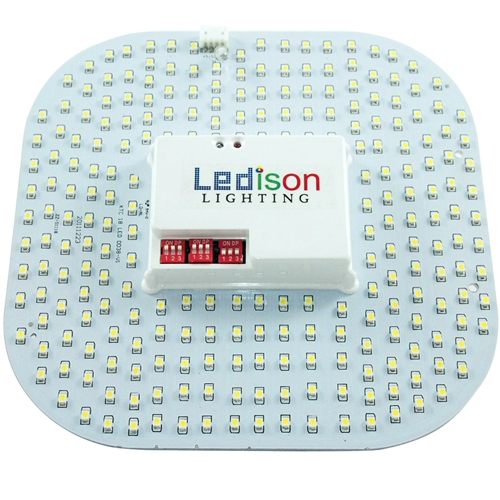

LED 2D Lamp 16w with microwave sensor
Ref: LED-2D016-4P-MA£24.90
Price inc VAT
Bulk Savings £££ | ||
---|---|---|
# Items | Our Price | Savings |
6 Items | £24.15 | Save 3% |
12 Items | £23.41 | Save 6% |
24 Items | £22.91 | Save 8% |
Features with microwave motion sensor & day light photocell
The external antenna has an embedded day-light sensor that can be installed on the outer surface of any light fitting. The sensor body and the drivers can be mounted behind the panel. 2D LED lamps with integrated sensor are more susceptible to electromagnetic interference. If the LED lamp fails, the whole unit (lamp+sensor) needs to be replaced. Using Ledison's cutting edge technology all the aforementioned problems are eliminated.
Product Features
- High sensitivity sensor that receives human movement and switches the light on and off automatically.
- Antenna head is separated from the sensor body
- Particularly designed for light fittings with limited space
- Save energy up to 65% comparing with traditional fluorescent 2D fittings.
- Long Life of 50000h, 10 times longer than fluorescent 2D lamps.
- Standard shape for direct replacement of fluorescent DD lamps.
- Lumen maintenance 80% after 35,000h
- Adjustable time delay and sensor sensitivity
- on/off function,dimming function with HYTRONIK sensorDIM control gear
- Built-in day light sensor.
Specifications
Fitting: |
2D/4pin |
Luminous flux: |
1530lm |
Wattage (rated): |
16 Watt |
Color Rendering index: |
>80 |
Voltage: |
100-265Volt |
Typical efficiency: |
85lm/W |
Line frequency: |
50/60Hz |
Beam Angle: |
120deg. |
Average lifetime: |
50,000 hours |
Current (Amps) |
80mA |
Color Temperature: |
|
Dimensions |
19.3cm x 3.2 x 19.3cm |
Warm white: |
2700-3200K |
Power Factor |
0.95 |
Natural white: |
4000-5000K |
Dimmable |
Yes with SensDIM |
Cool white: |
5500-6400K |
Warranty: |
5 years |
Operating Temp: |
-20 OC to 45 OC |
Certification: |
TUV, ROHS Compliant, CE, UL |
Sensor Settings
The instructions manual is available to download here
Available 2D LED luminaires from Ledison Lighting , please click here: VOLTAFIT LED Fitting
