LED 2D Lamp 12wat replaces 28W CFL
Ref: LED-2D12-4P-X£17.50
Price inc VAT
Bulk Savings £££ | ||
---|---|---|
# Items | Our Price | Savings |
6 Items | £16.98 | Save 3% |
12 Items | £16.45 | Save 6% |
24 Items | £16.10 | Save 8% |

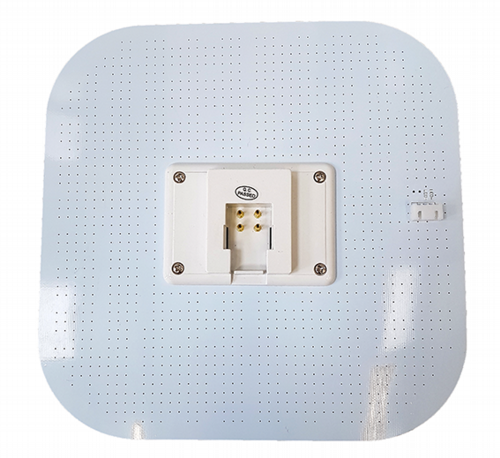

LED 2D 12W tray lamp with 4-pin base
The Voltacon LED 2D trays are the perfect long-lasting environmentally friendly solution to replace your traditional fluorescent 2D (DD) 4 PIN lamps.

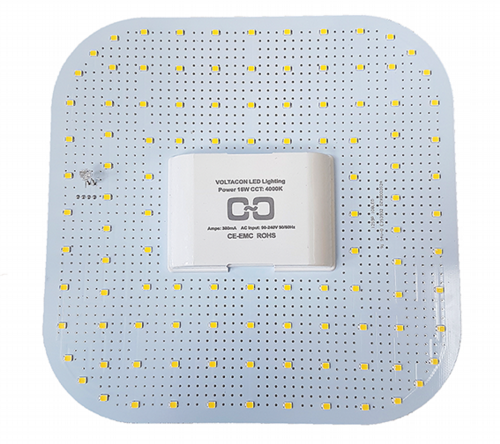

The perforated printed circuit board (PCB) allows for an improved heat dissipation to prolong the lifespan of the lamp for over 50,000 hours, allowing you to enjoy energy savings for longer.
The LED 2D trays lamps are compatible with all equivalent fittings for a smooth transition from fluorescent to LED or you can find the perfect LED ready fittings on our website.
Notice: The 2D LED gear tray is compatible with the existing 4pin holders of fluorescent lamps. The LED 2D is powered directly from the mains voltage (220-240Vac or 110VAC)
- 5-year warranty.
- Range of colour temperatures
- Adjustable integrated microwave sensor
- Meets building regulation safety standards
Product Features
- Save energy up to 80% comparing with traditional fluorescent 2D fittings.
- Life Span 50,000 hours
- GR8/10-Q base (4pin)
- Emergency Socket and LED charging indicator
- Lumen maintenance 80% after 50,000h
- Instant start up
- Ultra bright LED chips with SMD2835 technology
For Indoor and Outdoor 2D Fittings please follow the link
Available 2D LED luminaires from Ledison Lighting , please click here: VOLTAFIT LED Fitting

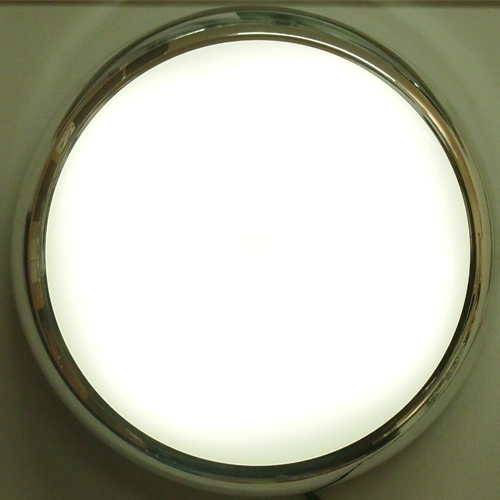

List of compatible Fittings
You can now select one of the following fittings which are compatible and prewired for all the 2D LED lamps (standard & Sensor)
Voltafit 2D LED Ready Bulkhead (MAX)
Voltafit 2D LED Ready Bulkhead POLO
Voltafit 2D LED Ready IP65 Pulsar
Specification
Fitting: |
2D/4pin |
Luminous flux: |
1050lm |
Wattage (rated): |
12 Watt |
Color Rendering index: |
>80 |
Voltage: |
100-265Volt |
Typical efficiency: |
85lm/W |
Line frequency: |
50/60Hz |
Beam Angle: |
120deg. |
Average lifetime: |
50,000 hours |
Current (Amps) |
80mA |
Color Temperature: |
|
Dimensions |
19.3cm x 3.2 x 19.3cm |
Warm white: |
2700K |
Power Factor |
0.95 |
Natural white: |
4000K |
Dimmable |
NO |
Cool white: |
6000K |
Warranty: |
5 years |
Operating Temp: |
-20 OC to 45 OC |
Certification: |
TUV, ROHS Compliant, CE, UL |
Technical Manual
