Ledison Round Down Lighter Panel 8W

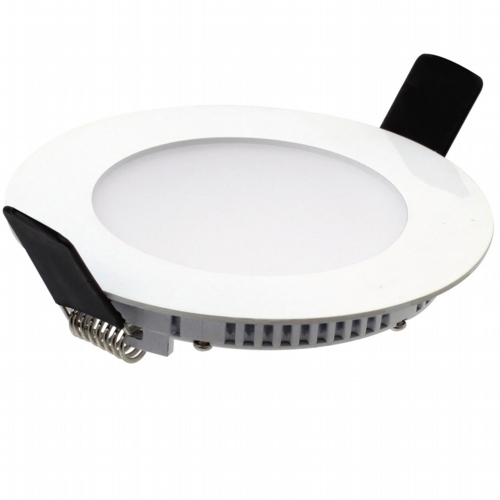

LED ROUND PANEL LIGHT 8W RECESSED DOWNLIGHT

Ref: GL-DL04

£14.90

Price inc VAT

Omikron Recessed LED Panel 4 inches, with Dimmable Options and Three Colour Temperatures.

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £14.45 Save 3%
12 Items £14.01 Save 6%
24 Items £13.71 Save 8%
Specification
Downloads
Specification

Technical Specifications - OMIKRON LED RECESSED PANEL 8Watt

Type GL-DL04-WW  GL-DL04-NW  GL-DL04-CW
Energy Used                                              8W
Rated Life                                        50,000 Hours
Input Voltage                                       100-240V AC
Power Factor (PF)                          0.95 @120V AC, 0.94@240V AC
CCT(color)           3000K         4000K         5700K
Luminous Flux           680lm         720lm         800lm
Luminous Efficacy           85lm/W         90lm/W        100lm/W
CRI (Typ.)              80             80           80
Beam Angle                                        120°
Dimension                                   120 x 12mm
IP Rating                                       IP40
Operation Temperature                                -20°C ~ +40°C
Net. Weight                               235g (with driver)
Package                                  20 PCS / Carton




For AC Triac Dimmable the same electrical specifications are applicable. The LED  drivers are
GP-TS10P-30L (for AC-TRIAC 100 -120V AC)
GP-TS10P-30H (for AC-TRIAC 200- 240V AC)

For 1-10V  Dimmable the same electrical specifications are applicable. The LED  drivers are
GP-HS10P-24CA1 (for 1-10V/PWM/Resistor)
(Driver Output : Constant Current 350mA, 24V)

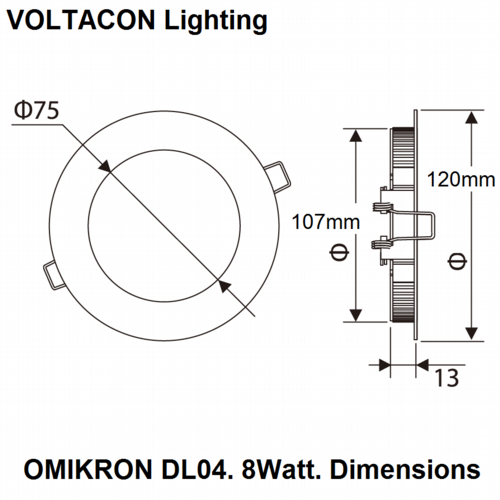

Dimensions



Downloads

Technical Manual

LED Panel Light Omikron

Wiring Instructions & Dimensions Omikron LED Panel Recessed Light

Download

OMIKRON Slim Round LED Panel Lights

User's Manual DL04-DL06-DL08-DL10 Dimmable-Non Dimmable

Download

Emergency pack in galvanized enclosure

Remote emergency pack VOL-EL125

Remote emergency pack for LED panels, tubes and arrays

Download

*
