Massive Energy Storage 300kWh with Lithium Ion Pylontech US5000

300kW massive storage mount-athos greece pylontech

Sustainable Energy Transformation on Mount Athos: 300kWh Energy Storage System

Introduction to the Energy Project

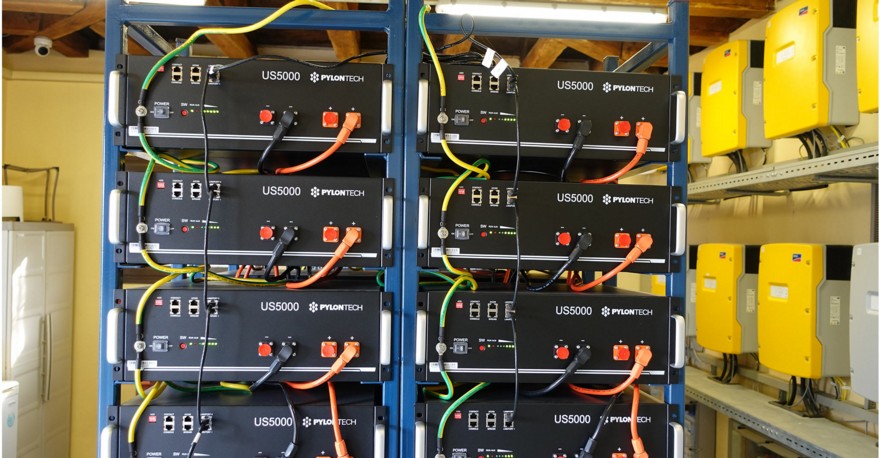

In a serene corner of Greece, the monks of Mount Athos have embarked on a monumental journey towards sustainable energy. A grand installation comprising 64 US5000 Pylontech batteries now powers an entire monastery, meeting the needs of 50 devoted monks and their guests.

Efficient Lithium-Ion Battery Integration

Traditionally, the monastery relied on lead acid batteries, which occupied at least 80 square meters of space. The new system, featuring lithium-ion batteries supplied by Voltacon and Pylontech, has dramatically reduced this footprint to less than 10 square meters. This significant space-saving is coupled with increased efficiency and reliability.

Seamless Integration with Solar PV Array

The monastery has also installed a robust 60 kW solar photovoltaic (PV) array to harness the abundant sunlight. This array not only provides immediate power but also stores excess energy in the lithium-ion batteries for later use, ensuring a steady power supply.

Advanced Monitoring and Control Systems

Central to this innovative system are the German-made SMA solar inverters and Pylontech batteries. Pylontech's lithium iron phosphate (LiFePO4) batteries are among the safest and most reliable lithium-ion batteries available. The modular design allows for stacking multiple units to enhance the system's total capacity.

The setup at Mount Athos features 64 battery modules, synchronized to distribute the load evenly. Monitoring and control are achieved through Raspberry Pi controllers running Solar Assistant software, enabling real-time tracking of temperature, voltage, and current for each battery cell. This advanced monitoring ensures any discrepancies are promptly addressed, while the built-in battery management system (BMS) protects the batteries from overcharging and over-discharging.

Enhanced Battery Lifespan and Performance

The US5000 Pylontech batteries boast an impressive lifespan of over 8,000 cycles, equating to more than 12 years of reliable service. Unlike lead acid batteries, which typically allow a discharge depth of only 40%-50%, these lithium-ion batteries can be discharged down to 95% of their full capacity. This high discharge capability, coupled with minimal energy loss during charge/discharge cycles, ensures stable performance even with heavy usage.

A Sustainable Future Powered by Solar Energy

This cutting-edge technology has allowed the rural community in Mount Athos to rely entirely on solar power and stored energy. The system provides continuous electricity for the monks and their guests, supporting their daily activities with a reliable and sustainable energy source. This project marks a significant step towards a greener future, demonstrating the potential for renewable energy solutions in remote and traditional communities.
