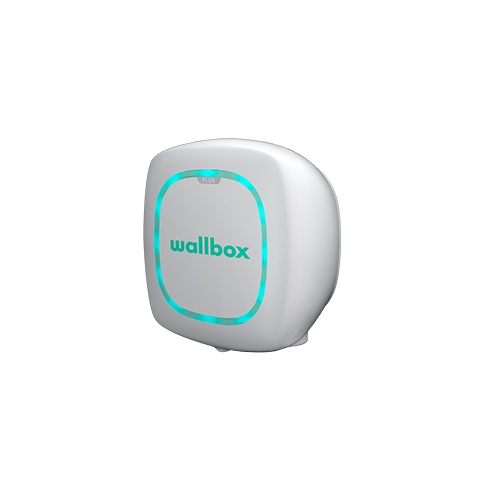

Wallbox Pulsar Plus EV Charger 7.4kW

Ref: Pulsar-7.4kW


Price inc VAT

Single-phase type 1 electric vehicle charger rated at 7.4kW with 5 meter extension cable

Bulk Savings £££
# Items Our Price Savings
6 Items £561.63 Save 3%
12 Items £544.26 Save 6%
24 Items £532.68 Save 8%

The smart and powerful home EV charger.

Wallbox Pulsar Plus was created to give your electric vehicle a powerful smart charger in an incredibly small size. It is perfect for daily use at home. Its compact dimensions and minimalist design fit any garage and are enhanced by multiple functions found on the myWallbox app.

Wallbox Pulsar Plus is our smallest yet powerful smart electric vehicle charger. It’s available with a variety of charging cables and power supplies, so it can charge any electric car up to 22 kW. Connect to the myWallbox app through Wi-Fi or Bluetooth, and take advantage of a full range of smart charging functions




General Specifications

Charger:                      AC
Colour:                        White or Black
Connector type:          Type 1 or Type 2
Charging mode Mode 3
Dimensions                 166x163x82 mm (without cable)
Weight                         1 kg (without cable)
Cable Length               5 m (7m optional)
Earthing Protection


Maximum Charging Power:   7,4 kW (1Phase) / 22 kW (3Phase)
Rated Voltage AC ± 10%:      220 V to 240 V (7,4kW)
                                              400 V (11kW and 22kW)
DC Voltage range -Rated Current
                                             32 A (7,4 kW - 1Phase)
                                             16 A (11 kW - 3Phase)
                                             32 A (22 kW - 3Phase)

Cable Section                       5x6mm²
Configurable Current            from 6 A to rated current
Protection Rating                  IP54 / IK08
Residual Current Detection


Connectivity                 Bluetooth
User Identification:       myWallbox app
User Interface              myWallbox app & portal
Charger Status Information RGB LED / myWallbox app & portal
Included Features Power Sharing
Optional Features
Communication Protocol myWallbox
