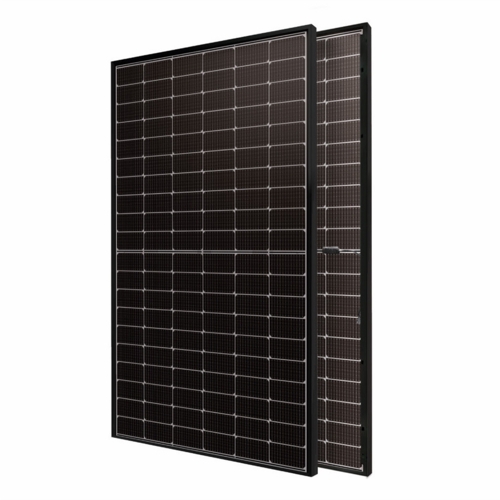

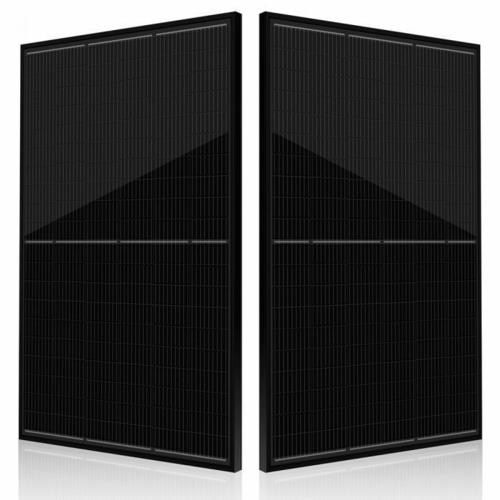

Voltacon Solar Panel 420Watt Half-Cut 108 Cells Monocrystalline

Ref: ET-M754BH420WB

£119.00

Price inc VAT

Bulk Savings £££
# Items	Our Price	Savings
6 Items	£115.43	Save 3%
12 Items	£111.86	Save 6%
24 Items	£109.48	Save 8%

Description

Specification

Description

Elite 1500V. Monocrystalline Solar Panel 420W. Commercial-Residential Roof.

The perfect frame size and power rating matches perfectly the power capacity of most solar inverters and battery chargers in the market. You need only 10 solar panels of your roof to produce 4000Watt or 12 modules for nearly 5000W, that is the peak power for a single-phase solar inverter for domestic use.

Even for larger systems in commercial projects, the Elite 400W from Voltacon Solar offers the fastest return on investment. After 25 years in service, this solar panel will still generate 84% of the nominal power rating.

The product is immediately available in the UK and with customer service and warranty support to be offered by Voltacon Solar.

The panel frame is only 1724 x 1134mm, with 30mm thickness and weights 20kg.

Applications: off-grid, hybrid systems with energy storage, mobile applications, caravans, boats, and solar farms.

Specification

Electrical Specifications and Dimensions

Part Number: HS420M-54-18X

Watt:	420Wp	Max Snow Load	5400Pa , 112lb/ft2
Max Voltage Vmp	31.74V	Cell Size	Mono(182 x 91 mm)
Max Current Imp	13.24A	Number of cells	108 (6x18)
Open Circuit Volts	37.63V	Frame	Anodized aluminium black
Short Circuit Amps	14.14A	Diode Junction Box	IP67
Module Efficiency	21.5%	Length	1724mm
Max System Volts	1000VDC	Width	1134mm
Power Tolerance	0 , + 5Watt	Height	30mm, Weight: 20kg
Max Series Fuse	20A	Warranty:	25 years
Operating Temp:	-40°C to 85°C	Module Cables	4mm2 with MC4 Compatible
