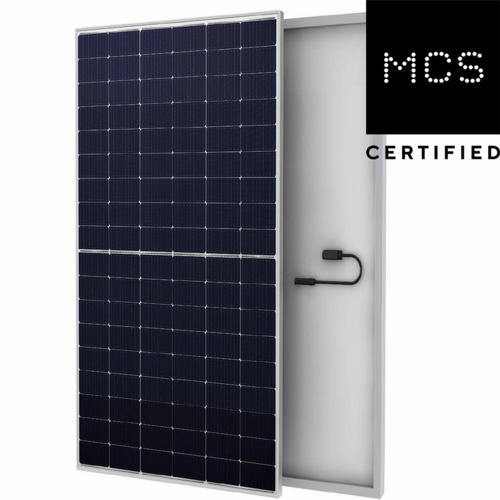

Voltacon Solar Panel 410Watt Half-Cut 108 Cells Monocrystalline

Ref: ET-M754BH410WB

£90.00

Price inc VAT

Class A solar cells 22% efficient, half-cut design with two parallel cell arrays in one frame. Reduced resistive losses up to 4% more energy yield compared to similar photovoltaic panels.

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £87.30 Save 3%
12 Items £84.60 Save 6%
24 Items £82.80 Save 8%
Description
Specification
Description

Elite 1500V. Monocrystalline Solar Panel 410W. Commercial-Residential Roof.

The perfect frame size and power rating that matches perfectly the power capacity of most solar inverters and battery chargers in the market. You need only 10 solar panels of your roof to produce 4000Watt or 12 modules for nearly 5000W, that is the peak power for a single phase solar inverter for domestic use.

Even for larger systems in commercial projects, the Elite 400W from Voltacon Solar offers the fastest return on investment. After 25 years in service, this solar panel will still generate 84%  of the nominal power rating.

The product is immediately avalable in the UK and with customer service and warranty support to be offered by Voltacon Solar.

The panel frame is only 1722 x 1134mm, with 35mm thickness and weights 20kg.

Applications: off-grid, hybrid systems with energy storage, mobile appliacations , caravans, boats, solar farms.



Specification

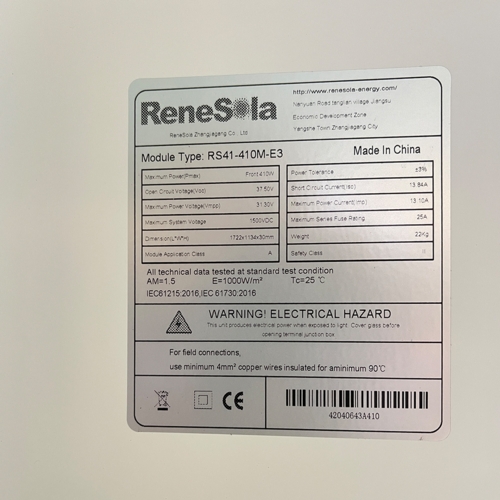

Electrical Characteristics 410W  Photovoltaic Module

Maximum Power (W)  410W
Power Tolerance (%)  0 -5Watt
Maximum Power Voltage (V) 31.30V
Maximum Power Current (A) 12.78A
Open Circuit Voltage (V) 37.50V
Short Circuit Current (A) 13.63A
Module Effciency (%) 20.48%
Maximum System Voltage (V) 1500
Maximum Reverse Current (A) 25
Temperature                    Pmax %/°C -0.35
Coefficient                           ISC %/°C +0.04
                                             VOC  %/°C -0.27
 Standard Test Condition: Irradiance 1000W/m², module temperature 25°C, AM1.5



Mechanical Characteristics

Number of Cells  pcs 108
Size of Cell mm 182x182 (+/-1mm)
Size of Module mm 1722x1134x30
Weight kg 22

 IP Rating: IP68

Absolute Maximum Ratings

Temperature Range (°C)  -40oC ~ +85oC
