Voltacon Pytes 2.4kWh Lithium Ion Battery 48V - Refurbished

Ref: LI2021

£690.00

Price inc VAT

Bulk Savings £££
# Items	Our Price	Savings
6 Items	£669.30	Save 3%
12 Items	£648.60	Save 6%
24 Items	£634.80	Save 8%

Description

Specification

Description

Voltacon Lithium Ion Battery 48V 50Ah

The battery has compatible BMS (battery management system) with MPP Solar, Voltronic and Voltacon Inverters, it also works with Solis hybrid and all Growatt inverters.

VOLTACON LITHIUM BATTERY CONSOLE 2.4KWH

16 in 1 Compatible BMS that works with 16 brands of solar inverters

The cost and performance of lithium batteries continuously improve, the power density makes the consoles significantly smaller and compact. The round trip process, DC-to-storage-to-DC energy efficiency of the storage bank, or the fraction of energy put into the storage that can be retrieved, is one of the most important characteristics. That means less than 5% of your stored energy is lost in the conversion process.

MAIN ADVANTAGES OF LITHIUM-ION BATTERIES

Extremely high efficiency, round trip efficiency 95%
Very low standby consumption less than 0.5Watt
Higher discharge and starting current compared to lead-acid
Energy density 100-200Wh/kg
Power density 1500-2000W/kg
Recharge time 1hour to 100%
Operating temperature from 0°C to 45°C

KEY FEATURES

We offer 48V50Ah (CATL) batteries with sophisticated & reliable BMS.

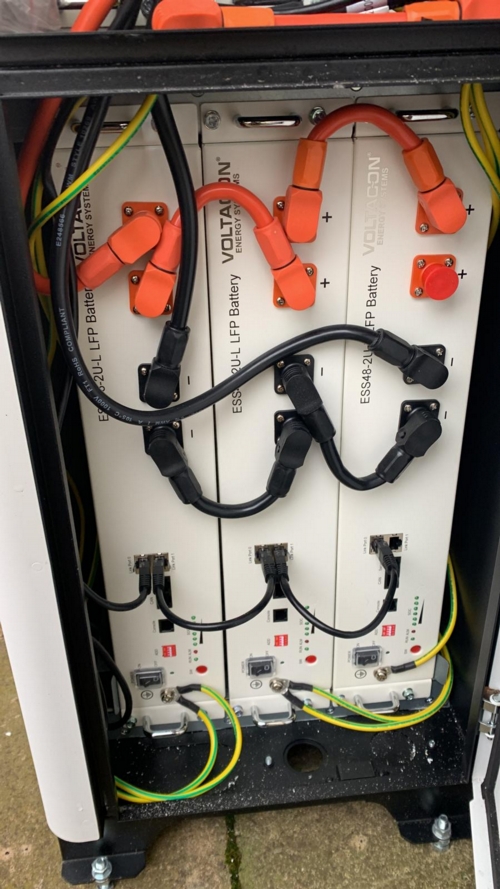

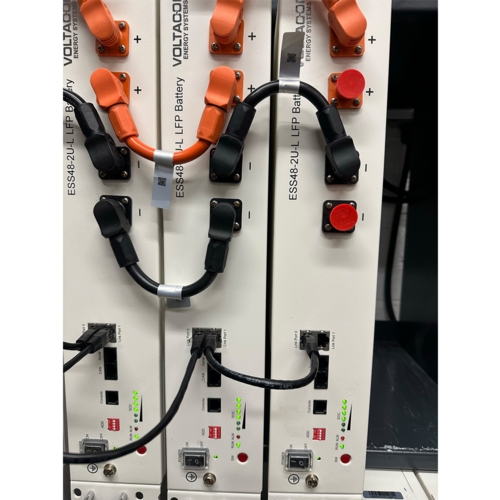

You can connect them in parallel to make 2.4kwh to 120kWh system.
Easy to install and free of maintenance
Long-lasting (up to 6000cycles)
Can be used on-grid and off-grid
IEC62619 & UN38.3 certificates.
Compatible inverters: Voltacon, Growatt, Kelong, Goodwe, Sermatec(SMT), Studer, Victron, Deye, TBB Power, Schneider, Voltronic, LuxPower, Afore, Megarevo, Solis.

BATTERY IDENTIFICATION

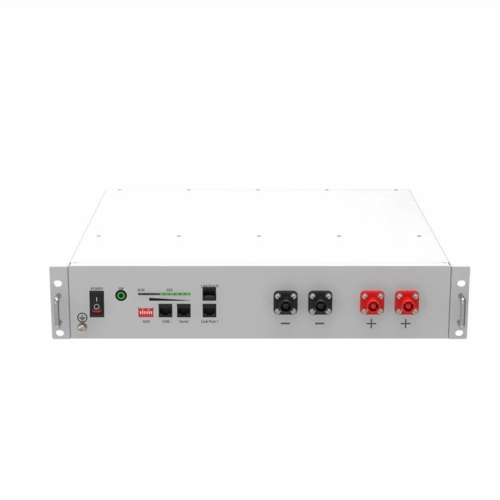

Model: 48V50Ah LFP battery
Size: 19inches*2U*410mm. 442 x 410 x 89mm
Life expectancy: over 6000 cycles, equivalent to 10-12 years
Certificate: UN38.3, IEC62619Connections: Parallel

Specification

Battery Model	Li2021 48V50Ah LFP
Chemistry	LFP (Lithium iron phosphate battery)
Nominal Voltage	48
Voltage Range	44.5V-53.5V
Nominal Capacity	50Ah
Nominal Energy	2.4kWh
Unit Dimension	440mm* 430mm * 88.5mm (2U)
Unit Weight	23kg
Standard Charge Current	25A
Maximum Charge Current	50A
Standard Discharge	25A
Maximum Discharge Rate	50A
Round-Trip Efficiency	>95%
Communication Protocol	RS485, CAN
Cycle Life	≥4000cycles@0.5C/0.5C
	@90%DOD,ret@80%,25°C
Calendar Life	≥10years
Operating Temperature	Charge: 0°C-45°C, Discharge: -20°C-60°C
Certificates	IEC62619/UN38.3
Storage Temperature	Within 1month -20-45°C
	1-3months -20-35°C
	3-12months 20-25°C
