Voltacon Flexible Solar Panel 195watt Monocrystalline ETFE Coating
Ref: VS-FL-195-M36-ETFE£185.00
Price inc VAT
Bulk Savings £££ | ||
---|---|---|
# Items | Our Price | Savings |
6 Items | £179.45 | Save 3% |
12 Items | £173.90 | Save 6% |
24 Items | £170.20 | Save 8% |
The comfort of your home on the road or on the sea. Generate your own electricity with the flexible panels that can be installed on flat or curved surfaces. Using the rooftop of the campervan, motor home , boat or simply placing the panel on the side of your camping tent, clean energy at 195w will be used to charge all types of lithium batteries.
FLEXIBLE LIGHT WEIGHT SOLAR PANEL 190WATT - SUNPOWER CELLS 22% EFFICIENCY
We bring the comfort of your home on the road.
- Meet the Voltacon-Flex 195W Flexible Solar Panel - the pinnacle of cutting-edge technology and high energy yield.This ultra-lightweight panel can achieve up to an incredible 248-degree arc of flexibility thanks to advanced solar cell technology and lamination techniques.
- At 3kg, this panel weighs 70% less than its standard counterpart and is less than 5% as thick. This makes it easy to transport, install, and affixed to uneven surfaces. It's precisely this kind of adaptability that makes the Volta Flex 195W Flexible Solar Panel the ideal choice for airstreams, campers, vans and boats or any surface where rigid panels can be installed
- Mounting Recommendation: Modules must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used for non-mobile applications. For detailed installation methods, please consult a local contractor for guidance.
- ETFE (copolymer of Ethylene and TetraFluoroEthylene) coating has unique properties, and outstanding mechanical toughness, it protects the solar cells from cracks and premature degradation, helps to absorb more solar light, it has self-cleaning properties.

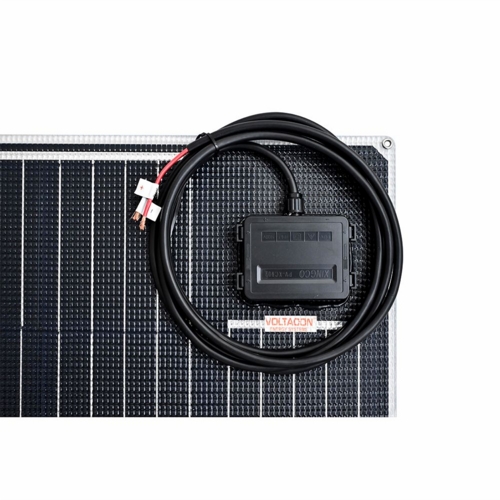

The junction box is IP66 rated (water proof) and pre fitted with a twin core double insulated cable. The terminals are marked positive and negative for easy identification when the panels are connected to a battery charger.
ELECTRICAL CHARACTERISTICS
- Maximum power: 195Watt
- Open circuit voltage: 23.4V
- Voltage at Pmax (Vmp): 19.5V
- Short circuit current: 10.6A
- Current at Pmax(Imp): 10.0A
- Cell Efficiency: 22.42%
- System Max Voltage: 200Vdc
- Power Temperature Coefficient: -0.43%/oC
- Voltage Temperature Coefficient: -0.34%/oC
- Current Temperatre Coefficient: 0.05%/oC
- Output Tolerance: +/- 3%
- Operating Temperatre: -20 to 75oC
- 36 solar cells.
DIMENSIONS
Width: 680mm. Height: 1495mm. Thickness: 4mm
Extension solar cable: 3 meters
Product code: VS-FL-195-M36-ETFE
