Voltacon / Pytes Lithium Ion Battery 5.12kWh 48V 100Ah.
Ref: PYT5120KWH£1,400.00
Price inc VAT
Bulk Savings £££ | ||
---|---|---|
# Items | Our Price | Savings |
6 Items | £1,358.00 | Save 3% |
12 Items | £1,316.00 | Save 6% |
24 Items | £1,288.00 | Save 8% |

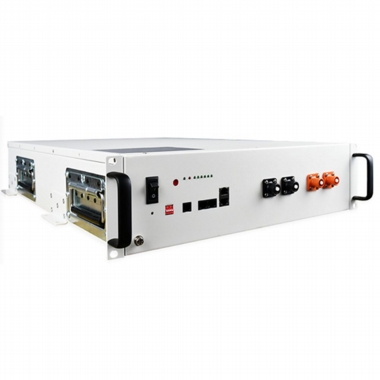

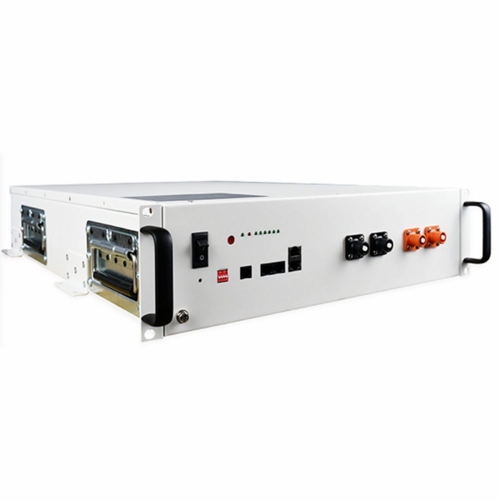

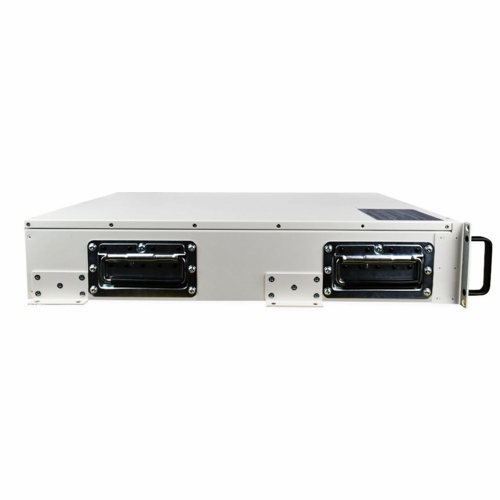

VOLTACON / Pytes LITHIUM ION BATTERY 100AH, 48V, 5.12KWH
Unlimited Home Grown Energy Storage

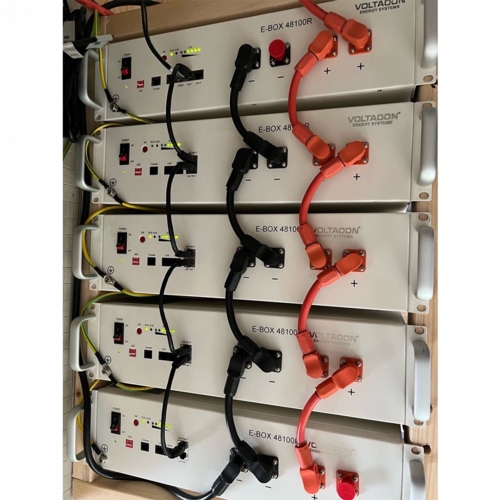

You can create energy storage towers with these 5.12kWh 100Ah batteries that are strong enough to power anything from a camper van to a big house, either in connection with a public grid or entirely off-grid. Power and communication cables are included, so you can easily stack up to 5 batteries with inexpensive metal brackets or up to 6 in a server cabinet. It’s possible to reach up to 125kWh by connecting multiple stacks in parallel, and they are compatible with 13 different solar inverters.
Safety features include built-battery fuses to prevent short-circuiting, thermal management to drain excess heat, cell balancing algorithm and battery management system to avoid and protect against over/under voltage. Given the cost of electricity, the batteries and solar panels can pay for themselves within three to five years.
MAIN ADVANTAGES OF LITHIUM-ION BATTERIES
- Extremely high efficiency, round trip efficiency 95%
- Very low standby consumption of less than 0.5Watt
- Higher discharge and starting current compared to lead-acid
- Energy density 100-200Wh/kg
- Power density 1500-2000W/kg
- Recharge time 1hour to 100%
- Operating temperature from 0°C to 45°C
KEY FEATURES
- We offer 48V 100Ah batteries with sophisticated & reliable BMS.
- You can connect them in parallel to make 3.5kwh to 120kWh system.
- Easy to install and free of maintenance
- Long-lasting (up to 6000cycles)
- Can be used on-grid and off-grid
- IEC62619 & UN38.3 certificates.
- Compatible inverters: Voltacon, Growatt, Kelong, Goodwe, Sermatec(SMT), Studer, Victron, Deye, TBB Power, Schneider, Voltronic, LuxPower, Afore, Megarevo, Solis.
BATTERY IDENTIFICATION
Model: 48V100Ah LFP battery
Size: L440mm* W620mm * H117mm (2.6U)
Cycle life: above 6000 cycles
Certificate: UN38.3, IEC62619
Connections: in parallel
TECHNICAL SPECIFICATIONS 5.12KWH - VOLTACON LPF BATTERY
Nominal Voltage |
51.2V |
Nominal Capacity (Wh) | 5120Wh |
Usable Capacity (Wh) | 4250Wh |
Dimensions (mm) | L440mm* W620mm * H117mm |
Weight (KG) | 50 |
Discharge Voltage (V) | 45-54v |
Charge Voltage (V) | 57.6V |
Charge / Discharge Current (A) | 50A Recommended.
70A(Max) 100(Peak@2s) |
Communication Port | RS232,RS485,CAN |
Working Temperature℃ | -10 ~ 60 |
Storage Temperature ℃ | -20 ~ 60 |
Authentification Level | |
Design Life |
12 years |
Cycle Life |
6600 cycles |
