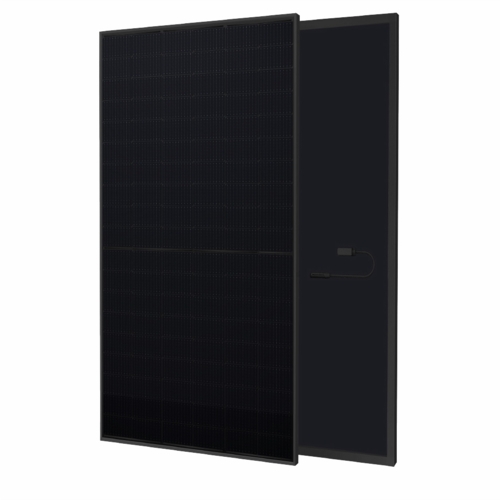

Renesola 425Watt Solar Panel Half Cut 108 Cells Monocrystalline - All Black

Ref: RS41-425NX-E3

£69.00

Price inc VAT

22% Panel Efficiency. 30 Year Linear Power Output. 12 Year Warranty on Electrical and Mechanical Parts

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £66.93 Save 3%
12 Items £64.86 Save 6%
24 Items £63.48 Save 8%
Description
Specification
Downloads
Description

Saturn Renesola 425Watt Mono Facial Solar Photovoltaic Panel

TopCon technology increases the efficiency of half-cut solar panels to 22% with exceptional power maintenance after 30 years (87% power retained). The power curve of the panel is kept linear for this period. Financially, the investment has a shorter return and brings more income due to the fact that panels produce more power for longer.

Widely used in off-grid and hybrid applications

The size of the panel is 172x113cm, quite compact dimensions considering the 425Watt pean power that produces. We have supplied a variety of applications from camper vans that require 1-2 solar panels on their roof, to residential projects and large-scale photovoltaic farms.

Key Features

  • 12 year warranty on material and workmanship
  • 30 year linear output power.
  • 87% power output after 30 years in operation
  • High performance in weak daylight, stands low temperatures with ratings 0.4% linea power decline
  • Self-cleaning coating
Specification

Electrical Specifications and Dimensions

​​​​​​​Part Number: RS41-425NX-E3. Mono N-Type Cells

Watt:

425Wp

Max Snow Load

5400Pa , 112lb/ft2

Max Voltage Vmp

32.27V

Cell Size

Mono(182 x 182 mm)

Max Current Imp

13.17A

Number of cells

108 (6x18)

Open Circuit Volts

38.41V

Frame

Anodized aluminium black

Short Circuit Amps

13.98A

Diode Junction Box

IP67

Module Efficiency

22%

Length

1722mm

Max System Volts

1000VDC

Width

1134mm

Power Tolerance

0 , + 5Watt

Height

30mm, Weight: 22kg

Max Series Fuse

20A

Warranty:

25 years

Operating Temp:

-40°C to 85°C

Module Cables

4mm2 with MC4 Compatible



Temperature Coefficient

Pmax -0.31%/℃;

Voc -0.26%/℃ ;

Isc 0.046%/℃;

Nominal Operating Cell Temperature (NOCT): 45℃ +/- 2℃

Downloads

Technical Manual

renesolar 425watt all black

Renesolar 425Watt Data Sheet

Data sheet RS41-425NX-E3

Download
