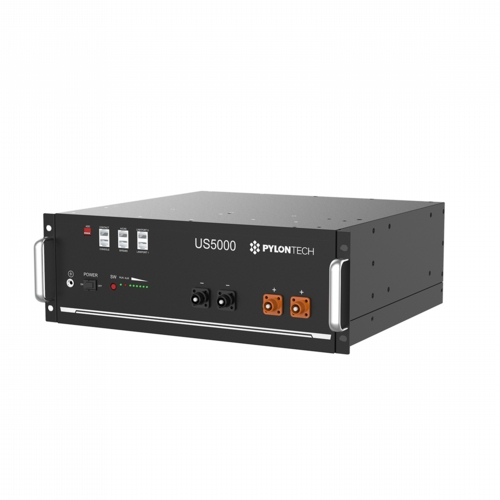

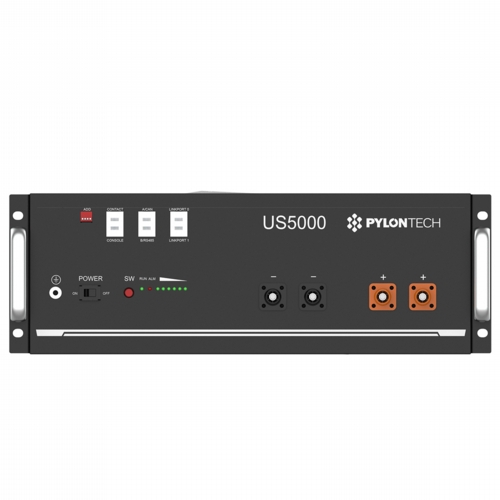

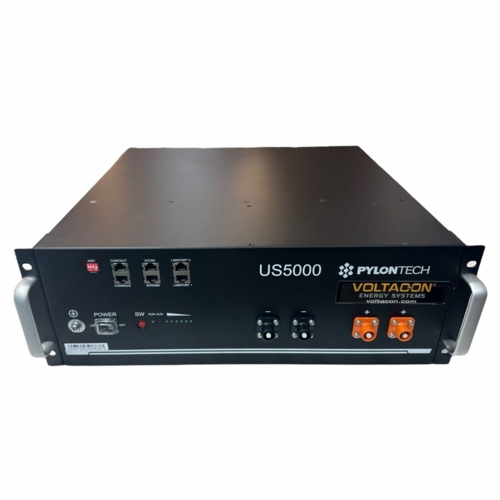

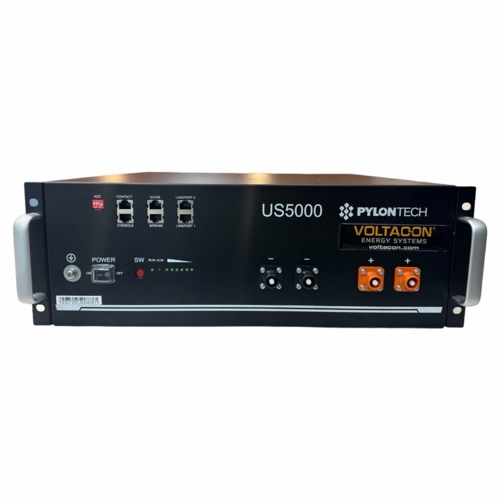

Pylontech US5000C Lithium Ion Battery 48V 4.8kWh Solar & Wind Applications
Ref: US5000C£900.00
Price inc VAT
Bulk Savings £££ | ||
---|---|---|
# Items | Our Price | Savings |
6 Items | £873.00 | Save 3% |
12 Items | £846.00 | Save 6% |
24 Items | £828.00 | Save 8% |
PYLONTECH US5000C 4.8kWh LiFePO4 Lithium Battery – 8,000 Cycles, 10-Year Warranty
Reliable. Scalable. Smart Energy Storage for Homes & Businesses.
Take control of your energy with the Pylontech US5000C, a high-performance 4.8kWh lithium-ion battery using LiFePO4 cells. Engineered for seamless compatibility, exceptional longevity, and effortless expandability, this battery is the preferred choice for both hybrid and off-grid solar systems.
✅ Key Specifications:
- Model: US5000C
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Nominal Energy: 4.8kWh
- Usable Energy: Up to 4.56kWh
- Peak Energy Capacity: 5.12kWh
- Weight: 39kg
- Cycle Life: 8,000+ cycles (@ 90% DoD)
- Design Life: 12–15 years
- Warranty: 10 years
- Installation: Vertical or horizontal, rack or wall-mounted
⚡ Main Features:

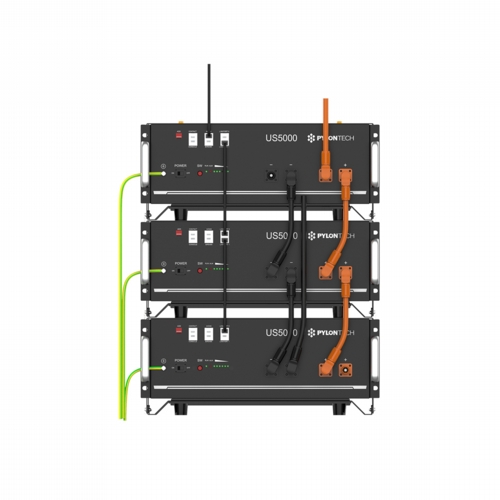

- Expandable Capacity: Stack multiple units easily using rack systems or mounting brackets—no complex wiring needed. Ideal for growing energy needs at home or in commercial spaces.
- High Compatibility: Built to integrate with a wide range of hybrid and off-grid inverters from leading brands. Communicates directly with inverter systems for seamless operation.
- Smart BMS (Battery Management System): The advanced BMS optimizes charge and discharge conditions, ensures cell balancing, prevents overcharge/discharge, and communicates with your solar inverter—no manual setup needed.
- Flexible Installation: Fully sealed, insulated, and orientation-agnostic. Install vertically or horizontally, indoors or out.
- Long Service Life: Engineered to last with over 8,000 cycles and a typical lifespan of 12–15 years, ensuring maximum return on your investment.
🏡 Perfect For:

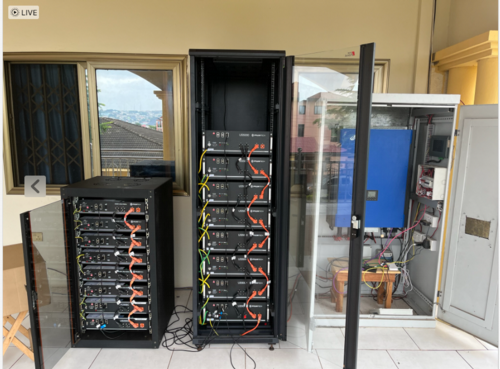

- Residential homes aiming for power independence (only 3–4 units typically required)
- Off-grid cabins or workshops

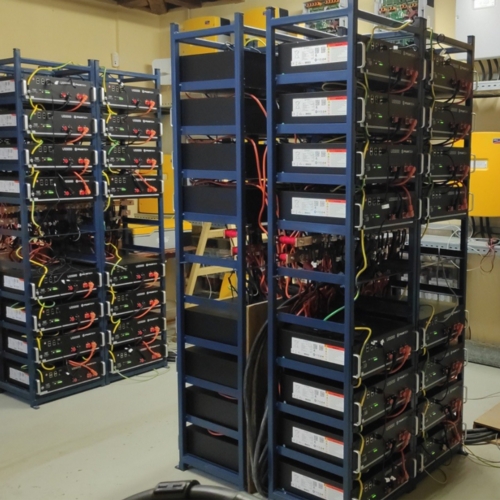

- Commercial solar systems
- Backup energy systems
🔧 What’s Included:
- 1x Pylontech US5000C 4.8kWh Battery
- Interlinking cables (if part of a bundle)
- User Manual & Warranty Card
🌞 Why Choose the Pylontech US5000C?
- Trusted lithium technology (LiFePO4)
- Superior safety and energy density
- Compatible with most modern solar systems
- Backed by a robust 10-year warranty
- Smart integration with your inverter—set it and forget it
Power your home or business with the smartest lithium solution on the market.
Buy now and build your energy independence today.
Technical Specifications
Basic Parameters US5000C
Nominal Voltage (Vdc) 48
Nominal Capacity (Wh) 4800
Usable Capacity (Wh) 4560
Depth of discharge (%) 95
Dimension (mm) 442*420*161
Weight (Kg) 39.7 40
Discharge Voltage (Vdc) 43.5 ~ 53.5
Charge Voltage (Vdc) 52.5 ~ 53.5
Recommended Charge/Discharge Current (A) 80*
Max. continuous Charge/Discharge Current (A) 100*
Peak Charge/Discharge Current (A) 101-120@15min 121~200@15sec
Communication RS485, CAN
Configuration
(max. in 1 battery group) 16pcs
Working Temperature
0°C ~50°C Charge
-10°C ~50°C Discharge
Shelf Temperature -20°C ~45°C
Short current/duration time <2000A/1ms
Cooling type Natural
Breaker No Yes
Protective class I
IP rating of enclosure IP20
Humidity 5% ~ 95%(RH) No Condensation
Altitude(m) ≤4000
Certification TÜV / CE / UL / UN38.3
Design life 15+ Years (25°C /77℉)
Cycle Life >6,000 25°C
Reference standards
IEC62619, IEC63056,
UL1973, UL9540A, IEC61000-6-2,
