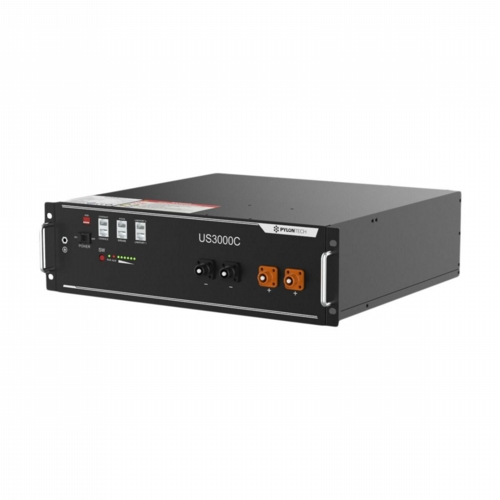

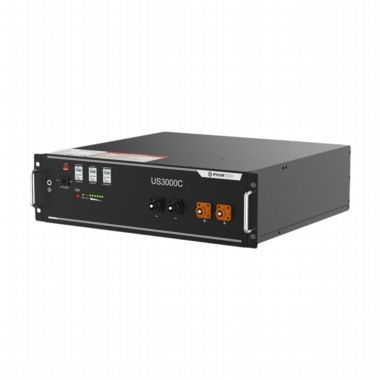

Pylontech US3000C 3.5kWh Lithium Ion 48V 100Ah

Ref: US3000

£995.00

Price inc VAT

AVAILABLE TO PRE-ORDER. TO BE DISPATCHED IN JANUARY 2023. Small, easy to install, compact and safe, the Pylontech US3000 is a power intense energy storage solution with 3.5kWh capacity at 48V.

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £965.15 Save 3%
12 Items £935.30 Save 6%
24 Items £915.40 Save 8%
Description
Specification
Description

AVAILABLE TO PRE-ORDER. TO BE DISPATCHED AFTER MID JUNE

PRODUCT FEATURES

  • Nominal Capacity: 3.55 kWh
  • Usable Capacity: 3.20 kWh
  • Capacity: 74 Ah
  • Nominal Voltage: 48V
  • Weight: 35kg
  • Low voltage in 48V, 74Ah DoD: 90%
  • Dimension: 442mm (W)x132mm (H)x420mm (D)
  • Vertical industry integration ensures more than 6000 cycles with 80% DoD
  • Module expansion by installing one battery in parallel every time
  • Compatible with over 20 brands of solar off grid & hybrid inverter

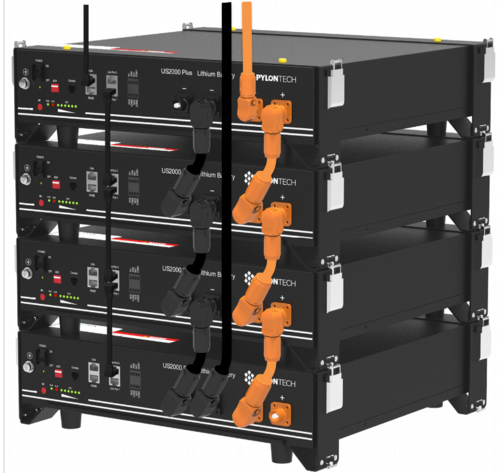

  • Simple metallic mounting brackets for up to 5 batteries in one vertical stack
  • Small foot print, easy to install in utility rooms, warehouse, offices.
  • Safety Cert.TÜVCEUN38.3TLC
Specification

TECHNICAL SPECIFICATIONS 3.55KWH - US3000 PLUS



Nominal Voltage

48V

Nominal Capacity (Wh)

3550

Usable Capacity (Wh)

3300

Dimensions (mm)

442*420*132

Weight (KG)

35

Discharge Voltage (V)

45~54

Charge Voltage (V)

52.5-54 V



Charge / Discharge Current (A)

25 (Recommended)

74A(Max)

100(Peak@2s)

Communication Port

RS232,RS485,CAN

Working Temperature℃

0 ~ 50

Storage Temperature ℃

-20 ~ 60

Authentification Level

TUV / CE / UN38.3

Design Life

10+ Years (25℃ / 77℃)

Cycle Life

>6000,22℃
