Pylontech Pelio Lithium Ion Battery LiFePO4 5.12kWh 48V Water Proof IP65 - WiFi
Ref: PELIO£990.00
Price inc VAT
| Bulk Savings £££ | ||
|---|---|---|
| # Items | Our Price | Savings |
| 6 Items | £960.30 | Save 3% |
| 12 Items | £930.60 | Save 6% |
| 24 Items | £910.80 | Save 8% |

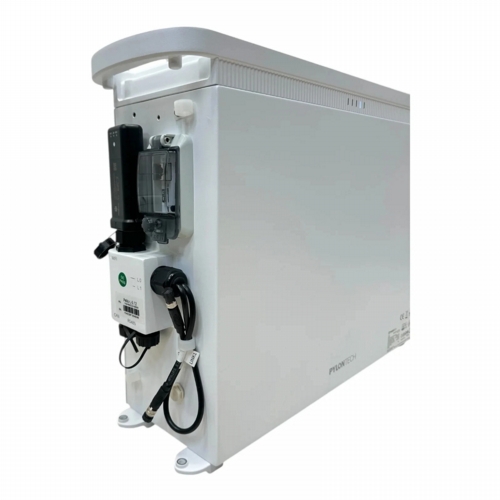

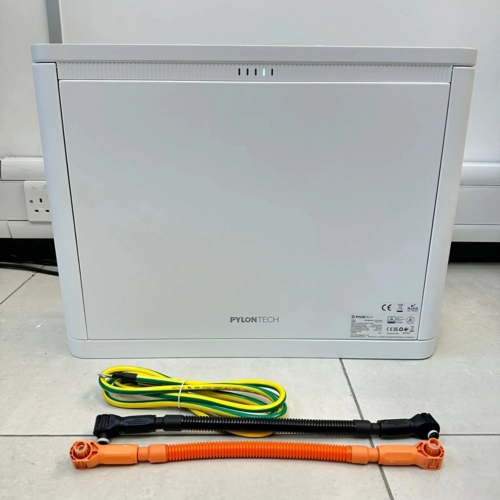

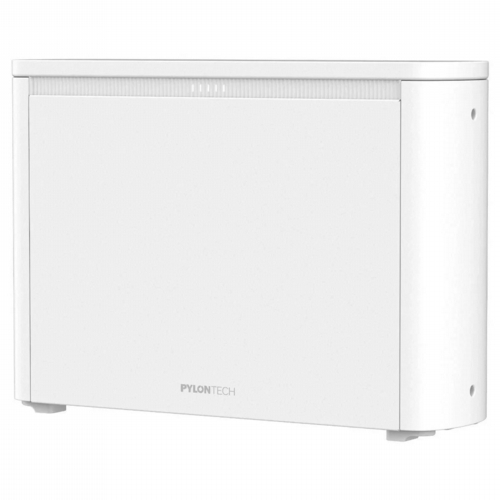

Pelio IP65 Pylontech 5.12kWh LiFePO4 Battery with WiFi Monitoring
The Pelio 5.12kWh Lithium Iron Phosphate battery from Pylontech is a compact, waterproof and high-performance energy storage solution for residential and commercial systems. Built on the proven US5000 platform, this upgraded model adds higher capacity, improved firmware, integrated WiFi monitoring and full IP65 protection for safe indoor or outdoor installation. Thanks to advanced LFP chemistry, the Pelio delivers excellent cycle life, high energy density and outstanding thermal stability.
Works with all major inverter brands: Solis, Sunsynk, Voltacon, Voltronic, Solax, Growatt and another 68 inverters.

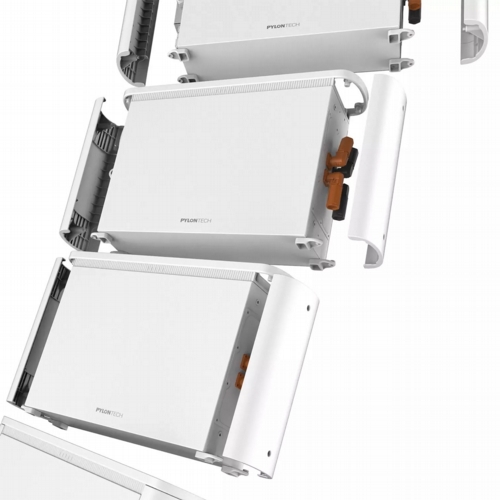

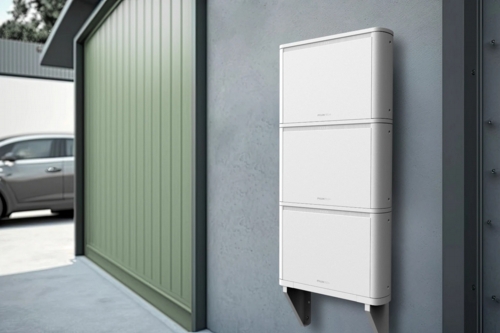

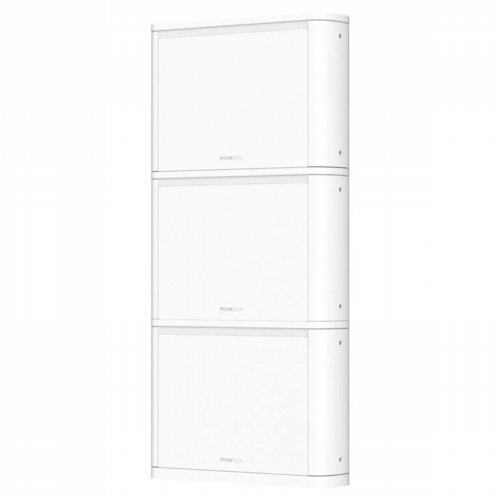

The small footprint and robust enclosure remove the need for separate cabinets, as each unit can be stacked vertically in groups of up to four, with a maximum system size of 102.4kWh. The battery integrates smoothly with more than seventy hybrid and off grid inverters including Solis, Voltacon, Victron, Solax, Sunsynk, Dye and SMA. A continuous discharge power of 5.12kW and generous peak outputs provide reliable performance, while WiFi connectivity gives real time visibility of system status. Fully certified and capable of remote firmware updates, the Pelio is a dependable choice for modern solar energy storage.
Key Features
- 5.12kWh usable LiFePO4 energy storage
- Waterproof IP65 enclosure for outdoor or indoor use
- Compact, stackable design with no extra cabinet required
- Scalable system: up to 20 units (maximum 102.4kWh)
- Continuous discharge power 5.12kW
- Peak power 6.14kW for 15 minutes and 10.24kW for 15 seconds
- Compatible with over 70 inverter brands (Solis, Voltacon, Victron, Solax, Sunsynk, SMA and more)
- Integrated WiFi for 24/7 remote monitoring via smartphone
- Advanced BMS for safe charging, discharging and balancing
- Supports online system updates and remote maintenance
Dimensions and Weight
- Battery size (W x H x D): 395 x 578 x 165mm
- With base (W x H x D): 425 x 578 x 165mm
- Approximate weight: 45kg
- Approximate weight with base: 47kg
Certifications and Standards
- IEC62619
- IEC62040
- UL1974
- UL9540A
- IEC61000-6-2
- UN38.3
- IEC63056
- IEC62477-1
- U1642
- VDE2510-50
- IEC61000-6-3
Technical Specifications - New PELIO Lithium Battery
Electrical Specifications
| Parameter | Value |
|---|---|
| Battery type | Lithium Iron Phosphate (LiFePO4) |
| Nominal energy | 5.12kWh |
| Nominal voltage | 48V (51.2V) |
| Operating voltage range | 44.8V to 57.6V |
| Nominal capacity | 100Ah |
| Continuous discharge power | 5.12kW |
| Peak power (15 minutes) | 6.14kW |
| Peak power (15 seconds) | 10.24kW |
| Maximum units in parallel | 20 (up to 102.4kWh) |
| Communication interfaces | CAN, RS485, WiFi |
| IP rating | IP65 |
| Cycle life | More than 6000 cycles at 90 percent DoD |
| Charge temperature | 0 °C to +55 °C |
| Discharge temperature | -20 °C to +55 °C |
| Storage temperature | -10 °C to +35 °C |
| Installation options | Wall mount or ground mount (Pelio kits available) |
Optional Accessories
- Pylontech Pelio L 5.12 Wall Mount Installation Kit with cable (Pelio Kit W)
- Pylontech Pelio L 5.12 Ground Mount Installation Kit with cable (Pelio Kit G)
