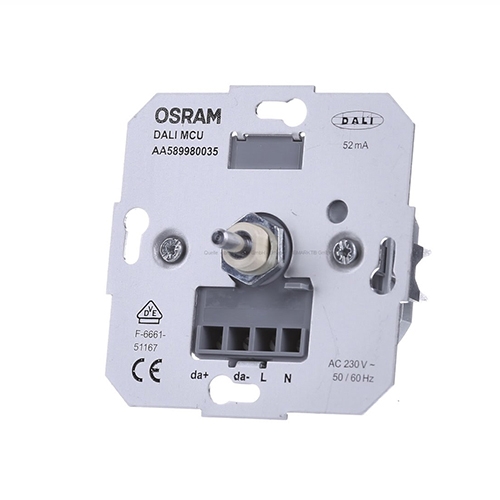

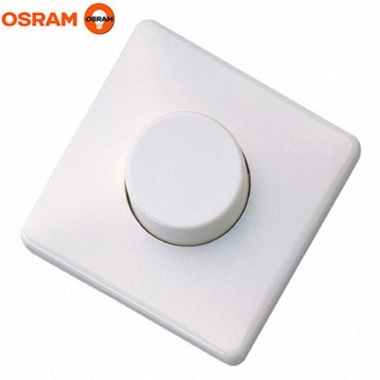

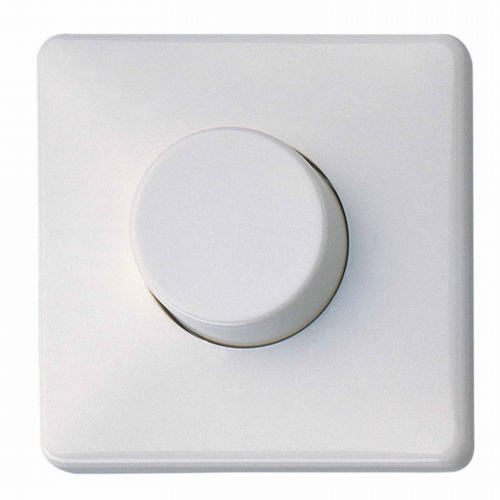

DALI Dimmer Switch with ON/OFF Function - OSRAM

Lighting control is more than motion sensors, the optimised connection of interfaces, control panels, dalylight and motion sensors. The Light Switches from OSRAM offer innovative control, energy efficient lighting from a single light in a room to large scale buildings.

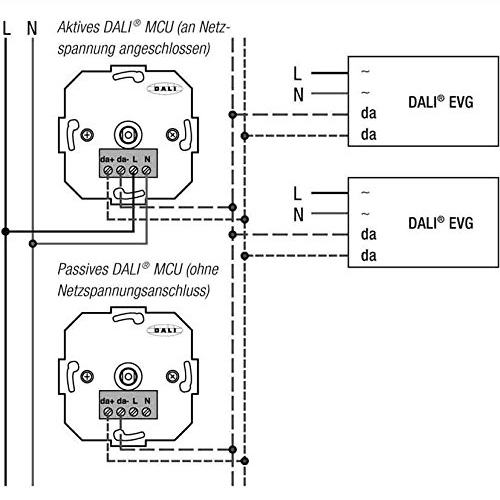

• Up to 4 DALI MCUs can be connected in parallel to set up multiple control points
• Automatic synchronization between the control points
• Power consumption: max. 2 W
• Length of the DALI control cable: 300 m
• Suitable for up to 25 ECGs

Product features

• DALI edition 2 (IEC 62386 ed. 2) implemented
• Up to four DALI PCU can be connected in parallel to set up multiple control points
• Automatic synchronization between the control points
• Can be combined with standard presence- and motion detectors with mains contact
• Behavior after power failure configurable
• Length of the DALI control cable: up to 300 m

Equipment / Accessories

• Suitable for up to 25 LED Drivers, power supplies.
• Easy to Expand via DALI repeaters or further DALI PCUs

EAN: 4008321189721
