Omega LED Ceiling Fitting 12Watt

Ref: UP-AL08-10-12W

£21.00

Price inc VAT

VOLTALED Ceiling Light 12W. Three colour temperatures in one fitting. IP54 rating.

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £20.37 Save 3%
12 Items £19.74 Save 6%
24 Items £19.32 Save 8%
Description
Specification
Downloads
Description

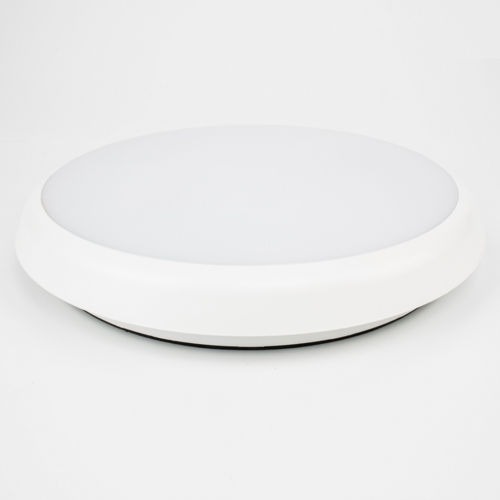

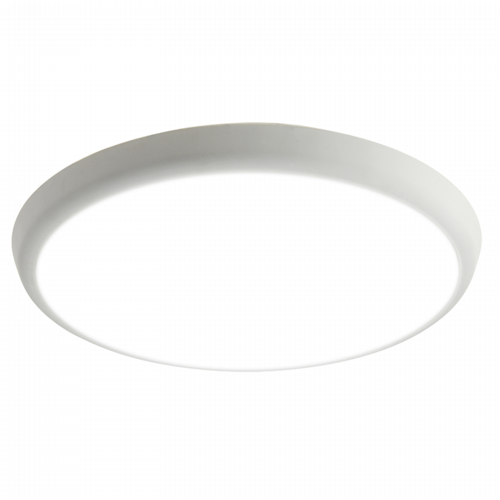

LED Ceiling Surface Mounted Fitting 12Watt - OMEGA Series

Voltacon is pleased to welcome a new slim and stylish unit to its range of commercial LED ceiling lights.

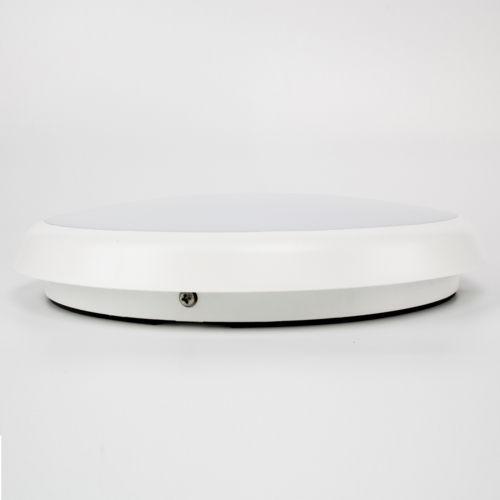

Voltaled is a modern ceiling light, featuring an elegant brushed aluminium bezel that is just 40mm thick, making it a versatile and discreet solution for lighting your business. Voltaled comes in a range of sizes; the smallest weighing 920g and the largest weighing 1.2kg.

The stylish LED ceiling light is perfect for illuminating any area of your business including corridors, reception areas, utility rooms and bathrooms. It is even suitable for installing in outside areas such as balconies due to an IP (ingression protection) rating of IP54, indicating the waterproof and humidity-resistant properties of the lights.

Our recommedation

If you want to replace your old ceiling/wall lights this is the right LED light that is equivalent to 28w and 36w 2D CFL.

Features

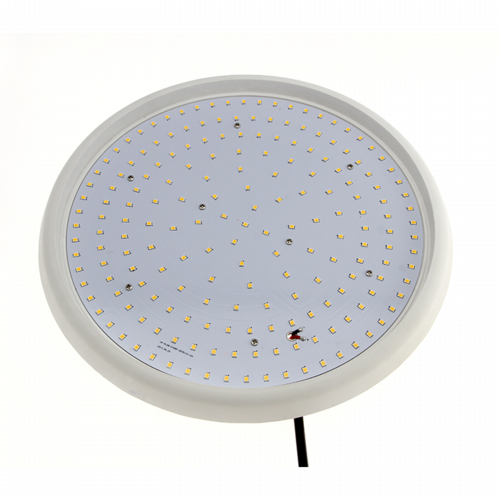

  • It comes with LED aluminium printed circuit board
  • Uses the latest technology of high efficiency LED driver
  • Available with white and brushed aluminium bezel
  • It replaced 28w and 36w CFL 2D Lamps

Watch our Video on Youtube



Main features

Applications

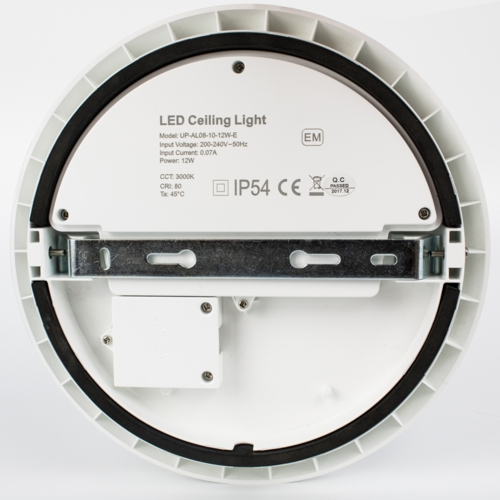

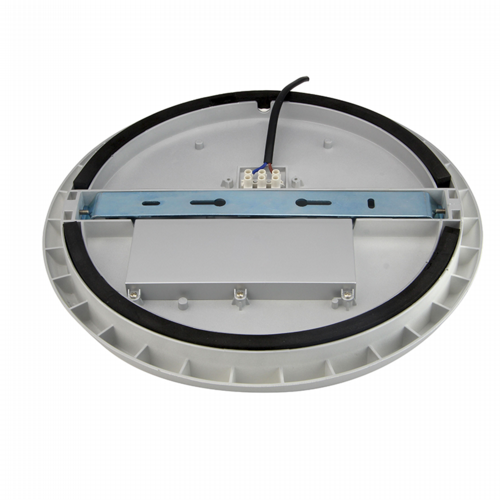

The LED fixture can be installed on the wall and ceiling, on the back side there is a metalic mounting bracket with screws and plugs. It is suitable for all surfaces (wood, plasterboard, concrete and brick walls).

Slim and Elegant



Functions and Options

  • Emergency pack with Ni-Cd batter for 3 hour emergy powe mode
  • Microwave sensor with on/off function
  • Microwave sensor with corridor functions and 3 step dimming.



IP54 Rated. Waterproof



Voltaled can be used as MAINTAINED FITTINGS

It will operate as standard light fitting, can be controlled with a wall switch or motion sensor like all the other lights. When the mains power fails, the maintained emergency pack will operate at 30% light about that is approximately 300 lumen.



EAN Codes

EAN  0610877896363 Standard 12W
EAN 0610877896370 Sensor 12W
EAN 0610877896387 Emergency 12W
EAN 0610877896394 Emergency Sensor 12W
Specification

SPECIFICATIONS - 12W Voltaled LED Ceiling Fitting

Beam angle:

120°

Luminous flux:

996-1068 lm

Wattage (rated):

12 Watt

Color Rendering index:

>80

Voltage:

AC100-240V

AC200-240V

Typical efficiency:

90lm/W

Line frequency:

50/60Hz

Weight:

850g

Average lifetime:

50,000 hours

Power Factor

>0.9

Color Temperature:



Size

250*48mm (10inc)

Warm white:

3000K

Waterproof:

IP54

Natural white:

4000K

Dimmable:

NO

Cool white:

5700K

Warranty:

5 years

Operating Temp:

-10 OC to 50 OC

Certification:

ROHS Compliant, CE, UL

Downloads

Technical Manual

OMEGA LED CEILING LIGHT. 12W with Microwave Sensor

Technical Specifications and Wiring Instructions 12W Sensor

Download

OMEGA LED CEILING LIGHT. 12W with Emergency Pack

Technical Specifications and Wiring Instructions 12W Microwave sensor

Download
