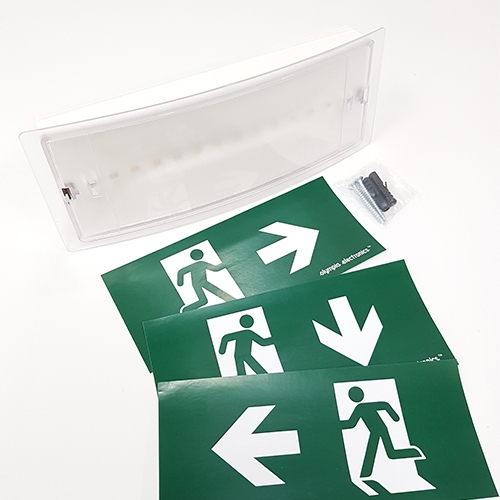

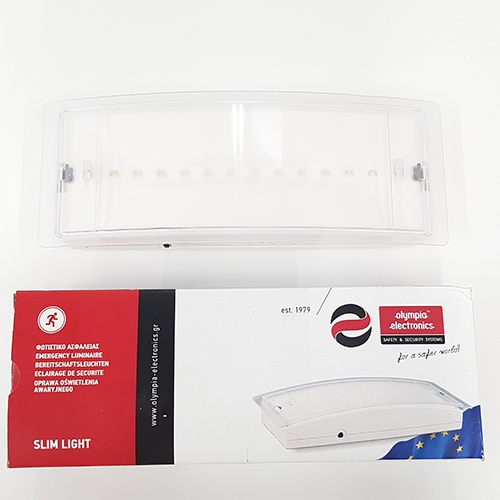

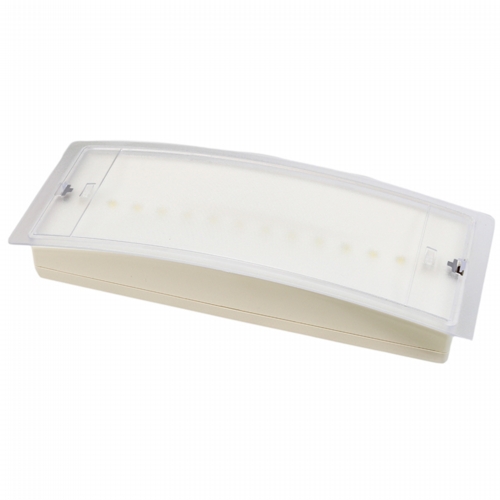

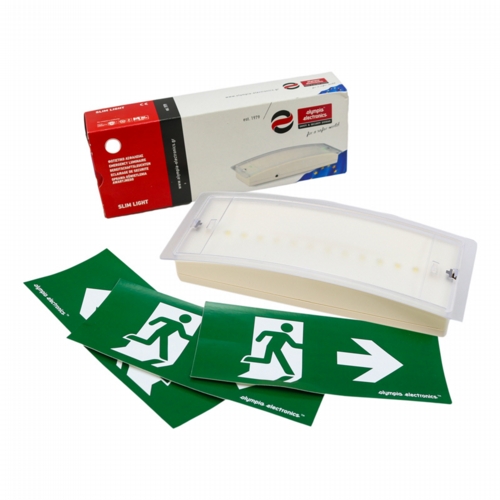

OLYMPIA 3W Emergency Luminaire (Maintained & Non-Maintained).

The product is produced in Greece and complies with British Standad for emergency lighting including the EN 60598-1, EN 60598-2-22, ΕΝ 55015, ΕΝ 61547, ΕΝ 61000-3-2, ΕΝ 61000-3-3

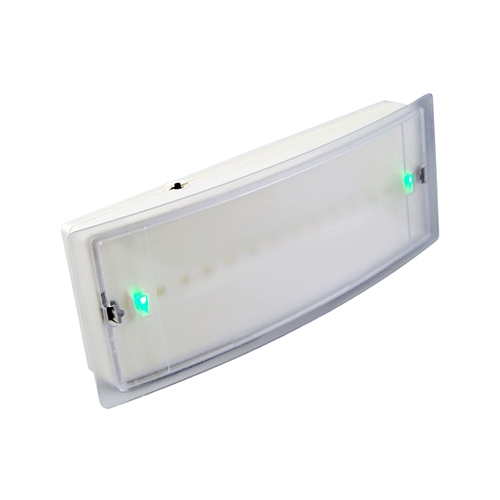

These emergency bulkhead is made for indoor use in ambient temperature up to 40C. The fittings must be fed permanently from a mains voltage (100-240VAC). Under normal mode, the LED board is lit, the green LED indicates that the battery is charging. In case of mains power cut, the LED strip will be automatically fed from the battery, this is the emergency mode.

The normal mode will be restored when the mains power is reinstated

2 in 1 Emergency Modes.

The user can select between non-maintained and maintained mode by moving the jumper to the right position.

How to test and monitor the device

It is recommended to check montly the LED indicator to ensure that the battery is charged. Using the TEST button the emergency circuit can be tested without switch the mains voltage.

The duration of autonomy of the emergency unit should be tested every 6 months by removing the mains voltage. The time should be counted and if it drops well below 3 hours, the battery should be replaced immediatel.

If you do not intent to use the light for more than 2 months, the battery has to be disconneted by pulling out the connector.

Operating voltage: 220-240VAC

Maximum power consumption : 3Watt/3.5VA

BATTERIES (Ni-Cd) : 3.6V / 1Ah

CHARGING TIME : 24h

MINIMUM AUTONOMOUS DURATION: 3 hours

ILLUMINATION SOURCE: 12 LEDs

ILLUMINATION (230V AC / emergency) : 100 lm

PRODUCED IN ACCORDANCE WITH: EN 60598-1, EN 60598-2-22, ΕΝ 55015, ΕΝ 61547, ΕΝ 61000-3-2, ΕΝ 61000-3-3
