Micro Inverter 600W Sany Boy 230V Grid Tied - Advance Cooling & IP67

Ref: VMI600

£149.00

Price inc VAT

Increase performance by 20% single solar panel level, lasts 25 years, peak power 620Watt, remote monitoring.

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £144.53 Save 3%
12 Items £140.06 Save 6%
24 Items £137.08 Save 8%
Description
Specification
Downloads
Description

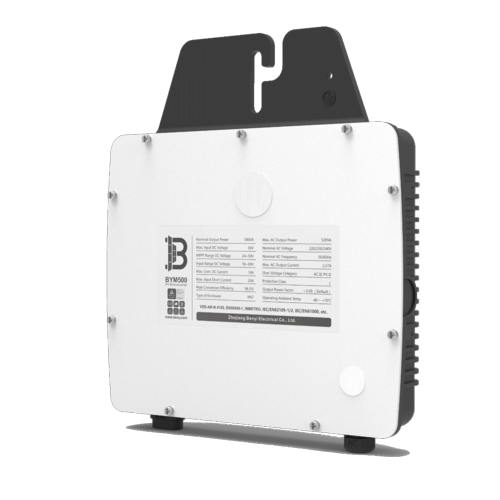

Voltacon Advanced Solar Micro Inverter VMI-600 Water Proof - 25 Year Life Span

The inverter works with all solar panels in the market including  60, 66, 72, 75 cell or 120, 132, 144, 150 half-cell type PV panels with maximum string amperage 20A. The peak efficiency is 96.5% and the static MPPT efficiency is 99.8%

A microinverter, mounted on each solar panel, is an elegant solar inverter technology. It boasts the remarkable capability of achieving maximum power point tracking (MPPT) at the module level, surpassing centralized inverters in advantages. This optimization enables the maximization of overall output power by fine-tuning the power output of each module.

Voltacon microinverters, a beacon of excellence, offer a plethora of benefits including rapid shutdown, adaptable panel layout, and comprehensive module-level monitoring and diagnostics. Unleash the full potential of your installation with Voltacon microinverters

The first micro inverter with GaN semiconductors, no fans, and no electrolytic capacitors, this high-quality device will last 25 years matching the life span of your solar panels.

  • The most reliable micro inverter in the market with world-class components that extend the life of the product to 25 years (MTBF, mean time before failure)
  • 15 years warranty without quibble, we trust our product will last !
  •  Safe for home installation and DIY jobs, the voltage is less than 50Vdc

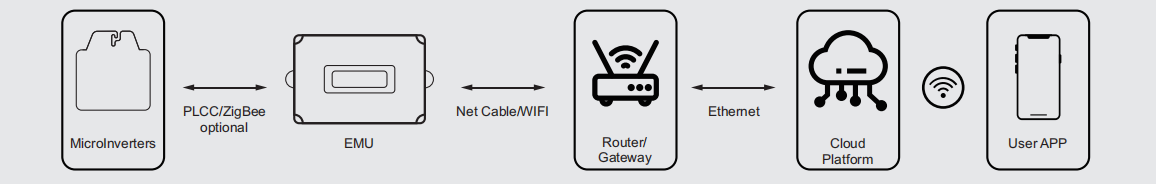

  • Module-level online monitoring, watch how each solar panel is performing and improve the energy yield by

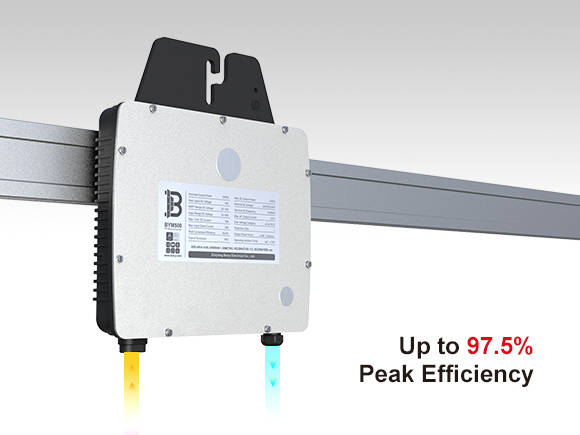

UP TO 97.5% PEAK EFFICIENCY

The peak efficiency of most microinverters on the market is around 96%. Voltacon’s newly developed microinverter has a Peak Efficiency of 97.5% and a European Efficiency of 97%. Higher efficiency allows you to convert more DC power from solar panels to AC power, allowing you to get more from your installation.

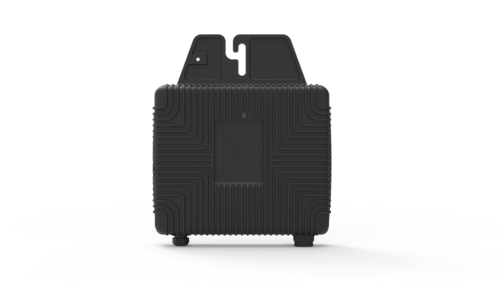

The solid aluminum heatsink with special anti-rust paint, provides the highest level of ingress protection IP67, it can be submersed in water or jet washed.



Specification

SPECIFICATION

Input Data(DC)

Model

BYM500/VMI500

BYM550/VMI550

BYM600/VMI600

Recommended



Input Power (STC)

(400~700)W Single, 60~75 full/120~150 sub cells

(300~450)W*2 Parallel, 72~75 full/144~150 sub cells

MPPT voltage range

24V-50V

Operating voltage range

16V-60V

Maximum DC input voltage

60V

Maximum short circuit input current

20A

Maximum continuous input current

18A

Output Data(AC)

Rated Output Power

500VA

550VA

600VA

Peak output power

520VA (Vac≥230,Vmp≥34)

570VA (Vac≥230,Vmp≥35)

620VA (Vac≥230,Vmp≥36)

Nominal voltage/range

230V/176-265V

Nominal frequency/range

50Hz/60Hz (46.5-62)Hz

Maximum continuous output current

2.27A

2.5A

2.73A

Harmonic Distortion

<3%

Power Factor

>0.99 (default)

Maximum number of branch connections

8 units (24A circuit breaker, 10AWG cable)

Efficiency

Peak efficiency

96.50%

European efficiency

96%

MPPT efficiency

>99.8%

Night power consumption

<100mW

Other parameters

Communication method

PLCC/Zigbee Optional

Safety protection class

Class I

Enclosure rating

IP67

Operating temperature

-40℃ to +70℃

Storage temperature

-40℃ to +85℃

Relative humidity

0-98%

Transformer design

High frequency transformer, Electrical isolated

Overvoltage class

OVC III (AC), OVC II (PV)

Dimension(mm)

210*230*34

Weight(kg)

2.39

Warranty

10 / 25years Optional

Safety Regulations

IEC/EN 61000-6, CISPR11+A1+A2, IEC/EN 62109-1/2,



EN 50549-1:2019 VDE-AR-N 4105:2018/DIN VDE

0124:2020, AS 4777.2 :2020, INMETRO, UTE C15-

712-1/DIN VDE 0126/VFR 2019, G98, CEI 0-21:2020,

NC RFG, NTS DAKKS.





Downloads

Technical Manual
