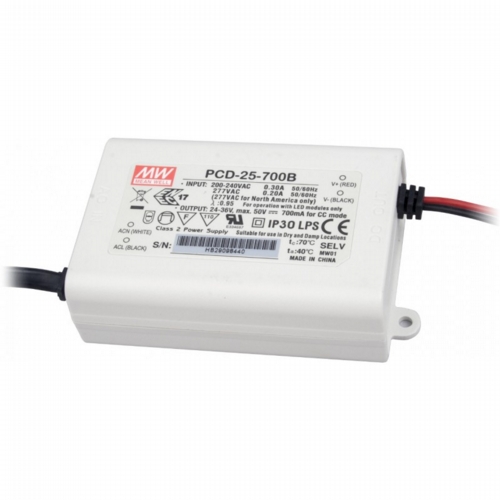

Meanwell LED Dimmable Driver 25W. 700mA

Ref: PCD-25-700

£22.40

Price inc VAT

Mains Dimmable Driver. AC Triac. 220-240VAC. 25Watt

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £21.73 Save 3%
12 Items £21.06 Save 6%
24 Items £20.61 Save 8%
Description
Specification
Downloads
Description

MEANWELL LED DRIVER 25W. AC TRIAC

The PCD-25-700b is a reliable LED driver with typical efficiency 81%. It controls without causing any flickering LED arrays between 24-36VDC. It is compatible with our LED tubes (T8/T5), PLG24 lamps, PLL2G11 and any LED light that can be powered from a 700mA constant current driver.

The AC triac LED drivers are contolled directly from the mains voltage using trailing and leading edge dimmer switches.

Product Description.

PCD Power Supplies are made by Mean Well are manufactured to support the indoor lighting market. The 16W and 25W AC  LED power supplies are suitable with  leading edge and trailing edge AC-TRIAC dimmers. There are two global utility inputs : 115VAC (90~135VAC) /type A and 230VAC (180~295VAC) /type B.

PCD drivers are manufactured with single stage power factor corrections (PCF) topology to comply with the requirements of power factor (PF≧0.9) and EN61000-3-2 Class C (current harmonic standard) for the LED lighting industry.

Specification

Technical Specifications of PCD-25-700

Manufacturer: MeanWell
Operation Mode: Constant Current (CC)
Output Current-Channel 1: 700 mA
Output Voltage-Channel 1: 24 V to 36 V
Output Power: 25.2 W
Input Voltage: 180 VAC to 295 VAC
Dimming: With Dimming
Number of Outputs: 1 Output
Mounting Style: Chassis
Length: 84 mm
Width: 57 mm
Height: 29.5 mm



Downloads

Technical Manual

Meanwell PCD-25-700b

AC Triac Mains Dimmable LED driver

Download
