Replaces56wCFL

LEDISON T8 LED 150cm, 22watt, Motion Sensor 4000K Natural White

Ref: T8-15022-XK-MS

£31.00

Price inc VAT

T8 Microwave Sensor LED TUBE 150cm 22Watt. Integrated Photocell. 5 Adjustable Brightness Levels

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £30.07 Save 3%
12 Items £29.14 Save 6%
24 Items £28.52 Save 8%
Description
Specification
Downloads
Description

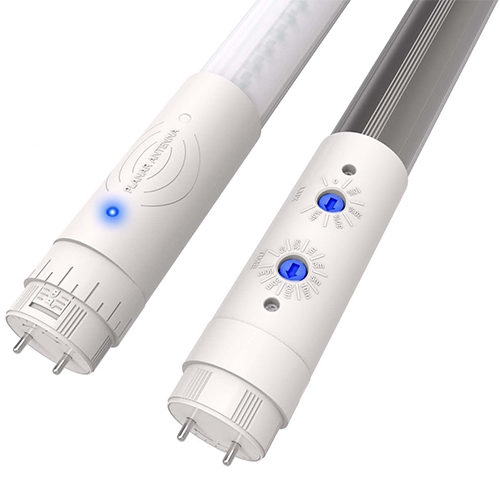

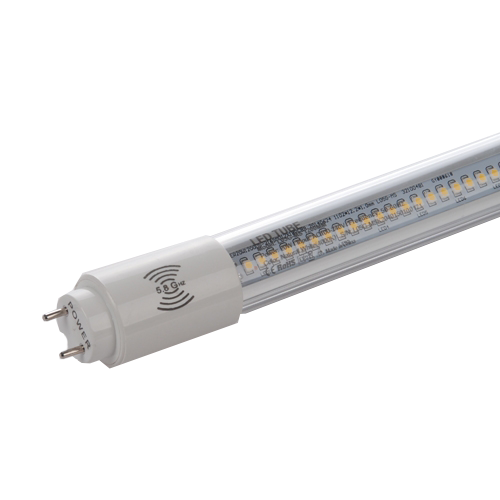

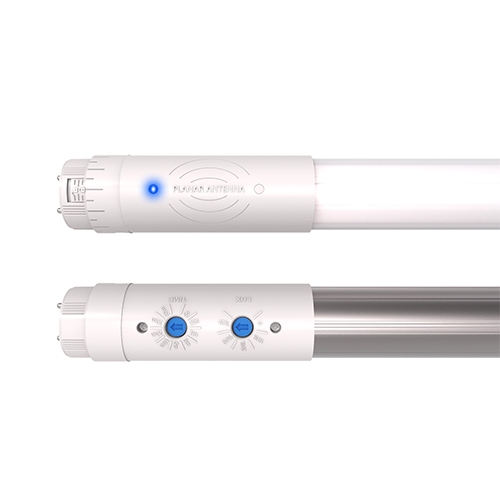

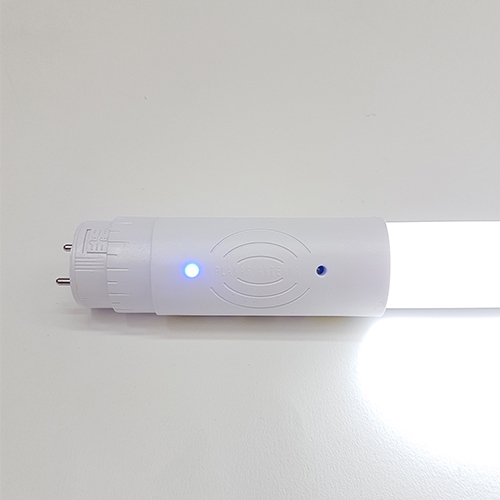

Microwave sensor T8 LED tube 150cm

With our Ledison T8 LED motion sensor bulb, the concept of LED based lighting has been reimagined. This is the first tube that allows the user to both schedule an automatic shut-off timer and to adjust the brightness of the tube. These features can help users save up to 70% over traditional LED tubes and up to 200% over fluorescent tubes. These are well used in spaces like garages, factories, and offices.

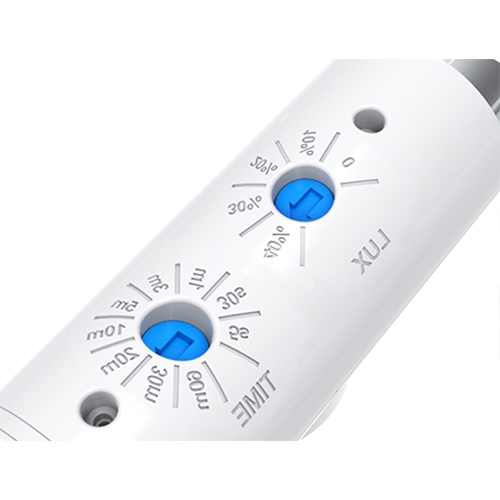

This tube offers five different brightness settings, nine different time intervals, and high-quality motion sensors that allow the tubes to activate when they are needed and stay illuminated for the right amount of time after motion has ceased.

Modes of operation

A. 2-Step Dimming
The T8 tube is switched on at 100% output.
The light output will be dimmed to 20% after 30 seconds
The tube will be permanantly on for infinite time until the next object is detected.

B. 3-Step Dimming
The tube is switced on when a moving object is detected.
The light brightness will be automitcally reduced to 20% after 30 seconds
The tube will be automatically switched off after 1 minute.

Utilizing the Doppler principle, radar signal is emitted and received to intelligently detect the surrounding environment. If there is a moving object within the detection range the tube will be fully light. If there aren't any moving objects within the detection range the light will act according to the customer's adjustment settings.

Maximum sensing height up to 10 meters

The maximum radius coverage is 25 meters.

For more information about this product please access PDF file from Download section



Specification

Specification: 150cm microwave sensor tube

Fitting:

T8

Luminous flux:

2310lm

Wattage (rated):

22 Watt

Color Rendering index:

>80

Voltage:

100-265Volt

Typical efficiency:

105lm/W

Line frequency:

50/60Hz

Beam Angle:

120deg.

Average lifetime:

50,000 hours

Net Weight per piece

380gr

Color Temperature:



Diameter

26mm

Warm white:



Length pin to pin

1513mm

Natural white:

4000K

Dimmable

NO

Cool white:



Warranty:

5 years

Operating Temp:

-40 OC to 50 OC

Certification:

TUV, ROHS Compliant, CE, UL

Number of LED Chips : 372

Downloads

Technical Manual

User manual for LEDISON T8 LED 150cm, 22watt, Motion Sensor 4000K Natural White

User manual for LEDISON T8 LED 150cm, 22watt, Motion Sensor 4000K Natural White

Download

LED T8 Tube with Integrated Sensor

LED T8 Tube with microwave sensor - Data Sheet

LED T8 Tube built in sensor - Specification Sheet

Download
