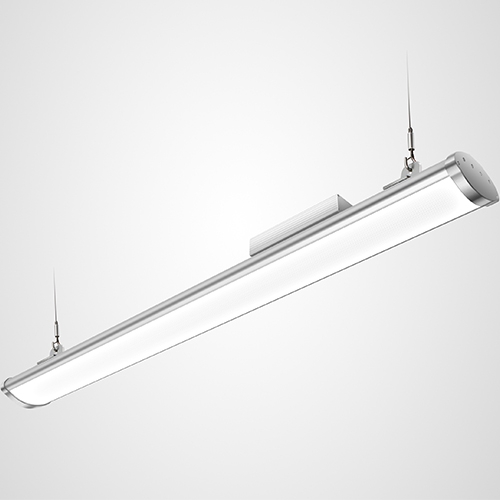

Linear LED Bay Light - 200Watt

From the No 1 brand in industrial lights, Voltacon developed a robust linear bay light with world class efficiency of 120lm/watt. The patented  light distribution with wide beam angle to cover every corner of every space. This is the most powerful version of our linear high/low bay lights and replaces 400W SON Lamps (over 12 meters ceiling)

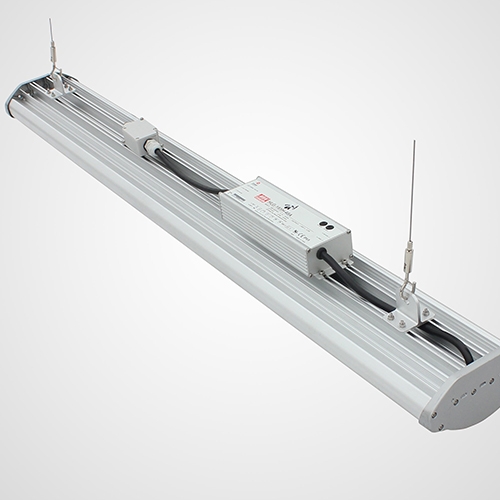

This bay light is powered by the Meanwell driver: HLG-240H-48A

Latest generation LED chips SMD2835: 672pcs

IK Rating

The IK Rating of the diffuser is IK10. Practically that means it is protected against 20 joules impact
which is equivalent to impact of 5kg mass dropped from 400 mm above impacted surface.

Certifications

The Linear LED lights are certified according to : TUV, UL, DLC, CE, RoHS, SAA. They meet the most rigorous international standards for electromagnetic compatibility, safety and energy performance.

Dimming Options and Control

We also offer the optios for DALI 1-10V dimmable version. By adding the dimming function more energy can be saved creating the appropriate lighting levels for your application.

IES Files and Data Sheets

The IES files for each colour temperature and power rating are available on request. Please email us for more information

MECHANICAL DIMENSIONS - 220W

1505 x 135 x 72mm, 6.6kg
