LED Strip Kit - 24V, 7.2W/meter
Ref: 601025£4.90
Price inc VAT
Bulk Savings £££ | ||
---|---|---|
# Items | Our Price | Savings |
6 Items | £4.75 | Save 3% |
12 Items | £4.61 | Save 6% |
24 Items | £4.51 | Save 8% |
LED STRIP LIGHT 8W/METER. 24V. WATER-RESISTANT
8W/METER AND 60 BRIGHT LED CHIPS PER METER
The favorite lighting gadget for interior designers and DIY hobbyists. The Diamanti series of ultra-low-power strips will create a warm atmosphere in your kitchen, bathroom, bedroom or in your living while you are watching your favorite movie.
Strips are the pinnacle of LED lighting, they are affordable, truly flexible and easy to install. They are suitable for decorative splashes or as general and accent light in offices and homes.

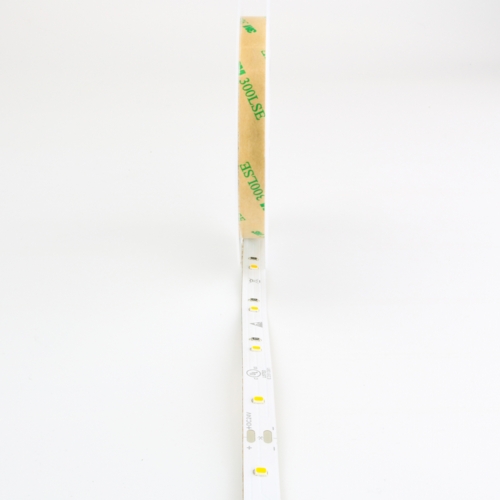

We have added in the box all the accessories and connectors for a Plug'n'Play job. The strong 3M self-adhesive tape at the back make the installation easy.

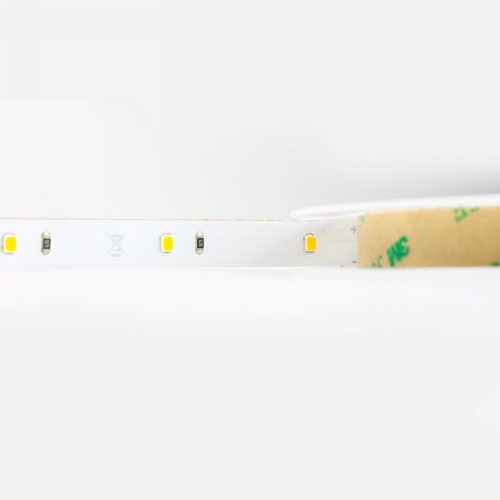

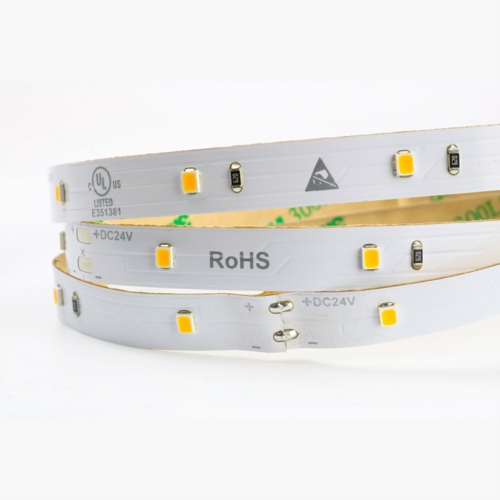

The strip lights of Ledison are extremely durable since we use commercial grade materials. There are 30 LED chips per meter of SMD2835 technology for intense, smooth and even light distribution. More importantly, there is no colour difference between different rolls. If you combine one or more strip lights from the same colour temperature, they will look exactly the same.
Using the designated cutting areas, the strip can be cut every 8 LEDs. A pair of sharp scissors is required to cut on the marked line. If you do not follow the line the electrical conductivity will be lost
IP54: The top is sprayed with silicon to protect the LED strips from humidity, steam or accidental damage.
WHAT IS IN THE BOX ?

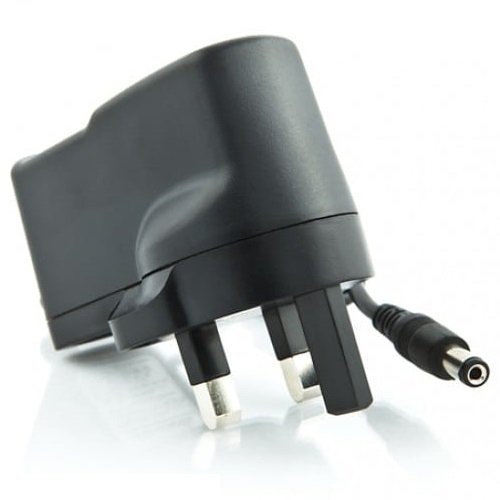

Cable and strip-connectors are supplied for solderless connections. There is also a certified power suppply (CB,GS,CE) with UK and EU plug 40watt
POWER SUPPLY REQUIREMENTS
40Watt Power Supply to power up to 5 meters, included in the box
Notice : It is very important to have a clean, smooth surface for the adhesive bonding to work
ULTRA EFFICIENT AND BRIGHT
- Resistant to any bending radius
- Bright LEDs with pure gold wire (99.99%)
- 4500 luminous flux for 5 meter strip or 900 lm per meter
- Pure copper double layer with white paint finish.
- 5 Year warranty offered as standard
- 8Watt/meter
THE BENEFITS OF 24V SYSTEM
The higher the DC voltage the lower the current (amps) that entails fewer power losses and a more efficient system. The 12V LED tapes require a double amount of amperage, the voltage drop influences the performance of the lighting system.
The 24V in perfectly tuned to run a long single piece of LED strip up to 30 meters with a single power supply.
ACCURATE RENDERING
A quality light source should accurately render all the frequencies of the color spectrum when it is compared to the perfect light of the same colour temperature. The picture below is selft explanatory. Our lights show realistically and naturally object colors.
Complete Table with Electrical Characteristics
Low Lumen LED Strip Light
Fitting: |
LED Strip |
Luminous flux: |
500 lumen / meter |
Wattage/Meter |
6 Watt |
Color Rendering index: |
>90 |
Voltage: |
24 Volts DC |
Typical efficiency: |
83lm/W |
Lenght |
5 Meters |
Beam Angle: |
120° |
Lasts up to |
50,000 hours |
Material |
Copper |
Colour |
|
Width |
10mm |
Warm white: |
3000K |
SMD pcs/m |
30 |
Natural white: |
4000K |
Dimmable |
YES |
Cool white: |
5500K |
Warranty: |
5 years |
Operating Temp: |
-25 OC to 50 OC |
Certification: |
TUV, ROHS Compliant, CE, UL |

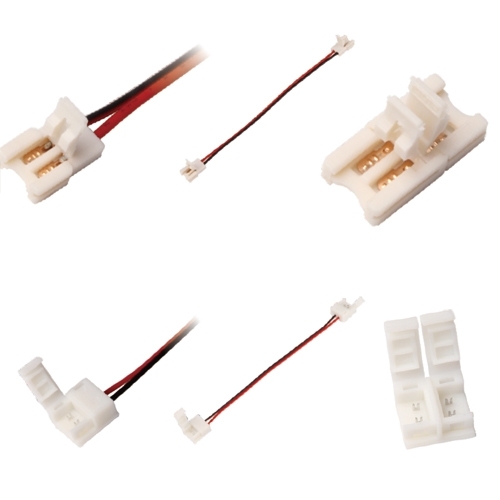

Rapid Connectors
Fast connection between two LED strips with 10mm width. Special electrical tools are not required. The connectors are insulated and provide protection of any risk of electrical hazard.
The red-case power blocks are suitable for 22-18AWG wires, they support mains voltage up to 240VAC. There is no need for stripping the cables, eliminating the risk of exposed wires.
