LED STRIP KIT - 24V, 12W/METER

Ref: 601003

£5.50

Price inc VAT

Diamanti, 128 LED per meter, indoor use, flexible strip. Including power supply. 1m, 3m & 5m.

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £5.34 Save 3%
12 Items £5.17 Save 6%
24 Items £5.06 Save 8%
Description
Specification
Description

LED Strip Light Kit.  IP33 Indoor Flexible Tape. Cuttable & Self-Adhesive

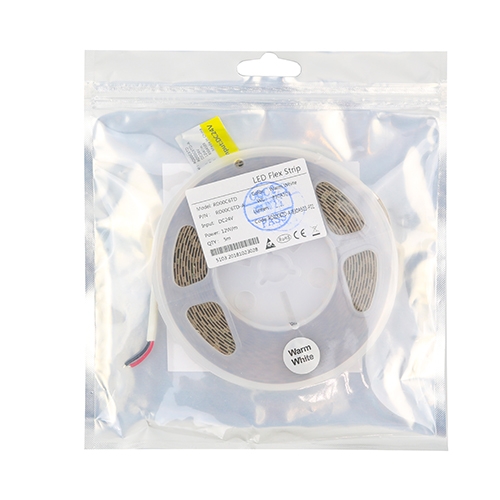

Sold in 1m, 3m and 5m rolls.

Strips are the pinnacle of LED lighting, they are affordable, trully flexible and easy to install. LED Strips are suitable for decorative splashes or as general and accent light in offices and homes.

We have added in the box all the accessories and connectors for a plug'n'play job. The strong 3M self-adhesive tape at the back make the installation easy.

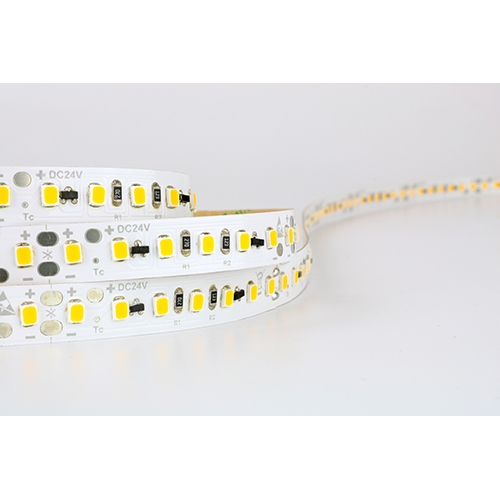

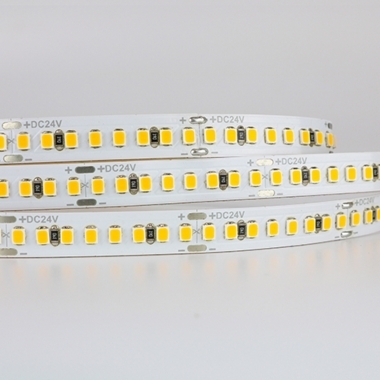

The strip lights of Ledison are extremely durable since we use commercial grade materials. There are 128 LED chips per meter of SMD2835 technology for intense, smooth and even light distribution. More importantly, there is no colour difference between different rolls. If you combine one or more strip lights from the same colour temperature, they will look exactly the same.

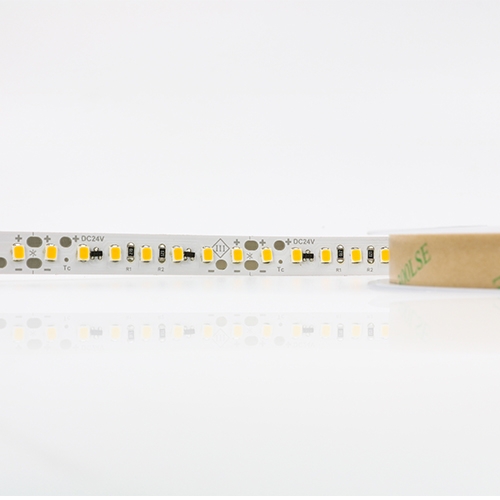

Using the designated cutting areas, the strip can be cut every 8 LEDs. A pair of sharp scissor is required to cut on the marked line. If you do not follow the line the electrical conductivity will be lost.

Power Supply Requirements

According to the meters that you will use and the layout of the installation you will require the following powe supplies

60Watt Power Supply for the whole strip 5m

36Watt Power Supply for less than 3m

Notice : It is very important to have a clean, smooth surface for the adhesive bonding to work

Ultra Efficient and Bright

  • Resistant to any bending radius
  • Bright LEDs with pure gold wire (99.99%)
  • 1870 luminous flux
  • Pure copper double layer with white paint finish.
  • 5 Year warranty offered as standard

The benefits of 24V System

The higher the DC voltage the lower the current (amps) that entails less power losses and more efficient system. The 12V LED tapes require double amount of amperage, the voltage drop influences the performane of the lighting system.

The 24V in perfectly tuned to run long single piece of LED strip up to 30 meters with as single power supply.

Accurate Rendering

A quality light source should accurately render all the frequencies of the colour spectrum when it is compared to the perfect light of the same colour temperature. The picture below is selft explanatory. Our lights show realistically and naturally object colours.



Specification

Fitting:

LED Strip

Luminous flux:

1870 lumen / meter

Wattage/Meter

12 Watt

Color Rendering index:

>90

Voltage:

24 Volts DC

Typical efficiency:

160lm/W

Lenght

5 Meters

Beam Angle:

180°

Lasts up to

50,000 hours

Material

Copper

Colour



Width

10mm

Warm white:

3000K

SMD pcs/m

128

Natural white:

4000K

Dimmable

YES

Cool white:

5500K

Warranty:

5 years

Operating Temp:

-25 OC to 50 OC

Certification:

TUV, ROHS Compliant, CE, UL

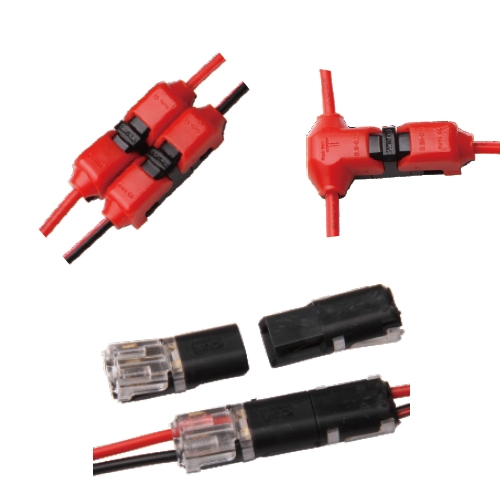

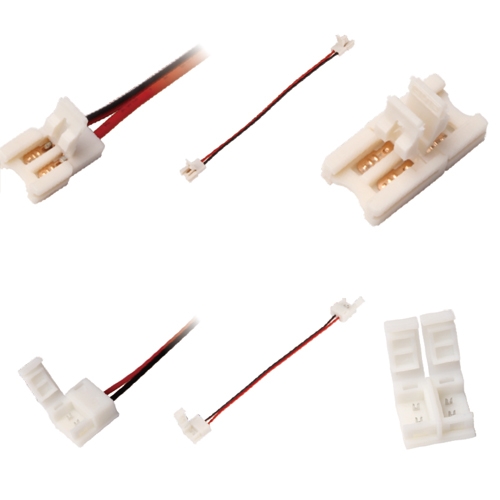

Cable Connectors

Fast connection between two LED strips with 10mm width. Special electrical tools are not required. The connectors are insulated and provide protection of any risk of electrical hazard.

The red-case power blocks are suitable for 22-18AWG wires, they support mains voltage up to 240VAC. There is no need for stripping the cables, eliminating the risk of exposed wires.
