Ref: LED-BLH-80W


Price inc VAT

A futuristic LED Bay Light with Philips SMD 3030 chips.Ideal replacement for 250W metal halide and sodium lighting

Bulk Savings £££
# Items Our Price Savings
6 Items £106.70 Save 3%
12 Items £103.40 Save 6%
24 Items £101.20 Save 8%

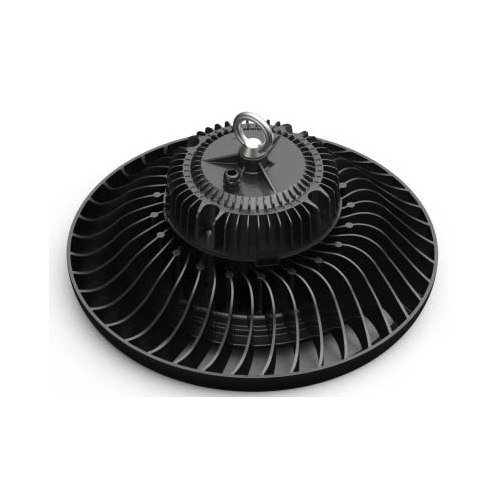

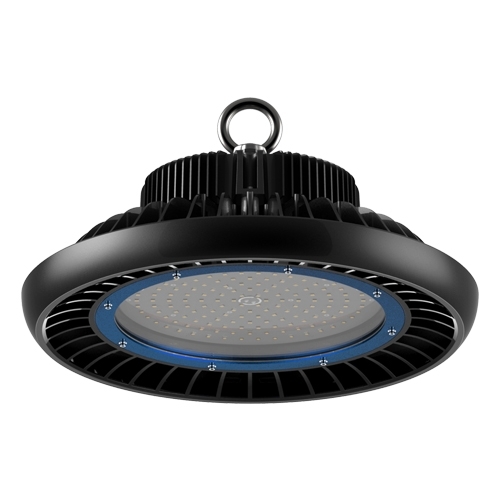

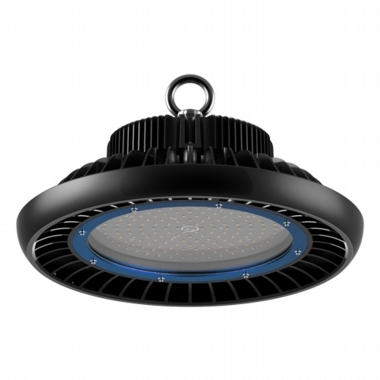

LED High/Low Bay Light 80Watt

The ideal replacement for metal halide and high pressue sodium lamps. The shower style LED bay light has an impressive lumen output of 9600 lumen. This is a replacement for SON lamps and bay lights up to 250W.

The main housing is aluminium die-case that accomodates the power supply on top. The cooling is achieved by natural convection. We created a special geometry wto transfer the heat from the solid metal casing to air with multiple fins on the heatsink.

There is also space between the LED Driver and the light-engine (a copper-based board with SMD3030 chips), to allow circulation of air and avoid hot-spots inside the bay light

Main Features

  • Modern shape made of aluminium. Electrostatic paint
  • Impressive design suitable for commercial and industrial areas
  • IP65 rating with solid aluminium heatsink and integrated power supply
  • Supplied with pre-installed cables and eye-hooks
  • Quality that last and last....over 50,000 hours of bright light.
  • 120 Lumens per Watt

Watch the Product Video on our Youtube channel

This UFO (or Showerhead) LED Bay covers any commercial application from 3 meter ceilings up to 15meters. The narrow beam angle of 60° (110 deg default) increases the lux levels up to 20%. Our industrial lighting solutions are the most economical in the market with shortest pay back period.


 Inside the LED High/Low Bay Light


Feutures for a trully versatile LED bay light

  • Dimmable wit DALI system
  • Emergency battery pack with Ni-Cd batteries
  • A Hytronik microwave sensor can be mounted on the bay light for an extra £35.00. The maximum detection range is 15meters.

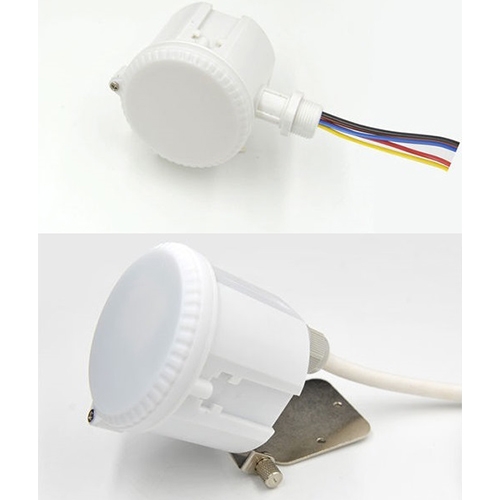

Microwave Sensor for High Bay Lights

Using the MC054 RC + MH01 microwave motion sensor, the High Bay Light will be turned on when movement is detected. If the detection range and hold-on time needs to be adjusted, this can be easily programmed using the remote control, no need to use lifting equipment to reach the light fitting again.

The sensor has automated dimming function when it is combined with 1-10V LED driver.

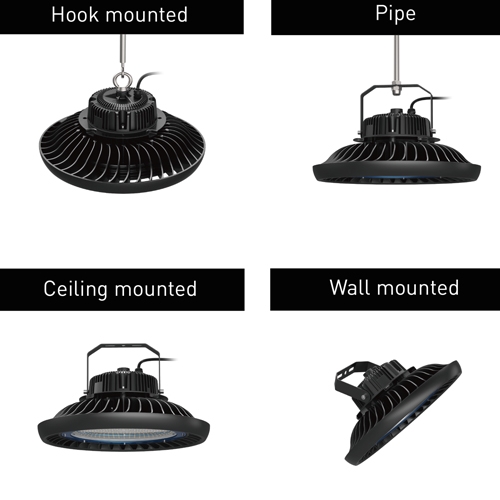

Mounting Accesories for LED High/Low Bay

/media/s_products/library/eybolt-bay-llight.jpg                                    /media/s_products/library/mounting-bracket-shower-bay-light.jpg

Eyebolt Steel Hook it is included, Steel mounting brackets sold separatley depending on customer choice.


Specification LED High/Low Bay Light. 80W with SMD3030 Chips


High Low Bay

Luminous flux:

9600 lumens

Wattage (rated):

80 Watt

Color Rendering index:




Typical efficiency:


Line frequency:


Beam Angle:


Average lifetime:

50,000 hours

Net Weight per piece


Color Temperature:




Warm white:


LED Chips Philips

SMD 3030 (100 pieces)

Natural white:



YES as an option

Cool white:



5 years

Operating Temp:

-25 OC to 50 OC


TUV, ROHS Compliant, CE, UL


Standards & Certification

Operating Temperatures

Type of protection


Operating temperature


Dielectric strength


Ambient temperature -40~+50℃

Safety features

Open circuit protection
Short circuit protection
Overvoltage protection
Storage temperature -40~+80℃


American market: UL, DLC Premium, cUL
European market: TUV, GS, CB, CE,  D-Mark
Australian market: SAA, CTick,RCM

Energy Class

A+ & A++


280mm diameter. 143mm height. Including the mounting kit 168mm height

Weight: 3kg
