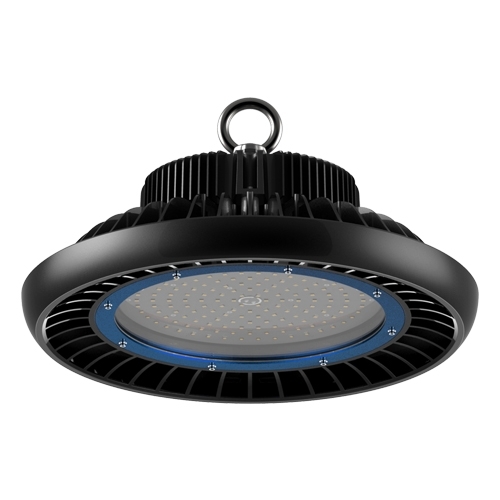

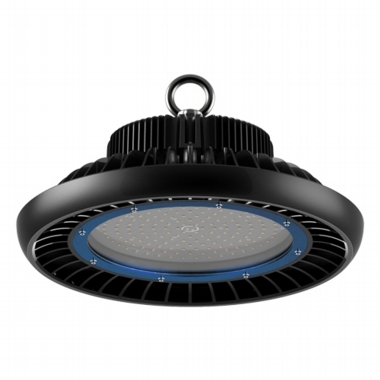

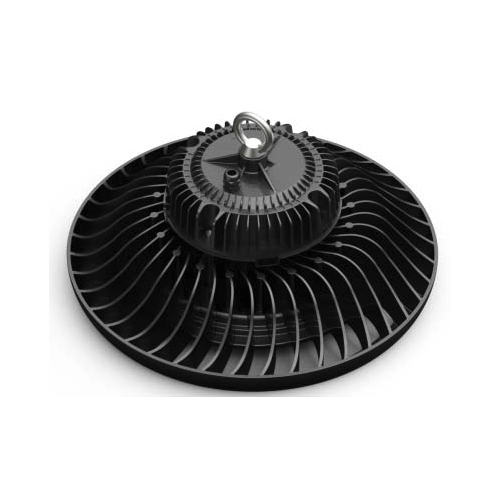

LED SHOWER LOW HIGH BAY LIGHT 240W

Ref: LED-BLH-240W

£169.00

Price inc VAT

A futuristic LED Bay Light with Philips SMD 3030 chips.Ideal replacement for 400W metal halide and sodium lighting

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £163.93 Save 3%
12 Items £158.86 Save 6%
24 Items £155.48 Save 8%
Description
Specification
Description

LED High/Low Bay Light 240Watt

The ideal replacement for metal halide and high pressue sodium lamps. The shower style LED bay light has an impressive lumen output of 16,650 lumen. This is a replacement for SON lamps and bay lights up to 400W.

The main housing is aluminium die-case that accomodates the power supply on top. The cooling is achieved by natural convection. We created a special geometry wto transfer the heat from the solid metal casing to air with multiple fins on the heatsink.

There is also space between the LED Driver and the light-engine (a copper-based board with SMD3030 chips), to allow circulation of air and avoid hot-spots inside the bay light

Main Features

  • Modern shape made of aluminium. Electrostatic paint
  • Impressive design suitable for commercial and industrial areas
  • IP65 rating with solid aluminium heatsink and integrated power supply
  • Supplied with pre-installed cables and eye-hooks
  • Quality that last and last....over 50,000 hours of bright light
  • 120 Lumens per Watt

Watch the Product Video on our Youtube channel

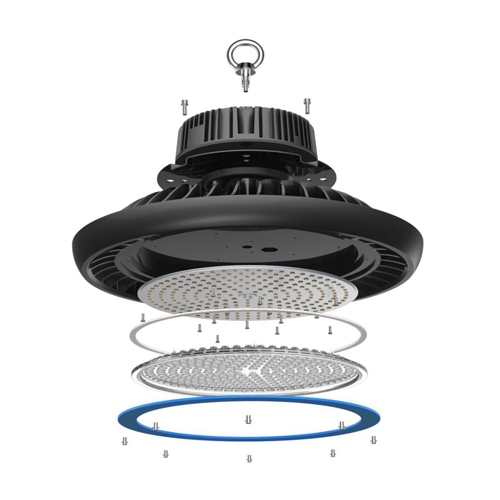

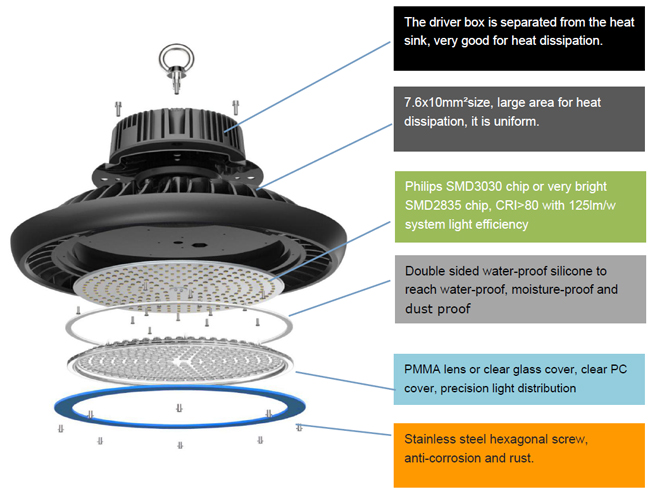

 Inside the LED High/Low Bay Light

/media/s_products/library/led-shower-bay-light-structure.jpg

Feutures for a trully versatile LED bay light

  • Dimmable wit DALI system
  • Emergency battery pack with Ni-Cd batteries
  • A Hytronik microwave sensor can be mounted on the bay light for an extra £35.00. The maximum detection range is 15meters.

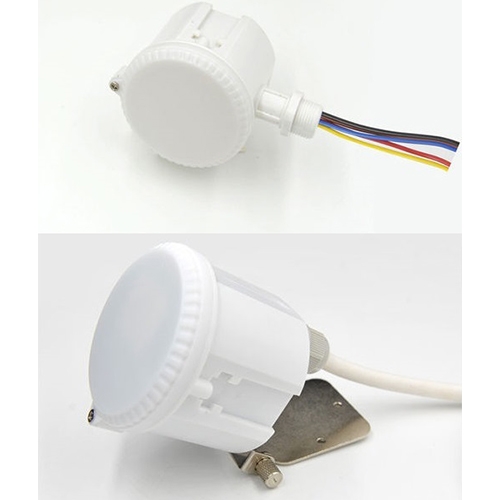

Microwave Sensor for High Bay Lights

Using the MC054 RC + MH01 microwave motion sensor, the High Bay Light will be turned on when movement is detected. If the detection range and hold-on time needs to be adjusted, this can be easily programmed using the remote control, no need to use lifting equipment to reach the light fitting again.

The sensor has automated dimming function when it is combined with 1-10V LED driver.

This UFO (or Showerhead) LED Bay covers any commercial application from 3 meter ceilings up to 15meters. The narrow beam angle of 60° (110 deg default) increases the lux levels up to 20%. Our industrial lighting solutions are the most economical in the market with shortest pay back period.

/media/s_products/library/ufo_showerhead_led-bay-light-complete-range-80w_240w.jpg

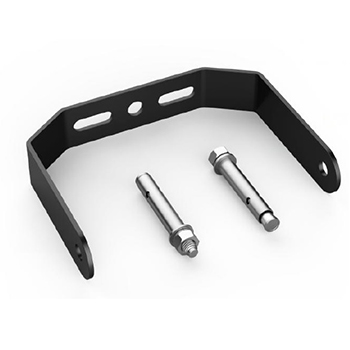

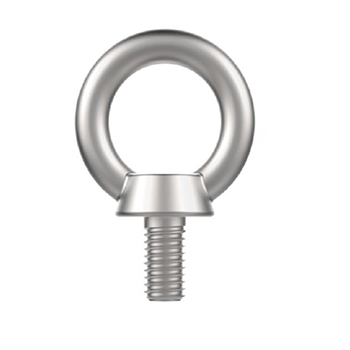

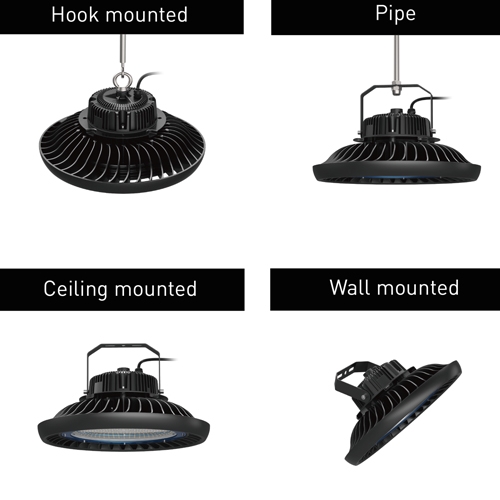

Mounting Accesories for LED High/Low Bay

/media/s_products/library/eybolt-bay-llight.jpg                                    /media/s_products/library/mounting-bracket-shower-bay-light.jpg

Eyebolt Steel Hook it is included, Steel mounting brackets sold separatley depending on customer choice.

Specification

Specification LED High/Low Bay Light. 240W with SMD3030 Chips

Fitting:

High Low Bay

Luminous flux:

28800 lumen

Wattage (rated):

240 Watt

Color Rendering index:

>80

Voltage:

100-265Volt

Typical efficiency:

120lm/W

Line frequency:

50/60Hz

Beam Angle:

110deg.

Average lifetime:

50,000 hours

Net Weight per piece

9kg

Color Temperature:



Diameter

Φ460*460*250

Warm white:

3000K

LED Chips Philips

SMD 3030 (252pieces)

Natural white:

4000K

Dimmable

YES as an option

Cool white:

5500K

Warranty:

5 years

Operating Temp:

-25 OC to 50 OC

Certification:

TUV, ROHS Compliant, CE, UL

 Option: A narrow beam angle at 60° is available upon request. The default bay light is made with 110 deg beam angle.

Standards & Certification

Operating Temperatures

Type of protection

IP65

Operating temperature

-20~+69℃

Dielectric strength

3.75kVac

Ambient temperature -40~+50℃

Safety features

Open circuit protection
Short circuit protection
Overvoltage protection
Storage temperature -40~+80℃

Certificates

American market: UL, DLC Premium, cUL
European market: TUV, GS, CB, CE,  D-Mark
Australian market: SAA, CTick,RCM


Energy Class

A+ & A++

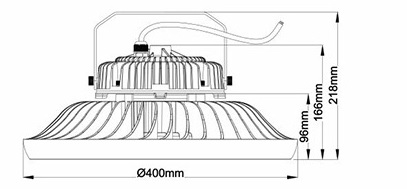

Dimensions

 /media/s_products/library/240w-high-bay-ufo-light-dimensions.jpg
