LED Driver 20W AC-Triac Dimmable. 700mA
Ref: VP-DR-CC20£16.90
Price inc VAT
| Bulk Savings £££ | ||
|---|---|---|
| # Items | Our Price | Savings |
| 6 Items | £16.39 | Save 3% |
| 12 Items | £15.89 | Save 6% |
| 24 Items | £15.55 | Save 8% |

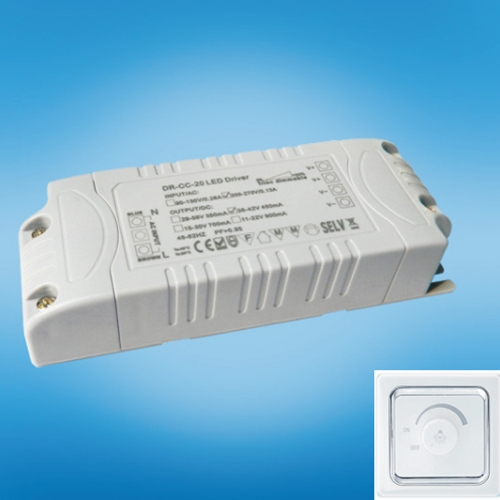

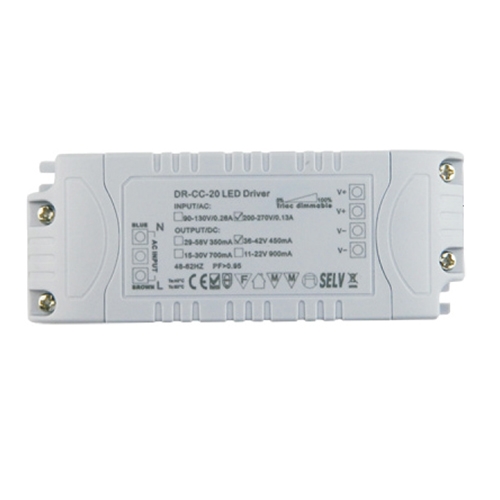

VOLTACON LED DRIVER 20Watt - 500mA. AC TRIAC Dimmable
The new led driver from Voltacon Power has a slim fully insulated housing with 23mm heigh and 108mm lenght. It is safe to be used in commercial and domestic appplications, the isolation between the mains and dc output is achieved with a high efficiecy transformer that is integrated in the power supply.
The power supply can control LED arrays up to 20W with 36-42Vdc voltage. It is worth mentioning that the plastic case of the driver is fireproof.
LED Lighting Applications
- Triac Dimmable
- AC Mains control without additional wires
- Compatible with most leading/trainilig edge dimmers
- Constant current output 500mA
- Short circuit, over load and over voltage protection circuit.
- Active power factor correction

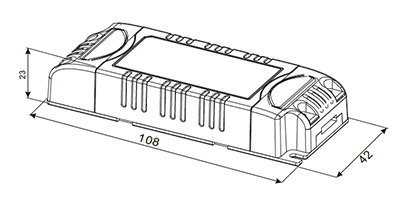

Dimensions
ELECTRICAL SPECIFICATIONS - 20W MAINS DIMMABLE POWER SUPPLY
|
Wattage (rated): |
20 Watt |
Weight: |
104 gr |
|
Voltage: |
180-240Volt |
Dimensions |
108x42x23mm |
|
Line frequency: |
50/60Hz |
Efficiency |
80% |
|
Average lifetime: |
50,000 hours |
Net Weight per piece |
150gr |
|
Input Current: |
0.26A |
Output Voltage |
20-40VDC |
|
Warranty: |
5 years |
Output Current |
500mA |
Comformity and Standards
The VP-DR-CC20 complies with EN standards for safety and electromagnetic compatibility.
EMI: EN55022 EN55015 Class B
Safety:EN60598
Electromagnetic Compatibility:EN61547,ENV5024 EN61000-4-2/3/4/6/8/11
Harmonic Current Emissions: EN61000-3-2, EN61000-3-3
