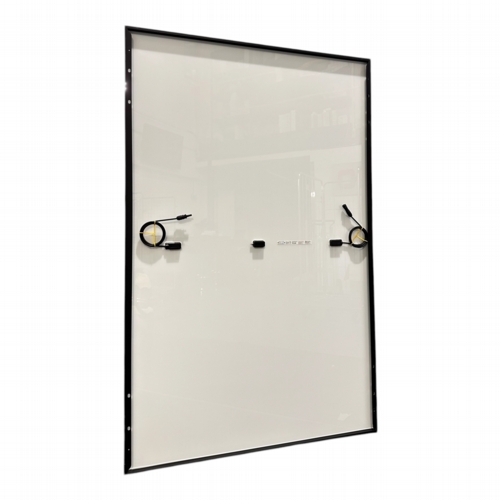

JA Solar Panel 465watt Monocrystalline All Black N-Type Dual Glass
Ref: JAM54D41-465LR£72.00
Price inc VAT
| Bulk Savings £££ | ||
|---|---|---|
| # Items | Our Price | Savings |
| 6 Items | £69.84 | Save 3% |
| 12 Items | £67.68 | Save 6% |
| 24 Items | £66.24 | Save 8% |
JA Solar 465W N-Type Full Black Solar Panel
The JA Solar JAM54D41-465/LR is a premium 465W monofacial solar panel designed for strong output, long service life and a sleek full black finish. It is well suited to residential and commercial rooftop systems, as well as hybrid and off-grid solar installations.
Built with advanced N-type monocrystalline cell technology and durable double-glass construction, this panel offers excellent long-term reliability, strong low-light performance and improved power retention over time. Its high 23.3% module efficiency also helps you make better use of available roof space.
Key Features
- High 465W rated output
- 23.3% module efficiency
- Advanced N-type monocrystalline cell technology
- Double-glass construction for added durability
- Premium full black appearance
- Low degradation profile for long-term performance
- Excellent low-irradiance response
- Stäubli MC4-EVO2 connectors fitted
- Suitable for residential and commercial rooftop systems
Why Choose This Panel
This JA Solar module combines modern cell technology with a robust all-weather design. It is rated for snow loads up to 5400 Pa and wind loads up to 2400 Pa, making it a dependable choice for long-term outdoor use. With a 25-year product warranty and 30-year linear power warranty, it is a strong option for buyers seeking premium solar performance and confidence in the product.
Applications
- Residential rooftop solar systems
- Commercial rooftop installations
- Premium all-black solar arrays
- Hybrid and off-grid systems
Technical Summary
- Manufacturer: JA Solar
- Model: JAM54D41-465/LR
- Panel Type: Monofacial, double glass, all black
- Cell Technology: N-type monocrystalline
- Rated Power: 465W
- Module Efficiency: 23.3%
- Dimensions: 1762 x 1134 x 30mm
- Weight: 22kg
Electrical Specifications (STC)
| Rated Maximum Power (Pmax) | 465W |
| Open Circuit Voltage (Voc) | 41.45V |
| Maximum Power Voltage (Vmp) | 34.01V |
| Short Circuit Current (Isc) | 14.44A |
| Maximum Power Current (Imp) | 13.67A |
| Module Efficiency | 23.3% |
| Power Tolerance | 0 ~ +5W |
| Temperature Coefficient of Isc | +0.046%/°C |
| Temperature Coefficient of Voc | -0.260%/°C |
| Temperature Coefficient of Pmax | -0.300%/°C |
| STC Conditions | Irradiance 1000W/m², Cell Temperature 25°C, AM1.5G |
Electrical Specifications (NOCT)
| Maximum Power (Pmax) | 350W |
| Open Circuit Voltage (Voc) | 39.08V |
| Maximum Power Voltage (Vmp) | 31.99V |
| Short Circuit Current (Isc) | 11.64A |
| Maximum Power Current (Imp) | 10.95A |
| NOCT | 45 ± 2°C |
Mechanical Specifications
| Cell Type | N-type Monocrystalline |
| Number of Cells | 108 (6 x 18) |
| Dimensions | 1762 x 1134 x 30 mm |
| Weight | 22 kg |
| Front Glass | 1.6 mm tempered glass |
| Rear Glass | 1.6 mm tempered glass |
| Frame | Anodised aluminium alloy |
| Junction Box | IP68 rated |
| Output Cables | 4 mm², cable length 300 mm or customised length |
| Connector | QC 4.10-35I / MC4-EVO2A |
Operating Conditions
| Maximum System Voltage | 1500V DC |
| Operating Temperature | -40°C to +85°C |
| Maximum Series Fuse Rating | 25A |
| Maximum Static Load, Front | 5400 Pa |
| Maximum Static Load, Back | 2400 Pa |
| Fire Performance | UL Type 1 |
Warranty
| Product Warranty | 25 Years |
| Linear Power Warranty | 30 Years |
| First Year Degradation | 1% |
| Annual Degradation Thereafter | 0.4% |
| Power Output at 30 Years | 87.4% |
