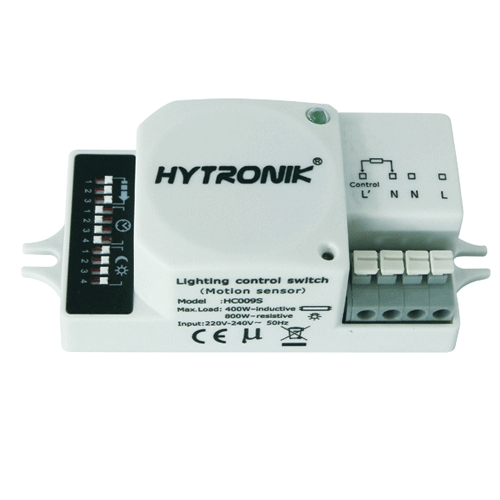

Hytroink HC009S Microwave Sensor
Ref: LDN-HC009S£24.50
Price inc VAT
| Bulk Savings £££ | ||
|---|---|---|
| # Items | Our Price | Savings |
| 6 Items | £23.77 | Save 3% |
| 12 Items | £23.03 | Save 6% |
| 24 Items | £22.54 | Save 8% |
Hytronik HC009S. Accurate Movement Detection With Microwave Sensor
Product Description
On-Off Function
This sensor is a motion switch, turn on the light on detection of people movement, and turn off after a pre-selected hold time when there is no people around. A daylight sensor is also built-in to switch off the light when there is sufficient natural light.
The HC009S is the advanced series of microwave movement sensors with adjustable settings. To achieve the correct detection range and hold-on time the following parameters can be adjusted.
- 1-16meters detection range
- Hold-on time from 5seconds to 30 minutes
- Integrated photocell, its function can be enable or disable
- Detection range 12m x6m
Wiring Diagram & Instructions Manual.
For more information visit our library section (click here)
Technical Specifications
|
Operating Volts |
220-240V |
|
Switched Power |
400W |
|
Standby Power |
0.6W |
|
Operation Power |
1.2W |
|
Detection area |
10/25/50/75/100% |
|
Hold Time |
10s/30s/90s/6min/20min/30min |
|
Sensor Principle |
Microwave motion detector |
|
Daylight threshold |
5-50lux daylight/twilight/darkness |
|
Microwave Frequency |
5.8GHz +/- 75MHz |
|
Microwave Power |
<1mW |
|
Detection Range |
Max: 18m x12m |
|
Detection Angle |
30-150 deg |
|
Mounting Height |
Max 6m |
|
Operating Temperature |
-10deg t0 +60 deg |
|
IP Rating |
IP20 |
Technical Manual
