Hybrid Solar Inverter 5.5kW 230V Compatible Lithium Ion Pylontech Battery

Ref: ESS-5.5KW

£1,690.00

Price inc VAT

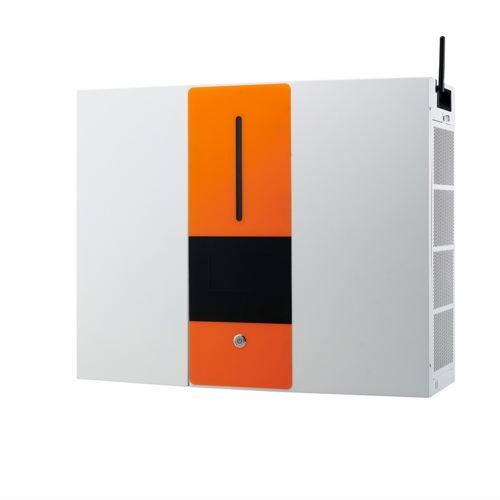

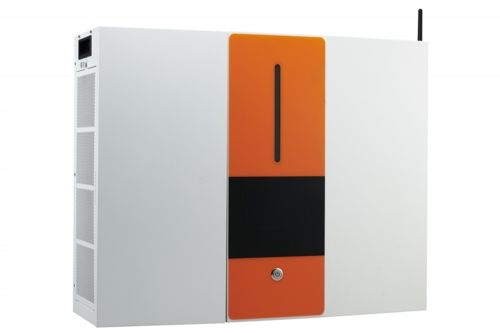

The center of an energy storage system is the 5.5kW inverter with a 6500W MPPT Dual Charger. Controlled export power from 0W to 5500W. Wi-Fi, BMS Communication. Wall mounted unit expandable lithium batteries.

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £1,639.30 Save 3%
12 Items £1,588.60 Save 6%
24 Items £1,554.80 Save 8%
Description
Specification
Downloads
Description

Voltacon Energy Storage System -ESS Hybrid Inverter 5500Watt

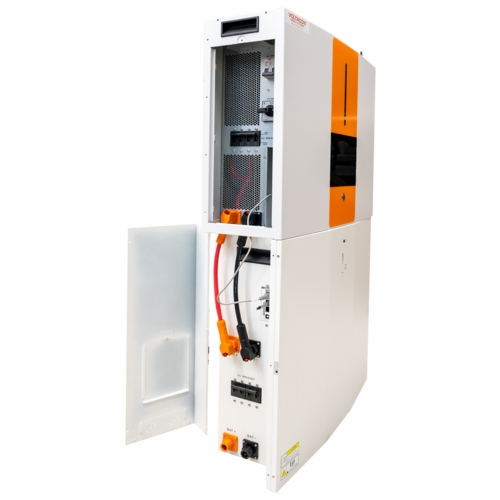

The inverter is designed exclusively by Voltacon and works with all types of AGM and flooded batteries or lithium batteries at 48V from Pylontech. The DC battery terminals are made ready for connection to any battery type but the BMS is only programmed to accept the US2000C, US3000C, and US5000C.

The batteries are sold separately and we added the following options

Option 1

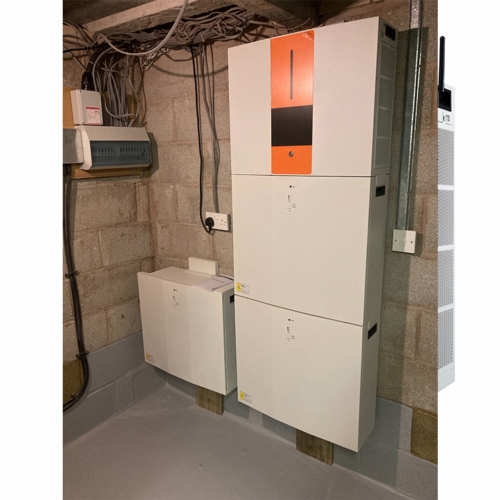

Lithium-ion 5kWh with ACE lithium-Ion cells. This type is fabricated in a metallic white housing that matches the shape of the inverter, it is the perfect solution to create a stackable system with an inverter and one or two batteries. It saves space and the installation procedure is safe and easy.

Option 2
Pylon Technologies offer three batteries that are easily expandable to several kWh, now it is possible to connect up to 16 batteries without an external communication hub.

Available to buy from our store

Specification
MODEL ESS 5.5KW
Maximum PV Input Power 6500 W
Rated Output Power 5500 W
Maximum Charging Power 2880 W
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage 360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage 116 VDC / 150 VDC
MPP Voltage Range 120 VDC ~ 450 VDC
Number of MPP Trackers / Maximum Input Current   2 / 2 x 13 A
GRID OUTPUT
Nominal Output Voltage 208/220/230/240 VAC
Output Voltage Range 184 - 264.5 VAC*
Max. Output Current 23.9A*
Maximum Conversion Efficiency (DC/AC) 96%
European Efficiency @ Vnominal 95%
AC INPUT
AC Start-up Voltage / Auto Restart Voltage 120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range  170 -280 VAC
Maximum AC Input Current  40 A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 208/220/230/240 VAC
Maximum Conversion Efficiency (DC/AC) 93%
BATTERY & CHARGER
Nominal DC Voltage 48 VDC
Maximum Charging Current 100 A
PHYSICAL
Dimension, D X W X H (mm) 214 x 621 x 500
Net Weight (kgs) 25
STANDARD
Compliance Safety IEC/EN 62109-1/-2, IEC 62040-1, EN 61000-6-4, EN IEC 61000-6-2, EN IEC 61000-3-11, EN 61000-3-12, IEC 61727, IEC 62116, G99, NRS 097-2-1,
EN 50549-1
BATTERY MODULE  ESS II-4810
CAPACITY 5120Wh
PARAMETERS
Norminal Voltage 51.2VDC
Full Charge Voltage(FC) 56V
Full Discharge Voltage(FD) 42V
Typical Capacity 100 Ah
Max Continuous Discharging Current 150A
Max Discharging Current 192A at 1min
Protecttion BMS, breaker
Charge Voltage 56V
Charge Current  20A (0.2C)
Maximum Charge current 50A (0.5C)
Standard Charge method 0.2C CC (Constant current) charge to FC,
CV (Contstant voltage FC) charge till charge current decline to <0.05C
Inner Resistance ≤20m ohm
PHYSICAL
Dimension, D X W X H (mm) 214 x 621 x 550
Net Weight (kgs) 25
STANDARD
Compliance Safety IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3
Downloads

Technical Manual
