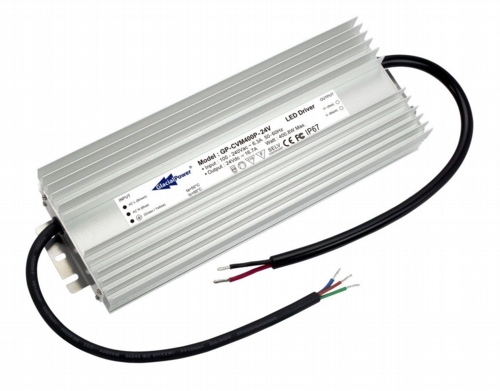

Glacial LED Driver 24V 400Watt. Constant Voltage for LED Strips

Ref: GP-CVM400P-24V

£57.00

Price inc VAT

IP67 Metal Enclosure, LED Power Supply, 200Watt, Suitable for LED Strip Lights 24V

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £55.29 Save 3%
12 Items £53.58 Save 6%
24 Items £52.44 Save 8%
Description
Downloads
Description

GLACIAL LED Strip Light Power Supply. 400W

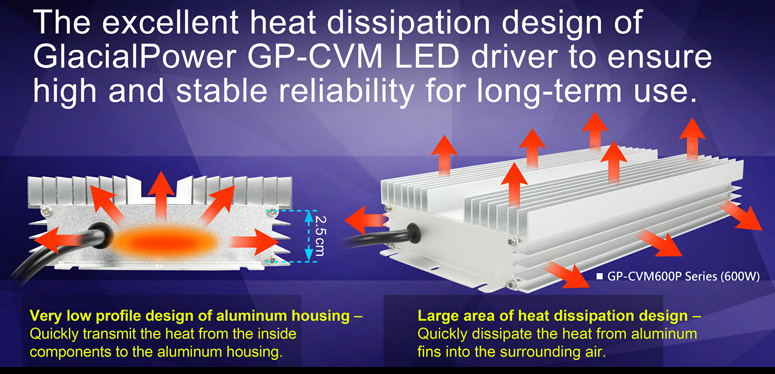

LED drivers are the most critical parts of a lighting system. The 200W is featuring an outstanding capability to power loads in dusty, oily, high-vibration and humid places. The aluminium housing is potted with head-conducted silicone, the combination of these cooling techniques enhances the thermal capability of the driver. It will work without any compromises from -30°C and +50°C under free air convection.

The GP-CVM400P series feature a fully isolated metal housing with aluminum material; it comes in an IP67-rated dust and waterproof enclosure suitable for outdoor as well as indoor use. The new series include the features of over current protection (OCP), short circuit protection (SCP), over-temperature protection (OTP) and over voltage protection (OVP). These features protect the LED driver and lighting fixture to ensure a long lifespan.

Continious Electrification without Stops.

  • Total efficiency at full load 93%
  • Active power factor correction 0.98
  • Insulated case with IP67 protection
  • Free air convection
  • No load consumption less than 0.5W
  • Ideal power source for led strip and moving sign applications.
Dimensions

300 x 98 x 35mm



Key Characteristics

  • Universal AC Input Range 90 ~ 264Vac.
  • Constant Voltage Operation.
  • Built‐in Active PFC Function.
  • Protections: OVP / OCP / SCP / OTP.
  • High Efficiency 92.5% ~ 93%.
  • Fully Insulated Case with IP67 Level.
  • Cooling by Free Air Convection (Metal Housing)
  • No Load Consumption<0.5W at 230Vac.

Downloads

Technical Manual
