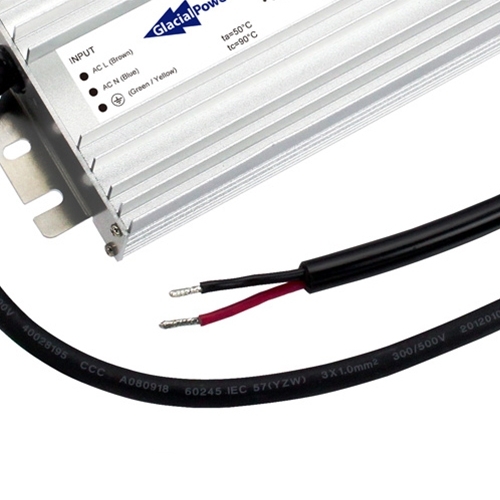

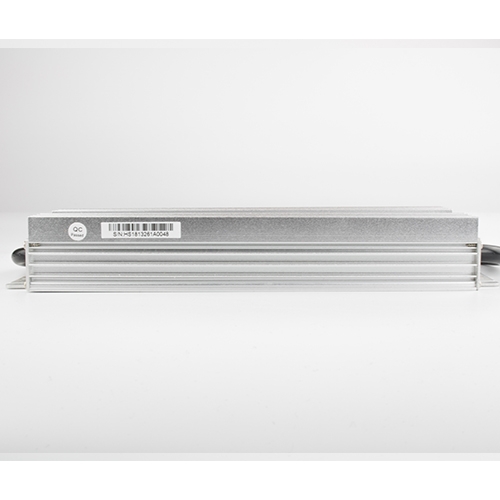

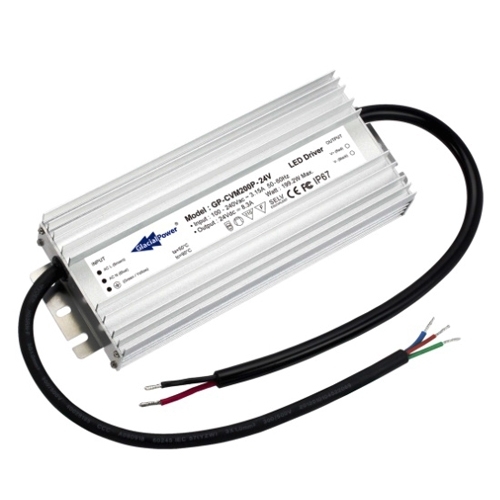

Glacial LED Driver 24V 200Watt. Constant Voltage

Ref: GP-CVM200P-24V

£56.50

Price inc VAT

IP67 Metal Enclosure, LED Power Supply, 200Watt, Suitable for LED Strip Lights 24V

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £54.81 Save 3%
12 Items £53.11 Save 6%
24 Items £51.98 Save 8%
Description
Specification
Description

GLACIAL LED Strip Light Power Supply. 200W

LED drivers are the most critical parts of a lighting system. The 200W is featuring outstanding capability to power loads in dusty, oily, high vibration and humid places. The aluminium housing is potted with head-conducted silicone , the combination of these cooling techniques enhance the thermal capability of the driver. It will work without any compromises from -30°C and +50°C under free air convection.

The GP-CVM200P series feature a fully isolated metal housing with aluminum material; it comes in an IP67-rated dust and waterproof enclosure suitable for outdoor as well as indoor use. The new series include the features of over current protection (OCP), short circuit protection (SCP), over temperature protection (OTP) and over voltage protection (OVP). These features protect the LED driver and lighting fixture to ensure a long lifespan.

Continious Electrification without Stops.

  • Total efficiency at full load 93%
  • Active power factor correction 0.98
  • Insulated case with IP67 protection
  • Free air convection
  • No load consumption less than 0.5W
  • Ideal power source for led strip and moving sign applications.
Dimensions


203.2 x80.3 x 33.5mm

Key Characteristics

  • Universal AC Input Range 90 ~ 264Vac.
  • Constant Voltage Operation.
  • Built‐in Active PFC Function.
  • Protections: OVP / OCP / SCP / OTP.
  • High Efficiency 92.5% ~ 93%.
  • Fully Insulated Case with IP67 Level.
  • Cooling by Free Air Convection (Metal Housing)
  • No Load Consumption<0.5W at 230Vac.

 Dimensions

Specification

The new range of CVM high power led drivers

The new aluminum housing of constant voltage GP-CVM IP67 series include GP-CVM200P (200W), GP-CVM300P (300W) and GP-CVM400P (400W). The advanced features of GP-CVM product family include high efficiency (92.5% ~ 94%), silent operation and light weight. The GP-CVM300P and GP-CVM400P support the CV of 24V, 36V and 48V models. The GP-CVM200P support the CV of 12V, 24V, 36V and 48V models. The GP-CVM product family can cover most of market demands especially for high power requirement of LED strip market.

It rated power output of 400W is available in 24V, 36V and 48V models. At full load these new drivers provide an outstanding active power factor correction which greater than 0.98 at 115Vac, and more than 0.94 at 230Vac. The GP-CVM400P delivers the excellent power efficiency up to 93% and has a very low no load consumption under 0.5 watt at 230Vac.
