Elite Solar 625W Bifacial Solar Panels Pallet of 36, N-Type Dual Glass 22.5kW
Ref: ET-NR66TBH625GL£3,890.00
Price inc VAT
| Bulk Savings £££ | ||
|---|---|---|
| # Items | Our Price | Savings |
| 6 Items | £3,773.30 | Save 3% |
| 12 Items | £3,656.60 | Save 6% |
| 24 Items | £3,578.80 | Save 8% |
Elite Solar 625W Bifacial N-Type Dual Glass Solar Panels, Pallet of 36, 22.5kW
A full pallet of 36 Elite Solar 625W bifacial dual glass solar panels, offering a combined front-side rated output of 22.5kW. These high-performance modules are designed for commercial, agricultural, industrial and large residential solar PV installations.
*** EXPECTED DELIVERY DATE MID-JUNE 2026 ***
- Full pallet of 36 x 625W Elite Solar panels
- Total front-side output of 22.5kW
- Advanced N-Type bifacial monocrystalline cells
- Dual glass construction for improved strength and long-term durability
- Rear-side power generation from reflected sunlight in suitable installations
- High module efficiency of up to 23.3%
- Excellent choice for commercial roofs, farms, ground mounts and large PV systems
- IP68 junction box for reliable outdoor operation
- Maximum system voltage of 1500V DC
- Long performance warranty for long-term confidence
Product Overview
The Elite Solar 625W bifacial dual glass solar panel is built for customers who need high power output, strong energy yield and dependable long-term performance. This pallet includes 36 solar modules, making it a practical bulk purchase for installers, developers, farms, commercial sites and larger solar PV projects.
Each panel uses advanced N-Type bifacial monocrystalline technology. The front side provides the main 625W rated output, while the rear side can also collect reflected light from suitable surfaces. This can help improve total energy production without increasing the number of panels installed.
The durable dual glass design protects the solar cells from moisture, UV exposure and environmental stress. Compared with standard backsheet panels, the glass-to-glass construction offers improved long-term protection and makes the module suitable for demanding outdoor applications.
Designed for Higher Energy Yield
Bifacial solar panels can generate additional energy from the rear side when installed in the right conditions. Reflective surfaces such as concrete, light-coloured roofing, gravel, sand or raised ground-mounted frames can improve rear-side sunlight collection.
Rear-side gain will vary depending on the installation angle, mounting height, ground reflectivity and shading. When correctly designed, bifacial panels can provide an excellent return for high-output solar PV systems.

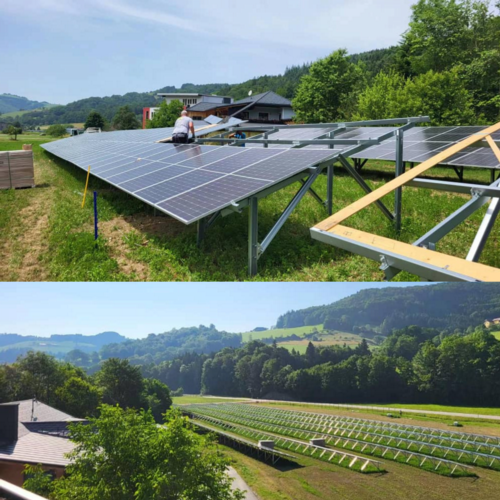

Suitable Applications
- Commercial rooftop solar systems
- Agricultural and farm solar installations
- Ground-mounted solar arrays
- Industrial buildings and warehouses
- Large residential solar PV systems
- Hybrid solar and battery storage projects
- Off-grid and grid-connected solar installations
- Solar farms and high-output energy projects
Why Choose This Pallet?
This pallet is ideal for customers who want a high-output solar panel package at excellent value. With 36 modules included, the pallet provides a total front-side rated power of 22.5kW, making it suitable for large installations where efficiency, reliability and long service life are important.
The combination of N-Type cells, bifacial energy generation, dual glass construction and high module efficiency makes this solar panel a strong option for professional PV installations.

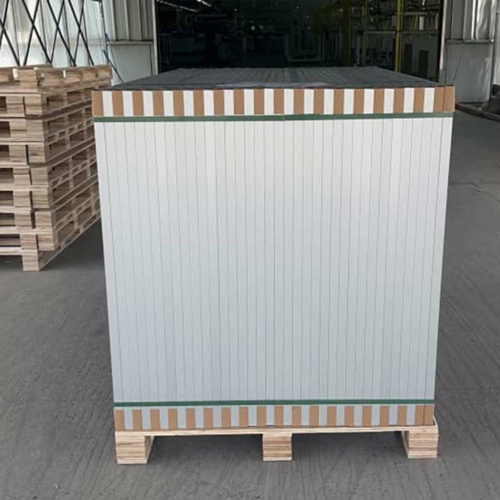

Delivery Information
This product is supplied as a full pallet of solar panels. Due to the size and weight of the modules, pallet delivery is required. Please make sure that suitable unloading arrangements are available at the delivery address before placing the order.
For commercial premises, farms, warehouses and construction sites, a forklift or suitable lifting equipment may be required for safe unloading.
Installation Notice
Solar PV systems must be designed and installed by a qualified person. Before installation, please check inverter compatibility, string voltage, current limits, cable sizing, mounting system suitability and all site conditions.
Rear-side energy gain from bifacial panels depends on ground reflectivity, installation angle, mounting height and shading conditions.
Buy With Confidence
- Supplied by a UK-based solar equipment specialist
- Suitable for professional installers and larger solar projects
- Traceable modules for warranty support
- Professionally packed pallet for safe handling and transport
- Excellent choice for high-output solar PV installations
Elite Solar 625W N-Type Bifacial Dual Glass Solar Panel Specifications
Electrical Specifications - 625W Model
| Specification | STC | NOCT |
|---|---|---|
| Module Type | ET-NR66TBH625GL | ET-NR66TBH625GL |
| Maximum Power - Pmax | 625W | 473W |
| Open Circuit Voltage - Voc | 49.30V | 46.93V |
| Short Circuit Current - Isc | 16.12A | 13.02A |
| Maximum Power Voltage - Vmp | 40.99V | 38.43V |
| Maximum Power Current - Imp | 15.25A | 12.32A |
| Module Efficiency | 23.1% | - |
Electrical Ratings and Temperature Coefficients
| Specification | Value |
|---|---|
| Power Tolerance | 0 to +3% |
| Pmax Temperature Coefficient | -0.30%/°C |
| Voc Temperature Coefficient | -0.22%/°C |
| Isc Temperature Coefficient | +0.042%/°C |
| Fire Performance | Type 29 UL |
| STC Conditions | AM1.5, 1000W/m², 25°C |
| NOCT Conditions | AM1.5, 800W/m², 20°C, 1m/s |
| Test Uncertainty for Pmax | ±3% |
Mechanical Specifications
| Specification | Value |
|---|---|
| External Dimensions | 2382 x 1134 x 30mm / 93.78 x 44.65 x 1.18 inch |
| Weight | 33kg / 72.75lbs |
| Solar Cells | N-Type mono-crystalline, 132 cells |
| Front Glass / Back Glass | 2.0mm / 2.0mm, 0.08 inch |
| Frame | Anodized aluminium alloy |
| Junction Box | IP68, 3 diodes |
| Cable Length Including Connector | 4.0mm², 12AWG, portrait 200mm positive / 400mm negative, or customised |
| Connector | CD2 / MC4 compatible |
| Power Bifaciality | 80% ±10% |
Application Conditions
| Specification | Value |
|---|---|
| Maximum System Voltage | 1500VDC |
| Maximum Series Fuse Rating | 30A |
| Operating Temperature | -40°C to +85°C |
| Nominal Operating Cell Temperature | 45 ±2°C |
| Maximum Mechanical Load | 5400Pa / 2400Pa |
Warranty and Performance
| Warranty / Performance Item | Value |
|---|---|
| Product Material and Workmanship Warranty | 12 years |
| Linear Power Output Warranty | 30 years |
| First Year Degradation | ≤1% |
| Annual Degradation From Year 2 to Year 30 | ≤0.40% per year |
Technology Features
| Feature | Description |
|---|---|
| SMBB Technology | Uses advanced technology to improve light trapping and current collection, helping to enhance module power output and reliability. |
| PID Resistance | Designed for excellent anti-PID performance through optimised mass production processes and material control. |
| Increased Power Output | Module power can increase approximately 5% to 25% from bifacial gain, depending on installation conditions. |
Manufacturer Rear Side Power Gain Reference
The data sheet rear side power gain table is printed for ET-NR66TBH620L. It is included below as a manufacturer reference only.
| Power Gain | 10% | 15% | 20% | 25% |
|---|---|---|---|---|
| Maximum Power - Pmax | 682W | 713W | 744W | 755W |
| Open Circuit Voltage - Voc | 49.10V | 49.10V | 49.10V | 49.10V |
| Short Circuit Current - Isc | 17.84A | 18.66A | 19.47A | 20.28A |
| Maximum Power Voltage - Vmp | 40.82V | 40.82V | 40.82V | 40.82V |
| Maximum Power Current - Imp | 16.71A | 17.47A | 18.23A | 18.99A |
Packaging Information
| Specification | Value |
|---|---|
| Container | 40ft HQ |
| Pieces Per Pallet | 36 panels |
| Packing Size | 2400 x 1130 x 1264mm / 94.49 x 44.49 x 49.76 inch |
| Packing Weight | 1231kg / 2713.89lbs |
| Pieces Per Container |
