Electric Vehicle (EV) Charger 7kW Single Phase Type 2. Sparky Wall Box
Ref: HM10132£450.00
Price inc VAT
| Bulk Savings £££ | ||
|---|---|---|
| # Items | Our Price | Savings |
| 6 Items | £436.50 | Save 3% |
| 12 Items | £423.00 | Save 6% |
| 24 Items | £414.00 | Save 8% |

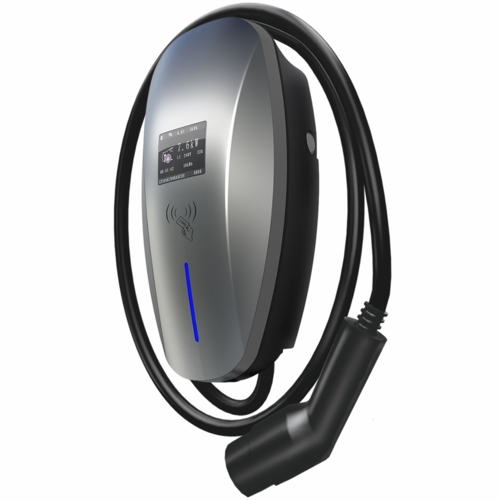

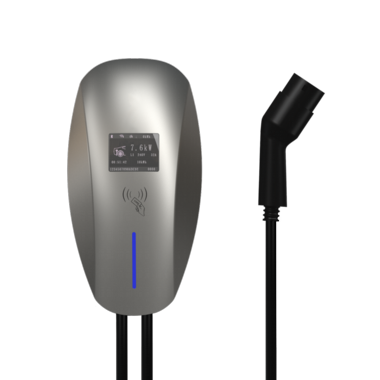

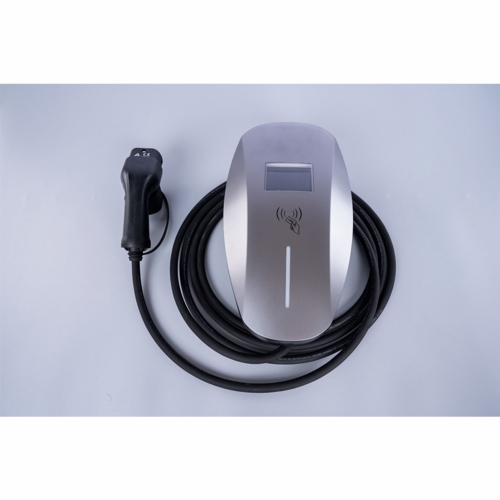

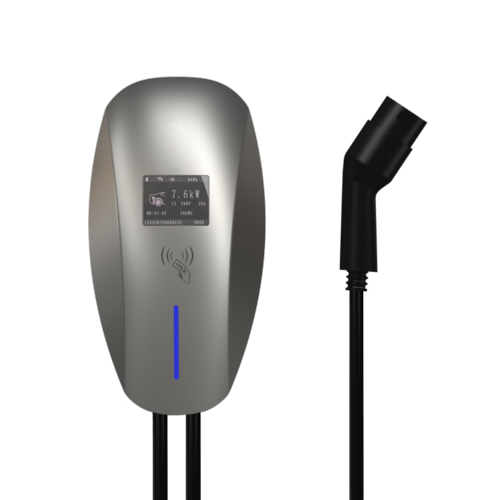

ELECTRIC VEHICLE CHARGER (EV) SPARKY 7kW
Meet Sparky, the new EV Charger that sparks a conversation with your car. Made by Voltacon — the brand revolutionizing independent power generation — Sparky is a safer, smarter and more sustainable EV charger. This quality EV charger has full certification in the UK and Europe.
Our charger has an IP65 patented design case for outdoor and indoor use.Monitors the electrical system and in the event of a fault automatically disconnects all poles including the earth conductor.
There is a 5-meter ac cable double insulated which is also rated for outdoor use.
Customizing all types of charging connectors makes it highly flexible and compatible with all-electric vehicles.
Key Features
- Complete unit
- Online monitoring
- Bluetooth and Wi-Fi connectivity
- LCD screen with real-time information about the state of the charge
- Historic energy data is accessible from a mobile app or directly from the wallbox display
- Complies with the latest BSI and 18th Edition IET wiring regulations
- Made for direct outdoor installation with IP65 housing and toughened plastic casing
- Compatible with all Type 2 vehicles
- Fitted with 5-meter cable
- Type A 30mA+6mA DC leakage protection
- 5-year warranty
| POWER SPECIFICATION | |
| Phase Number | 1-phase |
| Model | HM10132 |
| AC Power Input Rating | 230VAC, 50/60Hz |
| Power Wiring | 3 Wire - L1, N plus PE |
| AC Output Rating Power | 7kW |
| AC Output Rating Current | 32A |
| Connector Type | IEC 62196-2, Type 2 plug + 5m charging cable |
| Connector Mechanical Operating Life | >= 10000 times (Plug in & pull out with no load) |
| USER INTERFACE & CONTROL | |
| Charging Control | APP-controlled, Butto-controlled, Card-controlled |
| Display screen | 3.5-inch LCD screen (Optional) |
| Indicators | 1 LED Indicator with multiple colors ~Power/Charging/Fault/Network |
| Communication interface (Optional) | Wifi (2.4/5GHz) or Bluetooth |
| ENVIRONMENTAL | |
| Storage Temperature | -40 to 75ºC ambient |
| Operating Temperature | -30 to 55ºC ambient |
| Operating Humidity | Up to 95% non-condensing |
| Altitude | <= 2000m |
| PROTECTION | |
| IP Code | IP65 |
| Short Circuit Protection | Yes |
| Over Load Protection | Yes |
| Over Voltage Protection | Yes |
| Under Voltage Protection | Yes |
| Over-temp Protection | Yes |
| Leakage Protection | Yes, Type B Residual Current Monitoring Unit built-in |
| Ground Protection | Yes, designed for TN-C-S power supply system |

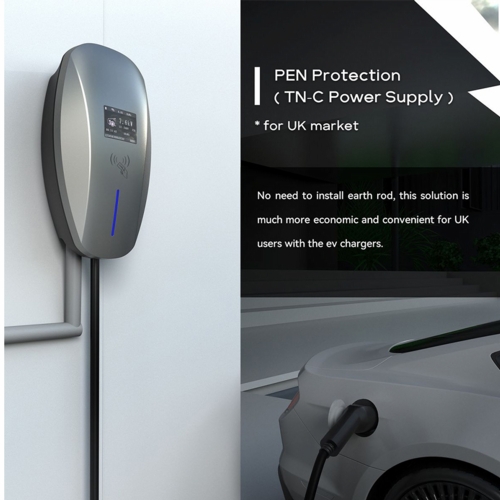

| No earth electrodes Protection | Optional, designed for the UK and other regions using TN-C power supply system |
| OPTIONAL FUNCTION | |
| Load balance via RS-485 | Work with RS-485 version M3 Charge-Mate (require additional purchase) |
| WALLBOX MECHANICAL | |
| Dimension (HxWxD, mm) | 400x210x145 |
| Weight | < 9Kg |
| Charging Cable Length (total) | 5m or customize length (<= 7.5m) An external Case B charging socket without charging cable is optional |
| Enclosure Material | PC |
| MOUNTING POEL MECHANICAL (Optional) | |
| Dimension (HxWxD, mm) | 1117x240x112 |
| Weight | < 5Kg |
| Enclosure Material | Stainless steel |
| OEM CUSTOMIZE OPTIONS | |
| Logo on Front panel | Yes |
| Nameplace | Yes |
| User manual | Yes |
| Length of charging cable | Yes |
