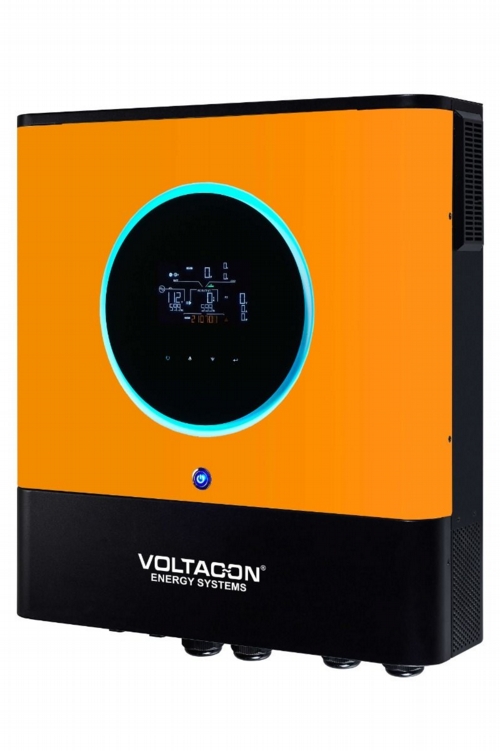

Conversol MAX-II Solar Off-Grid Inverter 8kW 48VDC 230VAC DUO MPPT 150A

Ref: 90914123

£1,050.00

Price inc VAT

Off-grid supply with ultra-fast MPPT Charger. Dual PV Input up to 8000W. Integrated AC Mains Charger Timer for Off-Peak Tariff.

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £1,018.50 Save 3%
12 Items £987.00 Save 6%
24 Items £966.00 Save 8%
Description
Specification
Description

Conversol 8kW-MAX-II Single Phase Parallel Expansion - Wi-Fi - Touch Screen

This inverter is classified as off-grid but it is suitable even if you are connected to a public grid (single or three-phase). Due to its simplicity, more solar enthusiasts prefer the 8kW inverter to supply their entire home with green energy from the sun. There is no need for complicated paperwork and long-term contracts with the DNO (grid operator). The off-grid inverters do not feed energy back to the grid and for that reason, you do not need a license to connect one or more to your property.

The inverter will only withdraw power from the grid like any other appliance.

Main Electrical and Functional Features

  • Detachable LCD control module with communication ports
  • Integrated Bluetooth for mobile monitoring (Android App available)
  • Wi-Fi module integrated for wireless communication over the internet (available in IOS/Android)
  • Supports USB "on-the-go" function
  • Reserved communication port for BMS - lithium-io
  • battery monitoring
  • Additional ports: RS485, CAN-BUS, or RS232
  • Internal timer for charging from the main specific hours
  • Supply load from Grid or PV if the battery is too low or unavailable
  • Configurable AC/PV output usage with timer. Prioritize the power source according to the hour and peak demand.
  • Selectable input voltage range for home appliances and computers
  • Auto restart while AC is recovering.
  • Cord start function

Specification

MAIN TECHNICAL FEATURES

  • Pure sine wave inverter
  • Customizable status LED ring with RGB lights
  • Touchable button with 5” colored LCD
  • Built-in Wi-Fi for mobile monitoring (APP is required)
  • Supports USB On-the-Go function
  • Built-in anti-dusk kit
  • Reserved communication ports for BMS (RS485, CAN-BUS, RS232)
  • Configurable input voltage ranges for home appliances and personal computers via LCD control panel
  • Configurable output usage timer and prioritization
  • Configurable charger source priority via LCD control panel
  • Configurable battery charging current based on applications via LCD control panel
  • Compatible to utility mains or generator power

TECHNICAL SPECIFICATIONS

MODEL Conversol MAX II 8000
RATED POWER 8000VA/8000W
PARALLEL CAPABILITY YES, 6 units
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 16000VA
Efficiency (Peak) 93%
Transfer Time 15 ms (For Personal Computers)
20 ms (For Home Appliances)
Waveform Pure sine wave
No Load Power Consumption < 75W
DC Voltage 12 VDC ± 5%, 100W
BATTERY
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 66 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Maximum PV Array Power 8000W (4000W x 2)
MPPT Range @ Operating Voltage 90 ~ 450 VDC
Maximum PV Array Open Circuit Voltage 500 VDC
Maxmum Solar Charge Current 150A
Maximum AC Charge Current 120A
Maximum Charge Current 150A
PHYSICAL

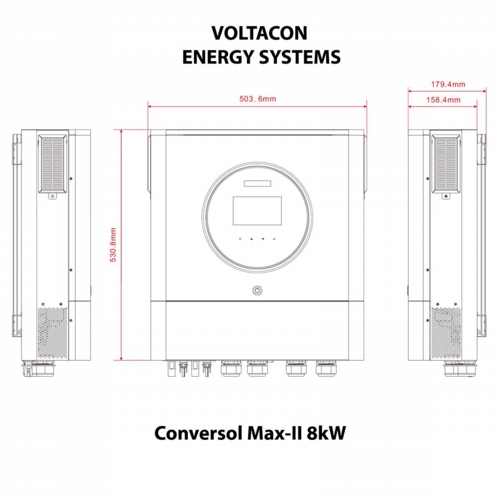

Dimension, D x W x H (mm) 158.4 x 503.6 x 530.8
Net Weight (kgs) 20
Communication Interface USB/RS232/RS485/WiFi/Dry-contact
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
STANDARD
Compliance Safety CE
