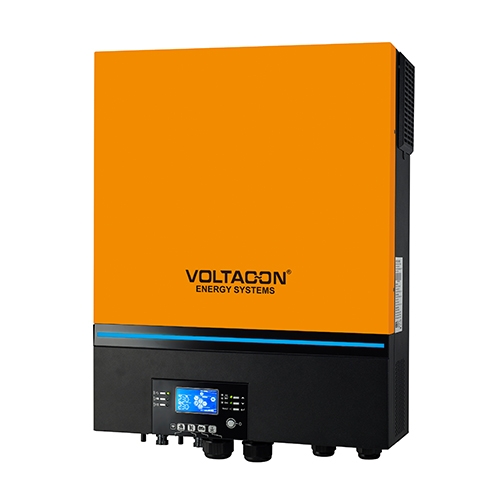

Conversol MAX Solar Off-Grid Inverter 8kW 48VDC 230VAC Pure Sinewave Dual MPPT

Ref: 90914123

£990.00

Price inc VAT

Bulk Savings £££
# Items	Our Price	Savings
6 Items	£960.30	Save 3%
12 Items	£930.60	Save 6%
24 Items	£910.80	Save 8%

Description

Specification

Downloads

Description

8kW/8kVA Solar Off Grid Inverter with 8kW MPPT PV-Charger

This inverter is classified as off-grid but it is suitable even if you are connected to a public grid (single or three-phase). Due to its simplicity, more solar enthusiasts prefer the 8kW inverter to supply their entire home with green energy from the sun. There is no need for complicated paperwork and long-term contracts with the DNO (grid operator). The off-grid inverters do not feed energy back to the grid and for that reason, you do not need a license to connect one or more to your property.

The inverter will only withdraw power from the grid like any other appliance.

Main Electrical and Functional Features

Detachable LCD control module with communication ports
Integrated Bluetooth for mobile monitoring (Android App available)
Wi-Fi module integrated for wireless communication over the internet (available in IOS/Android)
Supports USB "on-the-go" function
Reserved communication port for BMS - lithium-io
battery monitoring
Additional ports: RS485, CAN-BUS, or RS232
Internal timer for charging from the mains specific hours

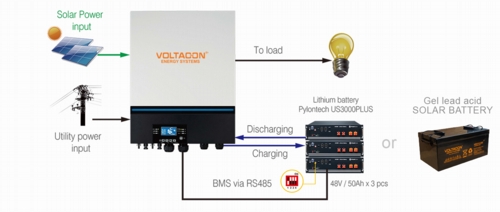

Supply load from Grid or PV if the battery is too low or unavailable
Configurable AC/PV output usage with timer. Prioritize the power source according to the hour and peak demand.
Selectable input voltage range for home appliances and computers
Auto restart while AC is recovering.
Cord start function

The inverter is fitted with a parallel communication card, for expanding up to 48kW (6 inverters) in a single and three-phase power system.

https://drive.google.com/drive/u/0/folders/1P9NwWb2gDLa1Xi5lF72pHBQ7VW-uId3R

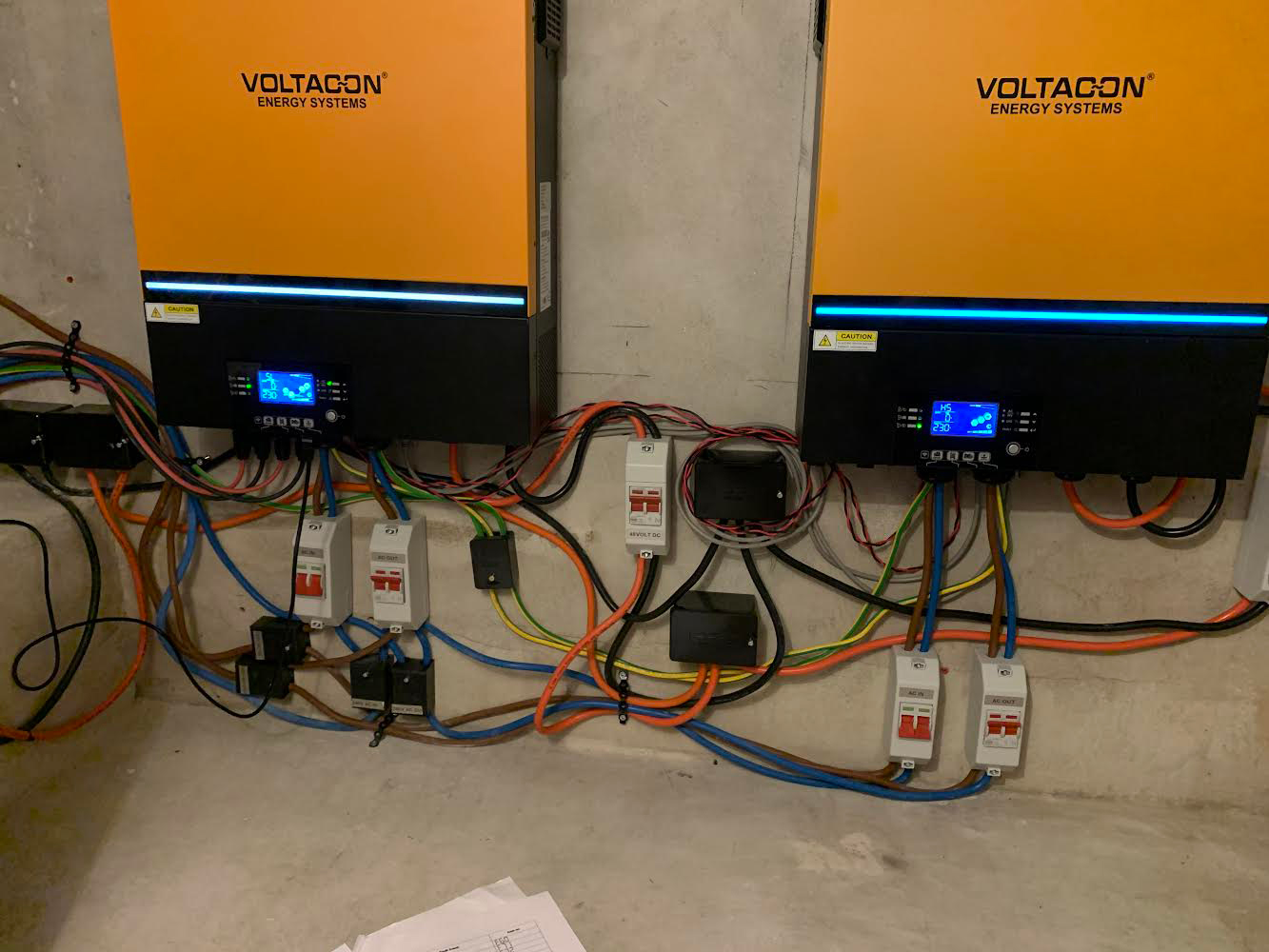

Project picture, single phase system with 2 inverters 8kW in parallel mode

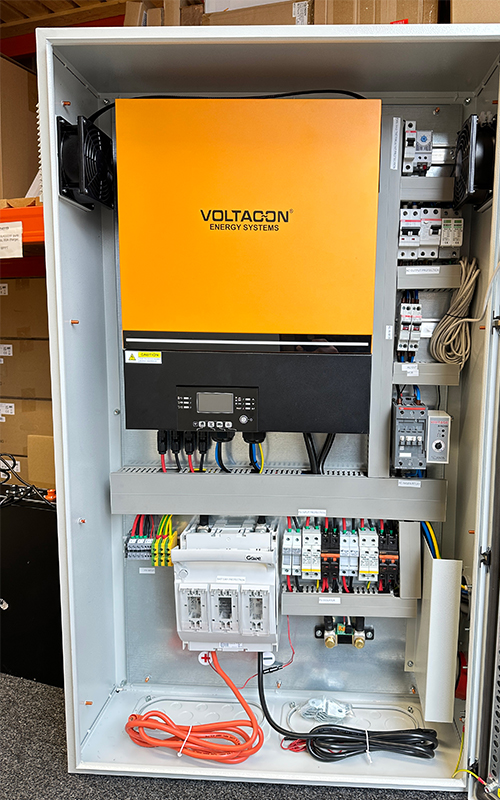

Conversol 8kW Max installed in an industrial metallic cabinet. Pre-wired system with Plug 'n' Play

Specification

PROPOSED CONFIGURATIONS WITH SOLAR PANELS.

The maximum number of strings for each MPPT input is 2. Two photovoltaic strings with voltage up to 500V feed energy to one MPPT input. A combiner box is compulsory for the safe connection of solar panels to the inverter.

2x 8 Solar panels for MPPT 1

2x 8 Solar Panels for MPPT 2

Alternative Combination

1x 8 Solar panel string for MPPT 1

1x 8 Solar panel string for MPPT 2

Up to 12 solar panels may be installed in series, please check the open circuit voltage of the PV string before connecting to the inverter. (should be less than 500V DC).

Asymmetrical solar strings are acceptable (i.e 8 panels in PV1 and 10 panels in PV2

SPECIFICATION TABLE

Conversol 8KVA MAX Inverter Specification

MODEL	Conversol 8kW Max
Rated Power	8000Watt / 800VA
INPUT
Voltage	120 VAC or 230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto-sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC ± 5%
Surge Power	15000VA
Efficiency (Peak)	90% - 93%
Transfer Time	10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	66 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power	8000 W (2x4000W)
MPPT Range @ Operating Voltage	90 VDC ~450 VDC
Maximum PV Array Open Circuit Voltage	450 VDC
Maximum Solar Charge Current	80 A
Maximum AC Charge Current	80 A
Maximum Charge Current	160A
Maximum Efficiency	98%
Standby Power Consumption	2W
PHYSICAL
Dimension, D X W X H (mm)	147.4 X 432.5 X 553.6
Net Weight (kgs)	18.4
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0℃ to 55℃
Storage Temperature	-15℃ to 60℃
