Conversol 3600Watt Off Grid Inverter MPPT Charger Wi-Fi

Ref: 0604947937100

£575.00

Price inc VAT

4th Generation of 24V MPPT Solar Inverter, 3.6kW AC output and high power solar panels up to 4000Watt

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £557.75 Save 3%
12 Items £540.50 Save 6%
24 Items £529.00 Save 8%
Description
Specification
Downloads
Description

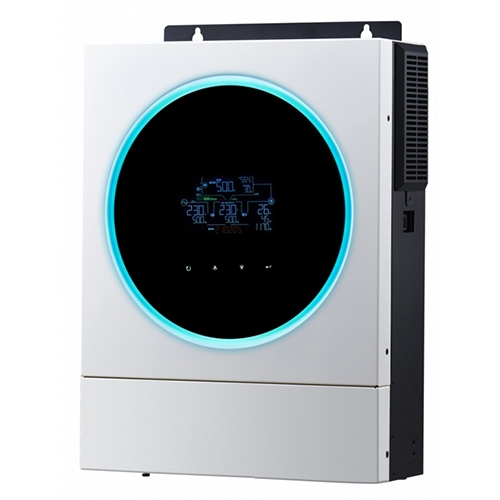

Solar Inverter for Off-Grid Applications with Grid/Generator Back - 3600Watt/230VAC

The first Conversol off grid inverter was introduced in 2011, since then we improve the design and performance of the 24Vdc battery-based inverter, and in 2022 we launched the most advanced version with a modern LED display with touch control. The VM-3.6kW-4 has a single MPPT charger that accepts a medium voltage string of solar panels up to 450V and power that can reach 4000Watt.

The converter is monitored free of charge using our WatchPower software which is available from Apple or Android stores. The Wi-Fi module is integrated, there is no need for additional hardware to be purchased

MAIN PRODUCT FEATURES

  • Customizable status LED ring with RGB lights
  • Touch screen button with large LCD 4.3''
  • Built-in Wi-Fi for mobile monitoring (Android/iOS)
  • Supports USB On the Go function
  • Data log events stored in the inverter
  • Reserved  communication port (RS4585, CANBus, RS232) for BMS
  • Battery equalization extends the lifecycle (set the function for automated or manual equalization).
  • Three-stage MPPT charging with new features
  • Built-in anti-dust filter.
Specification

Technical Specifications - Conversol VM 4 - 3600-24

Rated Power: 3600 VA/3600 W

Input

  • Voltage: 230VAC
  • Selectable Voltage Range: 170-280VAC (Computers); 90-280VAC (Home Appliances)
  • Frequency: 50 / 60 Hz

Output

  • AC Voltage Regulation (Battery Mode) 230VAC +/- 5%
  • Surge Power: 7200VA
  • Efficiency Peak: 90-93%
  • Transfer Time: 15ms computers, 20ms home appliances
  • Waveform: Pure Sine Wave

Battery

  • Battery voltage: 24Vdc
  • Floating Charge Voltage: 27Vdc
  • Overcharge Protection: 33Vdc

Solar Charger & AC Charger

  • MPPT Fast track
  • Maximum PV Array Open Circuit Voltage: 500Vdc
  • Max PV Array Power: 4000Watt
  • MPPT Range @ Operating Voltage: 120V-450VDC
  • Maximum Solar Charge Current: 120A
  • Maximum AC Charger Current: 100A
  • Maximum Charging Current: 120A

Dimensions

  • Dimensions D X W X H: 119 x 313.6 x 422.8 mm
  • Net weight: 10kg

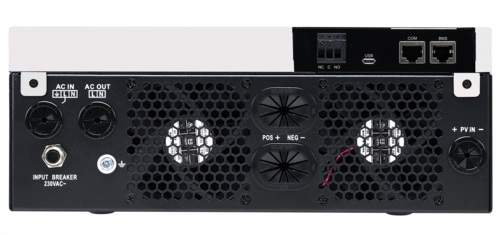

Communication ports: USB/RS232/RS485/WIFI/DRY CONTACT

Operating Environment

  • Operating Humidity: 5% to 95% Relative Humidity (non-condensing)
  • Operating Temperature: -10oC to 50oC
  • Storage Temperature: -15oC to 60oC



Downloads

Technical Manual

Conversol 3.6kW 24VDC/230VAC Technical Manual 2022

User's Manual Solar Inverter 4th generation off grid 3600Watt
