Cabinet with Pylontech US5000 Lithium Ion Batteries 19.2kWh
Ref: US5000-CBN£5,940.00
Price inc VAT
Bulk Savings £££ | ||
---|---|---|
# Items | Our Price | Savings |
6 Items | £5,761.80 | Save 3% |
12 Items | £5,583.60 | Save 6% |
24 Items | £5,464.80 | Save 8% |

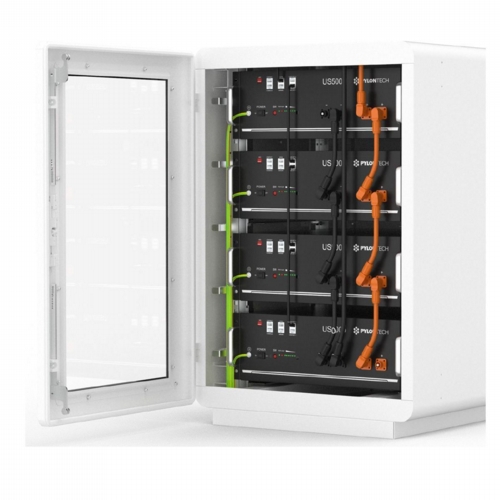

Energy Storage Cabinet with 4x Pylontech US5000 and Protection Fuses
The new Pylontech US5000 lithium battery offers easy expansion with vertical installation of 39kg consoles. Using server racks or mounting brackets, it takes only seconds to add more energy storage. Fully sealed and insulated units are safe to install in any place around the house or commercial property.
Despite the high capacity of 4.8kWh (at nominal voltage) and peak capacity up to 5.12kWh, the battery is flexible enough to be installed in any orientation (vertically or horizontally).

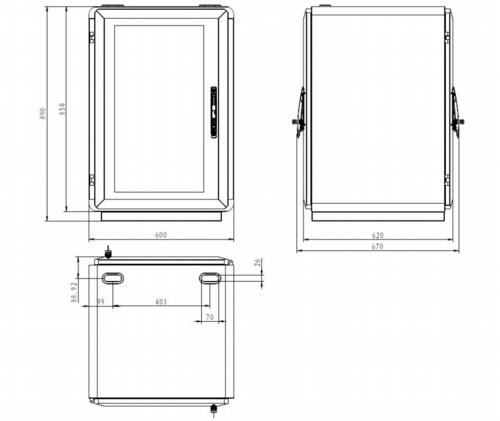

The actual stored capacity is 19.2kWh with the dimension nearly the size of an under-counter fridge.
Easy Expansion
If your energy demand increases, the other cabinets will be seamlessly integrated into the existing system. Starting from a 5th battery or up to 16 batteries without additional communication hardware.
Content of the cabinet
- 4x US5000 Batteries
- Cabinet

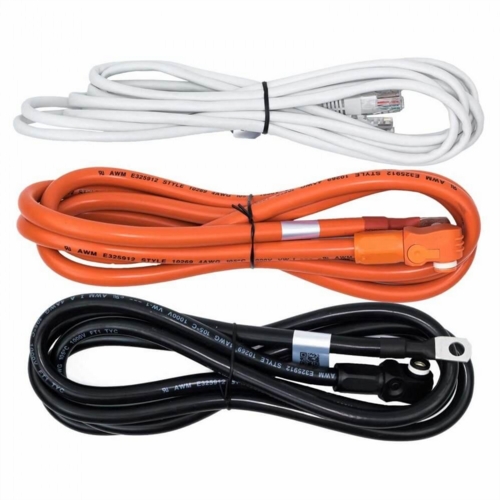

- 2 pairs of 2 meters battery cables

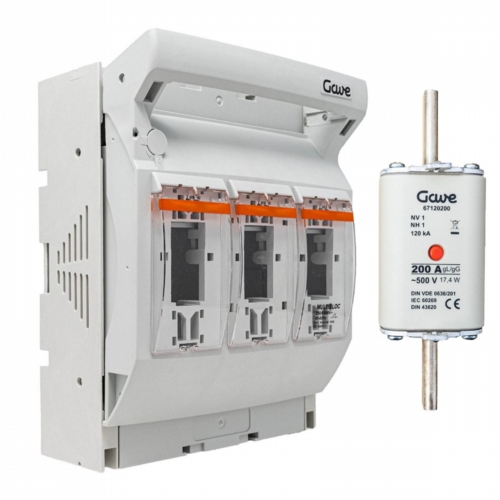

- Fuse disconnector 160A
- Short power cables from the fuse disconnector to your inverter/charger
Main features.
The battery communicates with the majority of well-known brands of solar inverters both hybrid and off-grid. The BMS system protects the battery and prolongs the life expectancy, the user is not required to set up manually the charging and discharging parameters or any cut-off voltage.

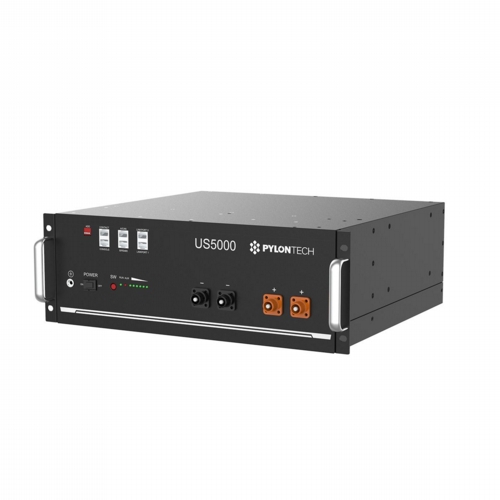

Battery Specifications - Per Module
Supplier Part No: US5000
- Weight: 39 kg
- Battery Type: Lithium Ion
- Nominal Energy: 4800 Wh
- Depth of discharge: 95.00 %
- Voltage: 48 V
- Continuous Discharge Rate (Normal Use): 2400 W
- Maximum Discharge Rate (5 Minutes): 4800 W
- Surge Discharge Rate (15 Seconds): 5808 W
- Maximum Charge Rate (5 Minutes): 4800 W
Key features
- Firmware upgrade remotely - internet connection required
- Up to 16 units per COM string, when using the LV Hub this can be up to 480 batteries!
- 80A charge and discharge rate, 100A @ 15min, 200A @ 15s
- Four levels of current protection - charging/discharging MOS, dual passive and active fuses and pre-charge circuit
- Modular design for ease of expansion
- Higher usable capacity resulting in fewer battery modules installed
- Usable capacity 4.56kWh
- Parallel Capability of up to 16 units
- Allows for a large installation of up to 72.96kWh with no LV Hub
- Intelligent BMS protecting battery cells
- 95% DoD with a more usable capacity
- RS485 and CAN compatible
- Comes with a 5-year warranty extendable
- 15 years life expectancy with over 8,000 cycles at 25oC ambient.
