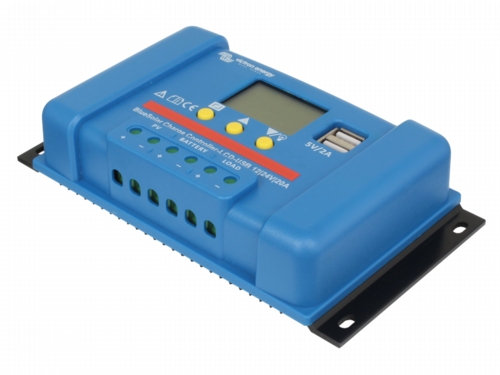

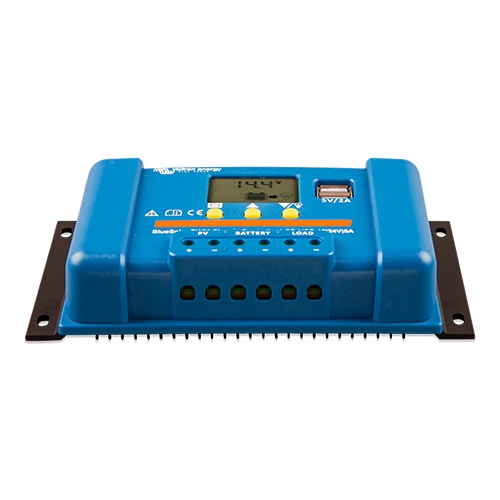

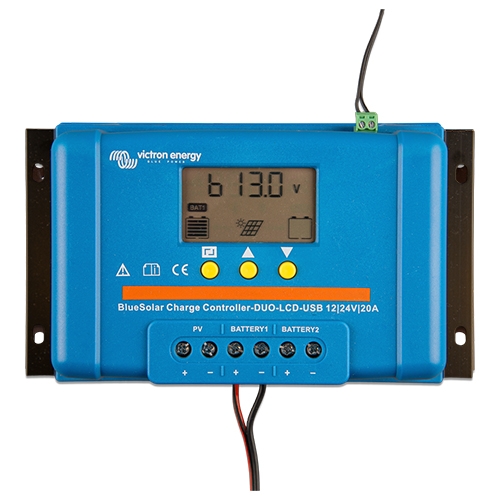

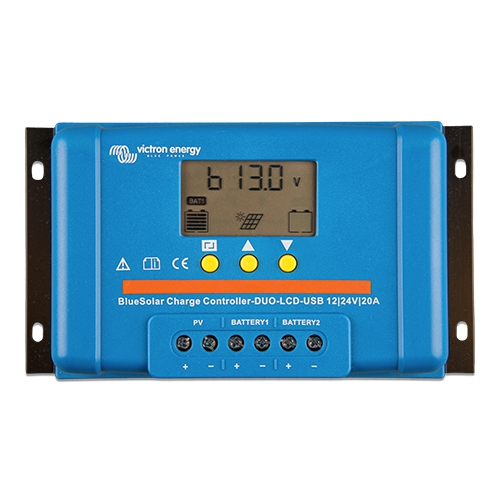

BlueSolar PWM Charge Controller 20A DUO LCD&USB

Ref: SCC010020060


Price inc VAT

Mini PWM Solar Charger for LiFePO4 and AGM Batteries.

Bulk Savings £££
# Items Our Price Savings
6 Items £64.02 Save 3%
12 Items £62.04 Save 6%
24 Items £60.72 Save 8%


Liquid crystal display. For status monitoring and set-up. External Temperature sensor included.

2 Separate Battery outputs. Charges two separate batteries. For example, the starter battery and the service battery of a boat or mobile home.

Protections. Protected against reverse polarity connection of the solar panels and/or battery
Programmable battery charge algorithm. Algorithms for AGM, GEL or Flooded lead-acid batteries
and LiFePO4 batteries (with internal BMS).


  • Liquid Crystal Display
  • Two 5 Volt USB outputs 2A combined
  • Lighting control function, fully programmable
  • Three stage battery charging (bulk, absorption, float), fully programmable
  • Load output with low voltage and manual disconnect (programmable)
  • Load output protected against overload and short circuit
  • Protected against reverse polarity connection of the solar panels and/or battery
  • Charges two separate batteries
  • Programmable charge current ratio
  • External Temperature sensor
  • GTIN code: 8719076046219
  • GTIN masterbox: 8719076046301
  • Country of origin: China
  • Intrastat statistical code: 85044060
  • USA statistical code: 8504.40.95-90
  • Net weight: 0.15
  • Gross weight: 0
  • Carton size:

Technical Manual

BlueSolar PWM-DUO LCD-USB 12/24-20

MANUAL BlueSolar PWM-DUO LCD-USB 12/24-20


BlueSolar PWM-DUO LCD-USB 12/24-20

Data Sheet BlueSolar PWM-DUO LCD-USB 12/24-20
