ATTICA LED LINEAR LIGHT 72Watt 150CM. Linked Lighting with Emergency

Ref: LDN-LG1437-S-EM

£95.00

Price inc VAT

Linear LED Fitting. 1437mm. Suspended or Surface Mounted with Emergency pack. Expandable up to 100 meters

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £92.15 Save 3%
12 Items £89.30 Save 6%
24 Items £87.40 Save 8%
Description
Specification
Downloads
Description

LED Linear Fitting 150cm - Surface Mount or Suspended - 72watt with Emergency pack - Linkable

The power rating of the 1437mm fitting is adjustable: 32-42-50-60 Wattage

Link up any space and flood it with light, thanks to the customizable, high lumen output of the Attica LED Linear Trunking System.

This innovative track light can be linked to cover small offices or long aisles in warehouses, grocery stores and more, up to several 100 meters in length.

With its cross-shape and L-shaped connectors, the unique linear trunking system helps you design any configuration. Link multiple tracks and expand your lighting configurations according to the dimensions of your room.

This flexibility, along with its powerful self-contained batter and two independent lighting circuits within the trunking, makes the Attica LED Linear Trunking System the preferred solution in an emergency situation.

Connected or apart, each Attica LED unit relies on the normal mains of a building and can automatically switch to an emergency supply in case of power failures. Use this smart feature to build a robust emergency procedure, ensuring safe evacuations.

The Attica LED Linear Trunking system also has a built-in dimming feature, with three specific settings and a switch. Its intelligent multi-sensor feature detects changes in light as well as movement, based on an integrated microwave sensor as well as a daylight sensor.

All-in-one or stand-alone, the Attica LED Linear Trunking system is a cost-effective and flexible solution for any industry or commercial application.

Get started and finished on your custom installation in minutes, designing a lighting system that works for your needs.

Features

  • Patented aluminum structure with heatsink
  • Internal LED Driver Xitanium made by Philips
  • Unlimited number of luminaires in series

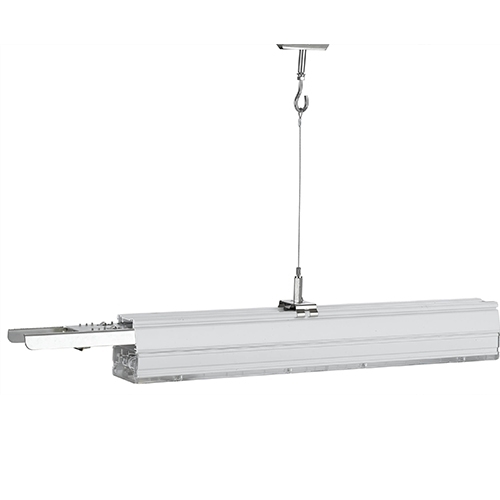

  • Surface mounting or suspended
  • It can be fitted with an emergency pack and NI-CD battery
  • The linear led fitting is ultra dimmable with most 1-10V and DALI dimming systems.



Other Technical Specifications and Accessories

The linear LED light fixture can be assembled with special control features such as 1-10V or DALI dimming. Please contact us to discuss your specific requirements. Voltacon offers customized solutions for customer success.

/live/pages/LED-LINEAR-FEATURES.jpg



Mechanical Dimensions

/live/pages/Untitled-5.jpg

Voltacon Led Linear Lighting System - new installation

Specification

Specification

Fitting:

LINEAR LED

SMD LED Chips on Board:

2835

Wattage (rated):

72 Watt

Color Rendering index:

>80

Voltage:

90-277Volt

Typical efficiency:

120lm/W

Line frequency:

50/60Hz

Beam Angle:

140deg

Average lifetime:

50,000 hours

Net Weight per piece

2.5kg

Color Temperature:



Number of LEDs

132

Warm white:

3000K - 2500LM

Height

1500x80x66mm

Natural white:

4000K - 2600LM

Dimmable

NO

Cool white:

5500K - 2700LM

Warranty:

5 years

Operating Temp:

-40 OC to 50 OC

Certification:

TUV, ROHS, CE, UL



Downloads

Technical Manual

LED Linear Trunking System - Installation Manual

LED Linear Trunking System - Installation Manual

Download

LED LINEAR TRUNKING SYSTEM

ATTICA LED LINEAR LIGHTS SPECIFICATIONS

Download
