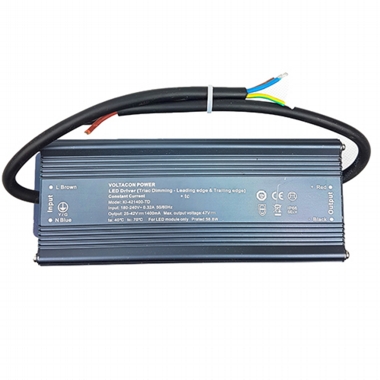

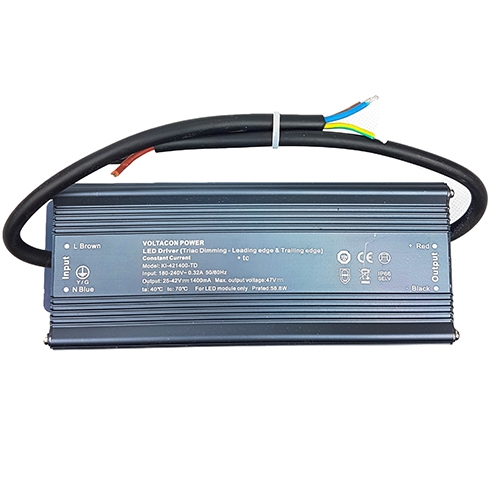

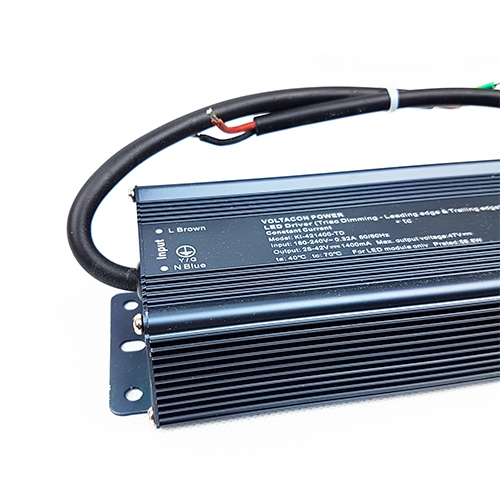

AC TRIAC LED Driver 58W. 140mA Constant Current

Ref: VOL-451060-TD


Price inc VAT

Constant Current 58W LED Driver with IP66 Protection. Mains Dimmable

Bulk Savings £££
# Items Our Price Savings
6 Items £29.00 Save 3%
12 Items £28.11 Save 6%
24 Items £27.51 Save 8%

Dimmable LED Driver. AC TRIAC. 58Watt. Constant Current

VOLTACON power supplies are made quality electronics using high efficiency power electronics topologies. The robust and slick aluminium housing offers full protection and easy istallation.  One side is connected directly to the mains voltage and the opposite side powers the LED arrays with DC voltage.

This product is certified by TUV, CE, EMC. It is safe to be used in indoor lighting applications.

Using active power factor correction, this power supply has 0.95 P.F and injecting almost zero reactive power back to your energy meter. The peak efficiency is 90% at full load.

Compatible with most dimmers

It is paramount to develope a driver that is widely acceptable in the LED lighting market. This LED driver is power from 180-240VAC voltage and works smoothly with almost all known trailing edge and leading edge switches.

This triac based power-supply has been successfully tested with Varilight Vcom and VPro, Lutron, Clipsal C-Bus System.

Constant Current Power Supply

The output voltage is 25-42Vdc with dc output current at 1400mA. Other versions are available on request

Product Feuatures

/media/blog/library/orange-led-tick.pngConstant current mode output with multiple levels selectable by dip switch

/media/blog/library/orange-led-tick.pngProtections: Short Circuit/ Over load/ Over Current

/media/blog/library/orange-led-tick.pngFull protection plastic housing easy installation

/media/blog/library/orange-led-tick.pngIP267 design for outdoor and indoor applications

/media/blog/library/orange-led-tick.pngCooling by free air convection

/media/blog/library/orange-led-tick.pngDimming function: Triac dimmable Phase cut dimmable

Mechanical Dimmensions

200 x 70 x 46mm

Weight : 0.9kg
