IP65 PIR Motion Sensor 12m High Bay | Hytronik HC049S

The Hytronik HC049S is a PIR motion sensor built for automatic lighting control in commercial, industrial and high bay LED installations. It carries an IP65 rating, offers 360° motion detection and can be fitted at mounting heights up to 12 metres, making it suited to warehouses, factories, workshops and larger commercial spaces.

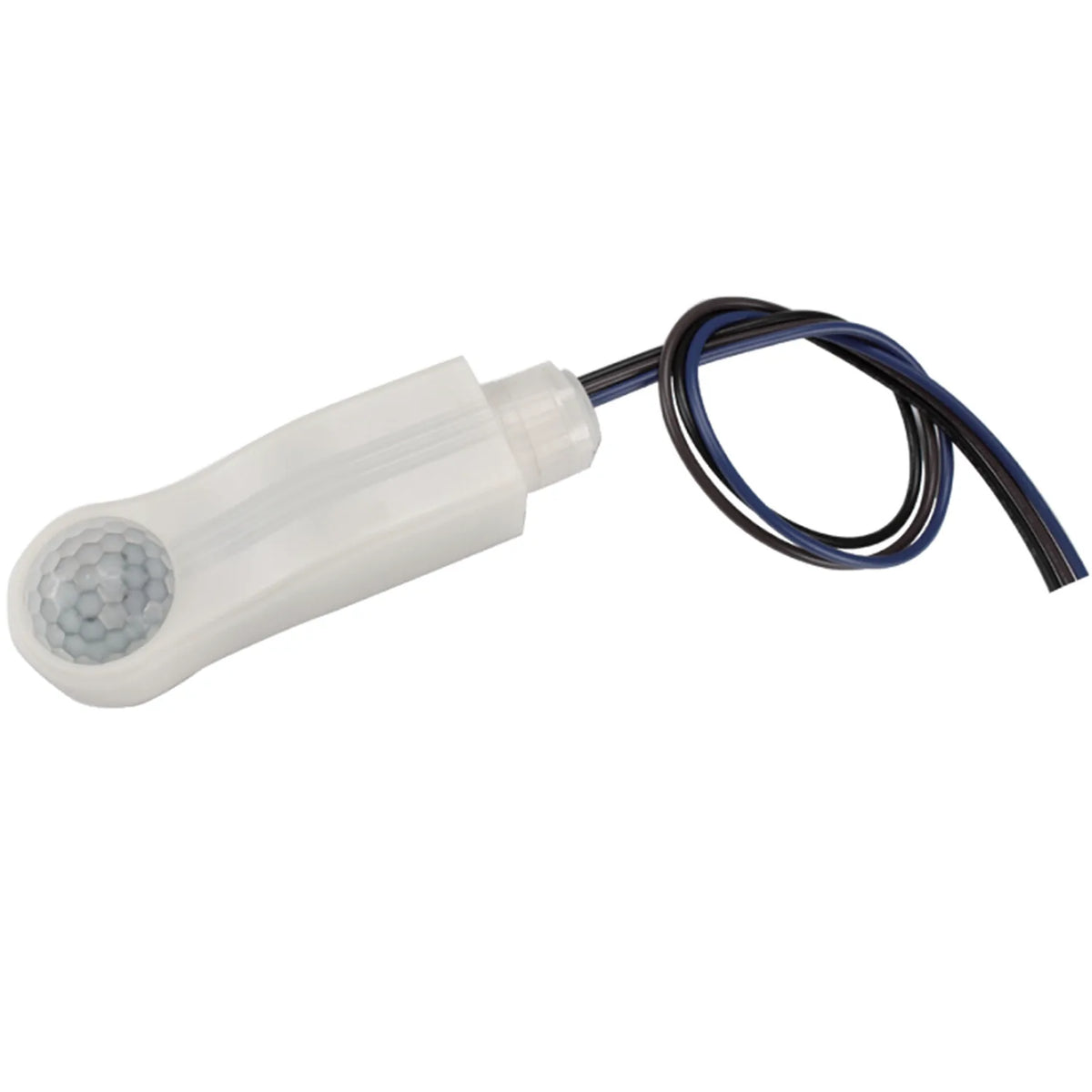

Hytronik HC049S PIR motion sensor for high bay lighting

The sensor uses passive infrared (PIR) technology to detect movement and switches connected LED luminaires on automatically. Once movement stops, the lights switch off after a selected hold-time, cutting unnecessary running hours on connected fittings. An integrated daylight sensor stops the lights switching on when enough natural light is already present.

Key features

• Detection technology, passive infrared (PIR), 360° coverage.
• IP65 rated, dust-tight and protected against water jets.
• Mounting height, up to 12 metres.
• Detection range, maximum specified range of 10 metres.
• Adjustable sensitivity, 10%, 30%, 50%, 75% or 100%.
• Adjustable hold-time, from 30 seconds up to 30 minutes, plus a 2-second test mode.
• Daylight threshold, selectable from 2, 10, 50, 100, 300 or 500 lux, or disabled.
• Standby power, less than 0.5W.
• Inrush current capability, up to 80A at 160 microseconds.
• Switching, zero-cross relay technology.

Where it's used

The HC049S suits high bay LED fittings and LED battens in warehouses, factories, workshops and other commercial premises where lighting does not need to run continuously. It mounts externally with an M20 threaded fitting onto compatible LED luminaires.

Warranty

Hytronik backs the HC049S with a 5-year manufacturer warranty, subject to Hytronik's warranty conditions.
