Elite Solar 625W Bifacial N-Type Dual Glass Solar Panel 23.3% Efficient
Ref: ET-NR66TBH625GL£159.00
Price inc VAT
| Bulk Savings £££ | ||
|---|---|---|
| # Items | Our Price | Savings |
| 6 Items | £154.23 | Save 3% |
| 12 Items | £149.46 | Save 6% |
| 24 Items | £146.28 | Save 8% |

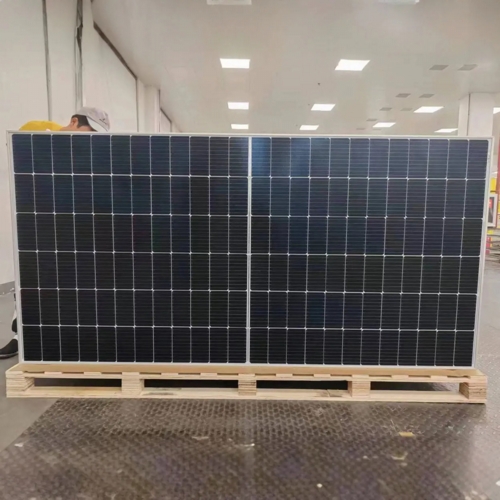

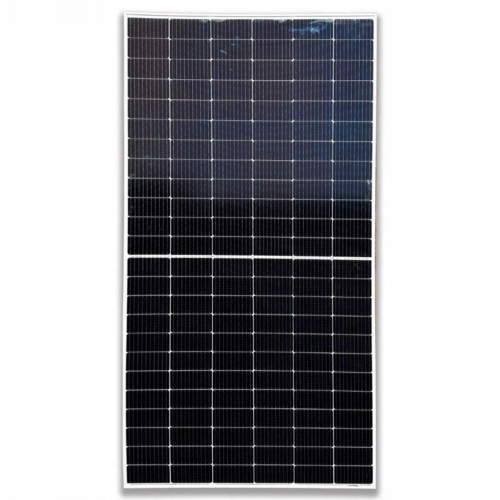

Elite Solar 625W Bifacial N-Type Dual Glass Solar Panel
The Elite Solar 625W bifacial N-Type dual glass solar panel is designed for high-output solar PV systems where strong performance, long service life and reliable energy generation are essential. It is an excellent choice for commercial rooftops, farms, warehouses, ground-mounted systems, flat roofs and larger domestic solar installations.
With advanced N-Type bifacial technology, the panel generates power from the front side and can also collect reflected sunlight from the rear side in suitable installation conditions. This makes it especially useful for ground-mounted systems, light-coloured surfaces and elevated structures where rear-side gain can improve total energy yield.
Key Features
- 625W high power output for large solar PV systems
- N-Type bifacial solar cell technology for improved energy generation
- 23.3% module efficiency for strong performance per square metre
- Dual glass construction with 2.0mm front and rear glass
- Rear-side energy gain from reflected sunlight in suitable locations
- Strong mechanical design for professional outdoor solar installations
- 12-year product warranty for material and workmanship
- 30-year linear power output warranty for long-term confidence
Designed for Professional Solar Projects
This 625W module is a strong option for installers, developers and system owners who need high power from fewer panels. The large-format design helps reduce the number of modules required on suitable projects, which can support faster installation and reduce the balance of system cost when planned correctly.

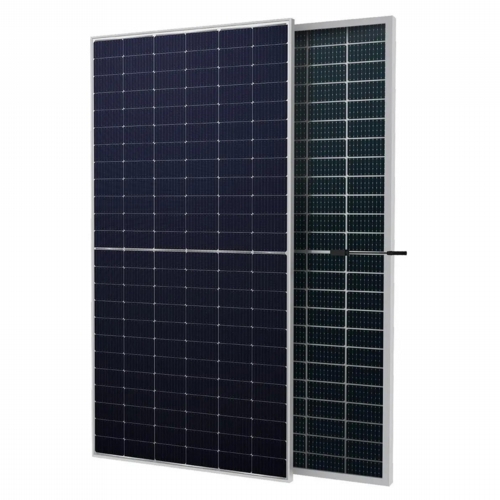

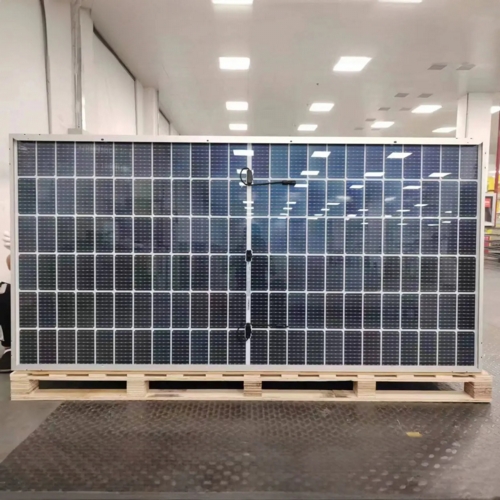

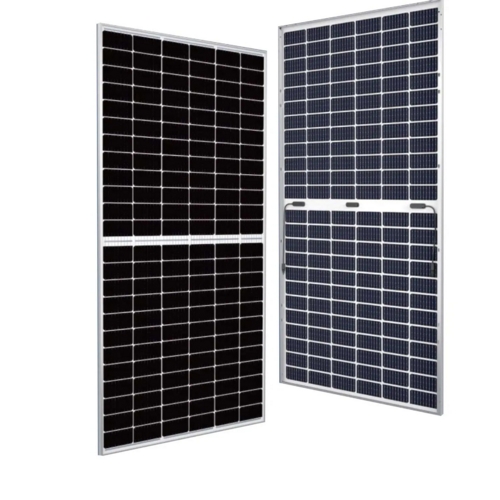

Bifacial Energy Generation
Unlike a standard single-sided solar panel, this bifacial module can make use of sunlight from both sides. The rear side can collect light reflected from the surface below the panel, helping increase total generation depending on installation height, angle, spacing and ground reflectivity.
Dual Glass Durability
The dual glass structure protects the solar cells from both sides and gives the panel improved long-term durability compared with conventional backsheet modules. This makes it suitable for demanding outdoor environments such as farms, commercial buildings, industrial roofs and ground-mounted arrays.
Ideal Applications
- Commercial rooftop solar PV systems
- Agricultural buildings and farms
- Ground-mounted solar arrays
- Warehouses and industrial units
- Flat roof solar installations
- Large residential solar projects
- Hybrid solar and battery storage systems
- Off-grid and backup power projects
Delivery and Collection Information
Due to the large size and weight of this solar panel, delivery is normally arranged on a pallet for safe transport. Collection is available for any quantity.
Why Buy This Panel?
This Elite Solar 625W module is built for buyers who want a powerful, efficient and durable solar panel for serious PV installations. The combination of N-Type cells, bifacial generation and dual glass construction makes it a strong choice for long-term solar energy projects.
Important Installation Note
Solar PV systems must be designed and installed by a qualified professional. Before installation, please confirm string voltage, inverter compatibility, mounting method, cable sizing and site conditions.
Elite Solar 625W N-Type Bifacial Dual Glass Solar Panel Specifications
Electrical Specifications - 625W Model
| Specification | STC | NOCT |
|---|---|---|
| Module Type | ET-NR66TBH625GL | ET-NR66TBH625GL |
| Maximum Power - Pmax | 625W | 473W |
| Open Circuit Voltage - Voc | 49.30V | 46.93V |
| Short Circuit Current - Isc | 16.12A | 13.02A |
| Maximum Power Voltage - Vmp | 40.99V | 38.43V |
| Maximum Power Current - Imp | 15.25A | 12.32A |
| Module Efficiency | 23.1% | - |
Electrical Ratings and Temperature Coefficients
| Specification | Value |
|---|---|
| Power Tolerance | 0 to +3% |
| Pmax Temperature Coefficient | -0.30%/°C |
| Voc Temperature Coefficient | -0.22%/°C |
| Isc Temperature Coefficient | +0.042%/°C |
| Fire Performance | Type 29 UL |
| STC Conditions | AM1.5, 1000W/m², 25°C |
| NOCT Conditions | AM1.5, 800W/m², 20°C, 1m/s |
| Test Uncertainty for Pmax | ±3% |
Mechanical Specifications
| Specification | Value |
|---|---|
| External Dimensions | 2382 x 1134 x 30mm / 93.78 x 44.65 x 1.18 inch |
| Weight | 33kg / 72.75lbs |
| Solar Cells | N-Type mono-crystalline, 132 cells |
| Front Glass / Back Glass | 2.0mm / 2.0mm, 0.08 inch |
| Frame | Anodized aluminium alloy |
| Junction Box | IP68, 3 diodes |
| Cable Length Including Connector | 4.0mm², 12AWG, portrait 200mm positive / 400mm negative, or customised |
| Connector | CD2 / MC4 compatible |
| Power Bifaciality | 80% ±10% |
Application Conditions
| Specification | Value |
|---|---|
| Maximum System Voltage | 1500VDC |
| Maximum Series Fuse Rating | 30A |
| Operating Temperature | -40°C to +85°C |
| Nominal Operating Cell Temperature | 45 ±2°C |
| Maximum Mechanical Load | 5400Pa / 2400Pa |
Warranty and Performance
| Warranty / Performance Item | Value |
|---|---|
| Product Material and Workmanship Warranty | 12 years |
| Linear Power Output Warranty | 30 years |
| First Year Degradation | ≤1% |
| Annual Degradation From Year 2 to Year 30 | ≤0.40% per year |
Technology Features
| Feature | Description |
|---|---|
| SMBB Technology | Uses advanced technology to improve light trapping and current collection, helping to enhance module power output and reliability. |
| PID Resistance | Designed for excellent anti-PID performance through optimised mass production processes and material control. |
| Increased Power Output | Module power can increase approximately 5% to 25% from bifacial gain, depending on installation conditions. |
Manufacturer Rear Side Power Gain Reference
The data sheet rear side power gain table is printed for ET-NR66TBH620L. It is included below as a manufacturer reference only.
| Power Gain | 10% | 15% | 20% | 25% |
|---|---|---|---|---|
| Maximum Power - Pmax | 682W | 713W | 744W | 755W |
| Open Circuit Voltage - Voc | 49.10V | 49.10V | 49.10V | 49.10V |
| Short Circuit Current - Isc | 17.84A | 18.66A | 19.47A | 20.28A |
| Maximum Power Voltage - Vmp | 40.82V | 40.82V | 40.82V | 40.82V |
| Maximum Power Current - Imp | 16.71A | 17.47A | 18.23A | 18.99A |
Packaging Information
| Specification | Value |
|---|---|
| Container | 40ft HQ |
| Pieces Per Pallet | 36 panels |
| Packing Size | 2400 x 1130 x 1264mm / 94.49 x 44.49 x 49.76 inch |
| Packing Weight | 1231kg / 2713.89lbs |
| Pieces Per Container |
